2.Disassembly
4. Disconnect cables - from the mainboard.
5. Carefully lift the top case up from the bottom case (a cable may still be attached to a Bluetooth modem at
point , and instructions for removing the module are on the following page).
1
7
8 9
10

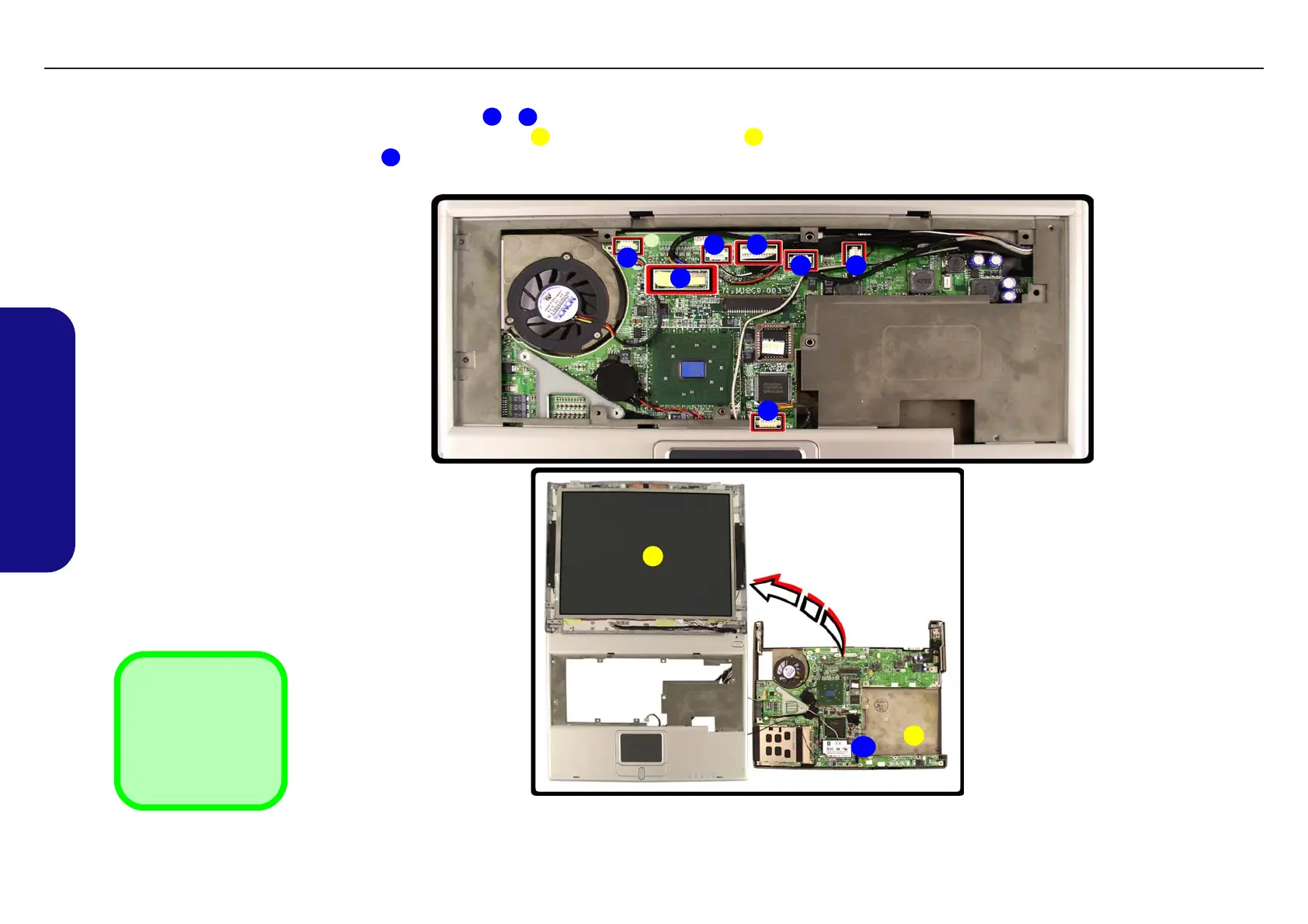

Figure 2 - 12
Separating the Top
& Bottom Cases
(cont’d)
a. Disconnect the cables
from the mainboard.
b. Separate the top case
from the bottom case (be
careful if you have a
Bluetooth modem, as a
cable will still be at-
tached).

8. Top Case
9. Bottom Case
1
2
7
10
43
5 6
a.
b.
8
9
