To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the dryer(s) before servicing.
• Close gas shut-off valve to gas dryer(s) before servicing.
• Never start the dryer(s) with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the dryer is properly grounded.
W001R1
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Section 4
Grounding

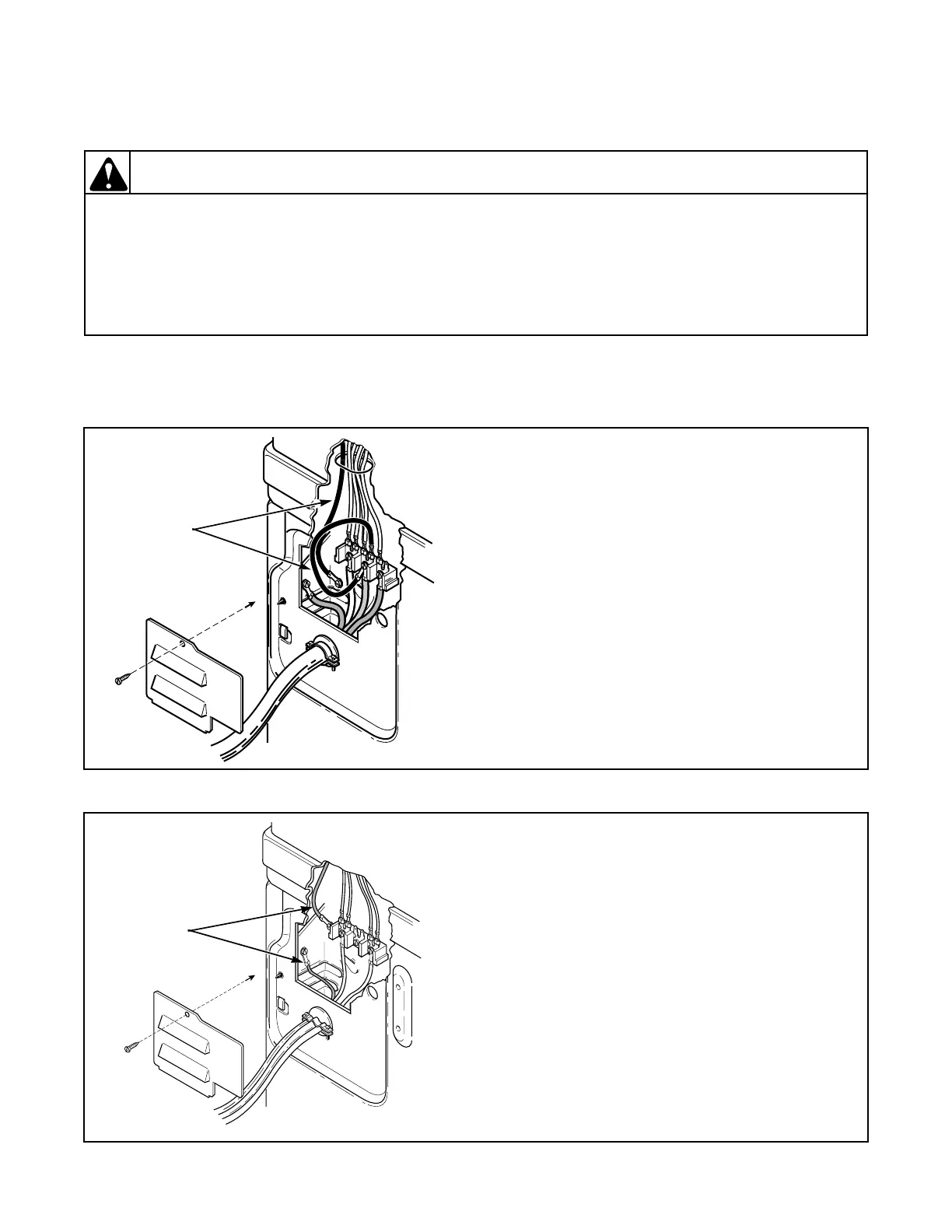

15. GROUND WIRES FROM TERMINAL BLOCK OR POWER CORD TO REAR BULKHEAD AND
FROM REAR BULKHEAD TO CONTROL HOUSING
(Figures 2 and 3)
Figure 2
Figure 3
D442S
GROUND
WIRES
Models:
HDE007*F1702,
HDE107*F1502
HDE107*F1702
HDE107*G3003
HDE507*F1502
HDE507*F1702
HDE707*F1502
HDE707*F1702
HDEB07*J1502
HDEB07*J1702
HDEF07*J1502
HDEF07*1702
HDG009*F1102
HDG109*F1102
HDG509*F1102
HDG709*F1102
HDGB09*J1102
HDGF09*J1102
SDE007*F1500
SDE107*F1500
SDE107*F1724
SDE307*F1500
SDE407*F1500
SDE507*F1500
SDE607*F1500
SDE707*F1500
SDEA07*J1500
SDEB07*J1500
SDEF07*J1500
SDG109*F1124
UDE007*F3000
UDG009*F3000
* Add Letter To Designate Color. L – Almond W – White
D443S
GROUND
WIRES
Models:
HDE007*G3003
HDE007*F3000
HDE107*F3000
HDG009*G3008
HDG009*F3000
HDG109*F3000
SDE007*F3000
SDE107*F3000
SDE107*F5412
SDE407*F3000
SDEA07*J3000
SDEA07*J4350
SDG009*F3000
SDG109*F3000
SDG109*F5412
SDG409*F3000
SDE007*F4350
SDE107*F4350
SDE407*F4350
SDG009*F3058
SDG109*F3058
SDG409*F3058
HDE007*G3008
HDE007*G3010
HDE107*G3018
HDG109*G3013
SDE007*G3018
SDE107*G3018
SDG109*G3013
* Add Letter To Designate Color. L – Almond W – White
