Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the dryer(s) before servicing.
• Close gas shut-off valve to gas dryer(s) before servicing.
• Never start the dryer(s) with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the dryer is properly grounded.
W001R1
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
40. DOOR HINGES
(Figure 38)
a. Open loading door and, while supporting door,
remove four screws holding door assembly to
hinges.
b. Remove four screws holding hinges to front
panel.
41. HOLD-DOWN CLIPS AND LOCATORS
a. While supporting the access panel, remove two
screws from bottom edge of access panel. Refer
to Figure 7.
b. Gently lower the access panel to disengage
locators from bottom edge of front panel. Refer
to Figure 37.
c. Remove two screws holding bottom tabs on
front panel to dryer side panels. Swing bottom
edge of front panel away from dryer far enough
to disengage hold-down clips and locators from
cabinet top.
d. Disconnect wires from door switch. Refer to
Figure 35.
NOTE: Refer to wiring diagram when rewiring
switch.
e. Compress hold-down clips and remove from
top of access panel or front panel.
f. Remove screws holding locators to access
panel and front panel.

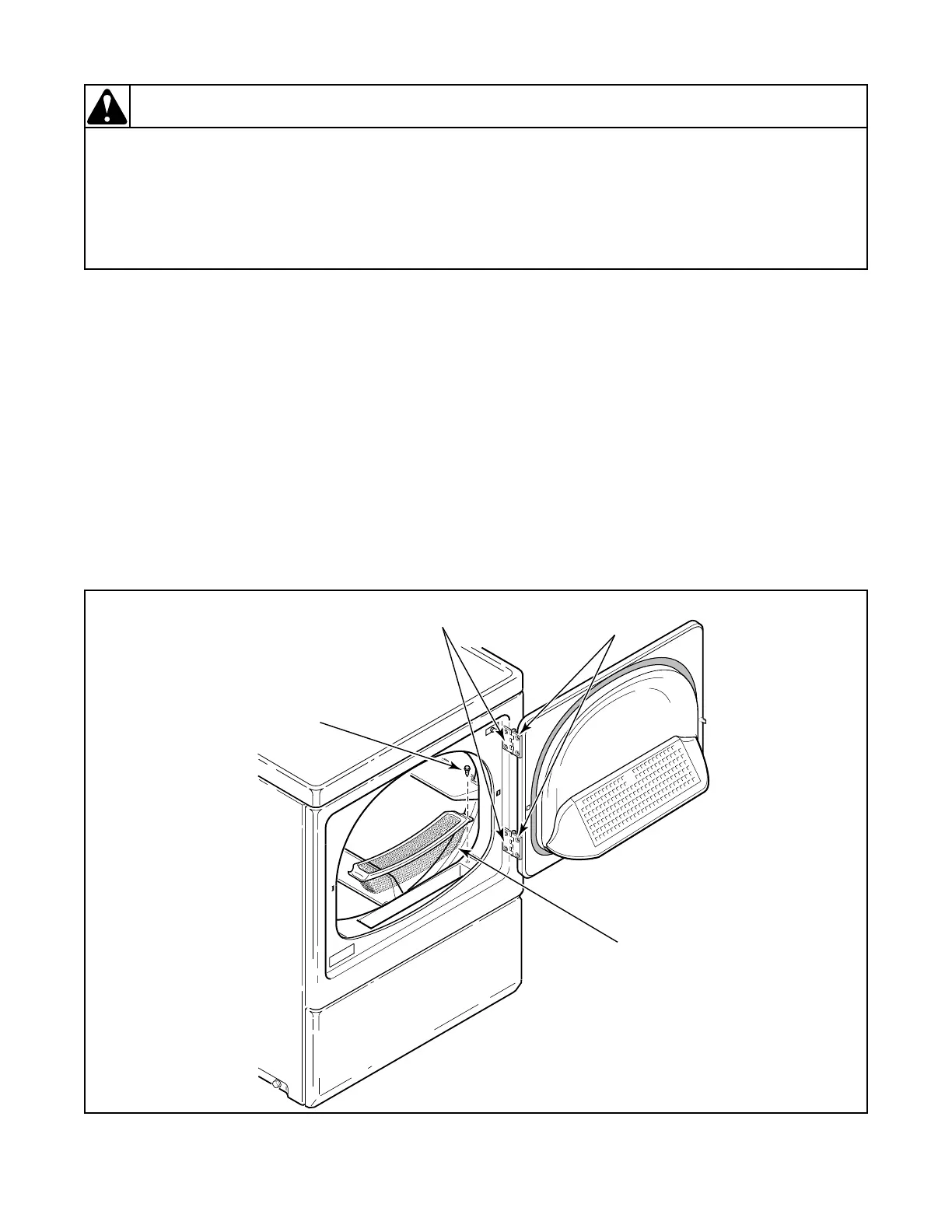

Figure 38
LINT FILTER
ATTACHING
SCREW
D306SE3B
DOOR
HINGES
DOOR
ATTACHING
SCREWS
LINT
FILTER
