Section 5 Service Procedures
To reduce the risk of electric shock, fire, explosion, serious injury or death:
• Disconnect electric power to the dryer(s) before servicing.
• Close gas shut-off valve to gas dryer(s) before servicing.
• Never start the dryer(s) with any guards/panels removed.
• Whenever ground wires are removed during servicing, these ground wires must be
reconnected to ensure that the dryer is properly grounded.
W001R1
WARNING
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

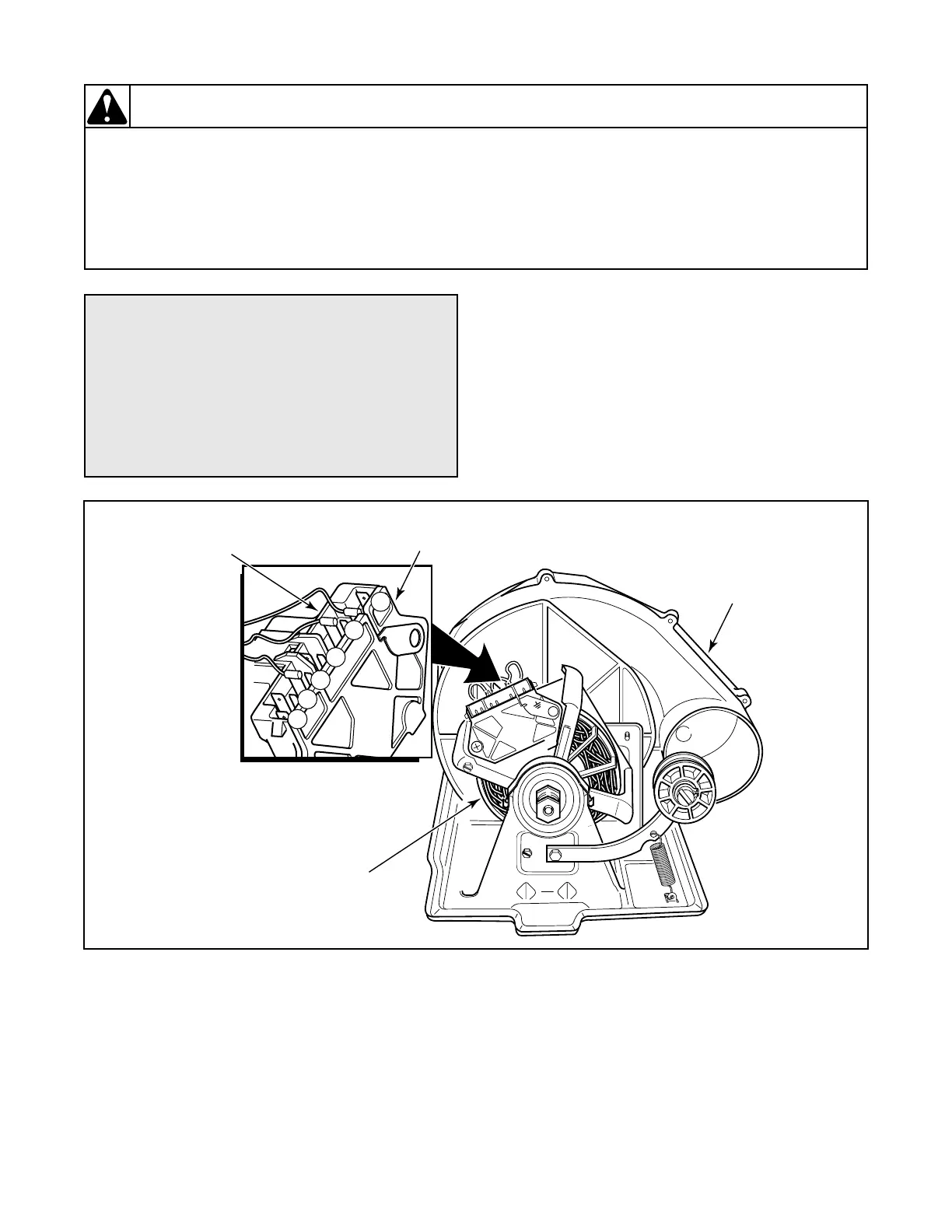

To Test Drive Motor
(Figure 52)
1. Remove motor and exhaust assembly.
2. Disconnect motor wire harness at motor
disconnect block.
NOTE: Refer to appropriate wiring diagram
when rewiring motor switch.
Figure 52
26 43 5 1
G
DRIVE
MOTOR
MOTOR AND
EXHAUST
ASSEMBLY
D326SE3A
1
2
4
6
5
3
MOTOR
DISCONNECT
BLOCK
MOTOR
SWITCH
