Section 5 Service Procedures
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Reversing Door Procedure . . .

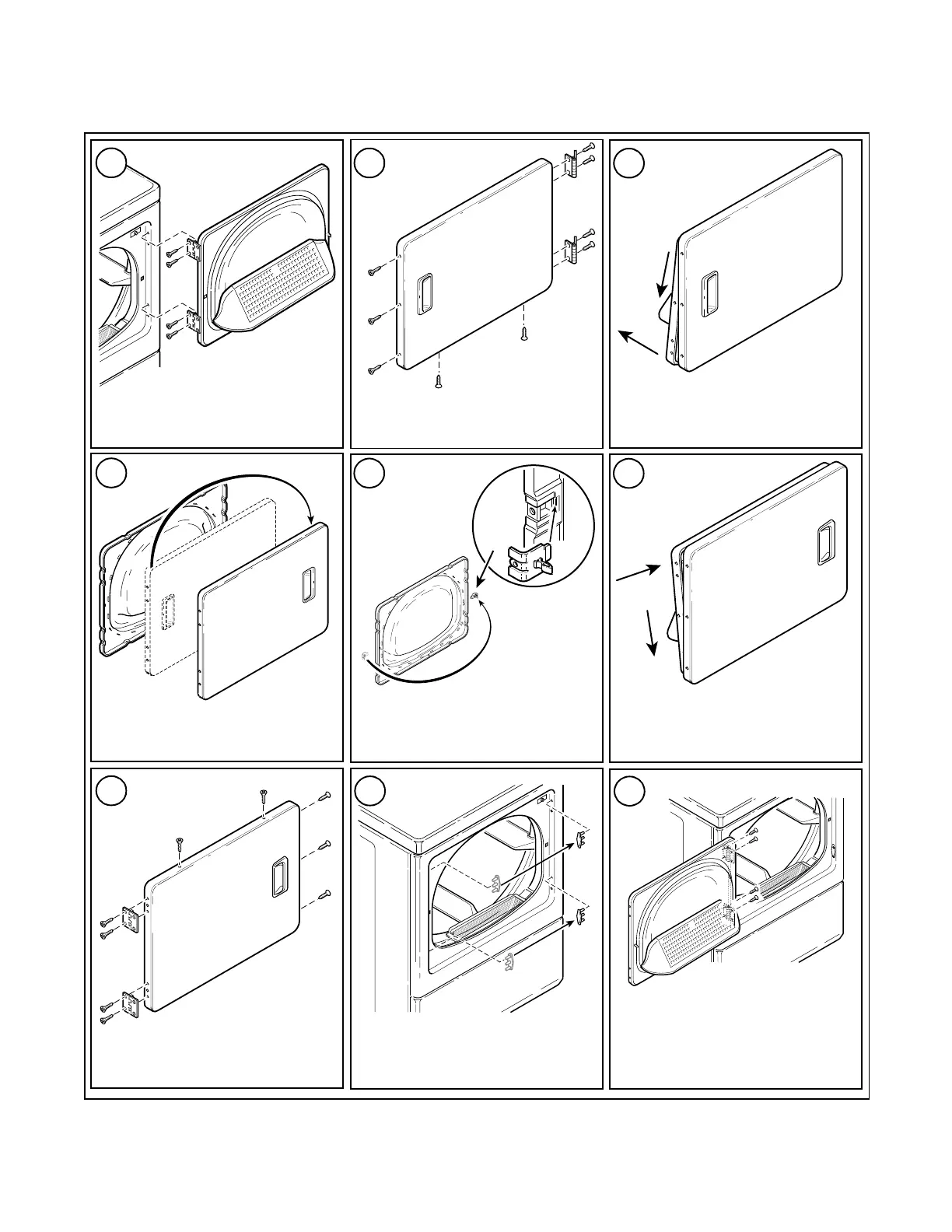

The door on this dryer is completely reversible. To reverse door proceed as follows:
Figure 33
D318S
D316S
D310S
D311S
D317S
D315S
A
B
D314S
D313S
B
A
D312S
7
8
9
1
2
3
4
5
6
Remove all nine screws.
Pull bottom of door liner out, then
pull down, removing door liner
from door panel.
Remove four hinge attaching
screws.
Remove door strike from door liner
and reinstall on opposite side.
Insert liner under flange on bottom
of door, then push top of door liner
into place.
Rotate door panel 180 degrees as
shown.
Using a screwdriver, remove two
door plugs, and reinstall on opposite
side of door opening.
Reinstall four hinge attaching
screws removed in Step 1.
Reinstall nine screws removed in
Step 2.
