ProMinent delta User Manual

6.1 Overview of device / operating elements
Contents of the LCD display
The content of the LCD display can vary depending on
the Identcode of the delta
®
solenoid metering pump.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
A0311
16
17

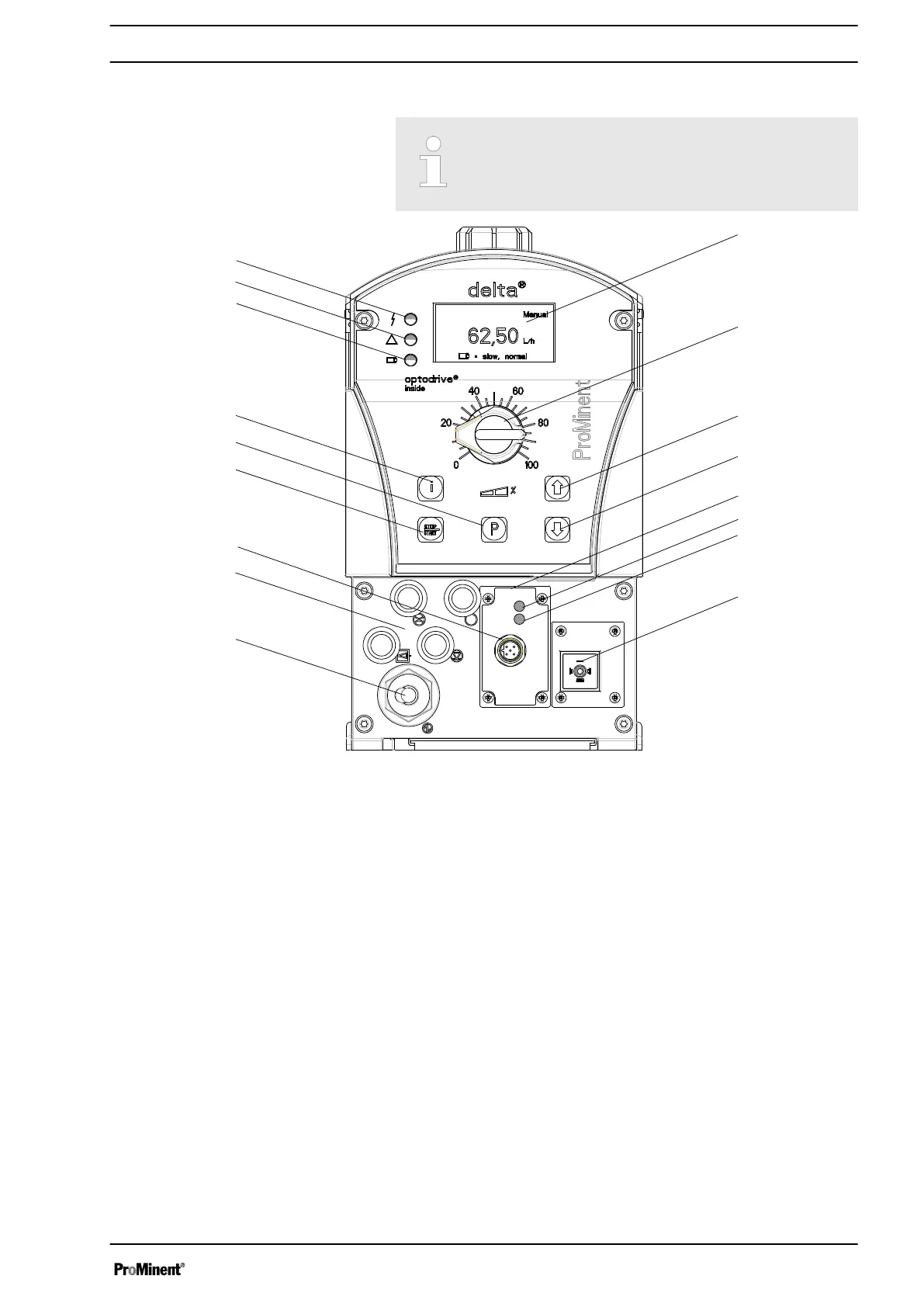

Fig. 9: Operating elements of the delta
®
solenoid metering pump
1 LCD display
2 Stroke length adjustment knob
3 UP key
4 DOWN key
5
Control module delta
®
6 Device LED-LED
7 Connecting LED
8 Relay insert (optional)
9 Mains power
10 Terminal for the additional functions
11 Sensor connection
12 STOP / START key
13 P key
14 i key
15 Operating indicator (green)
16 Warning indicator (yellow)
17 Fault indicator (red)
Operating Schematics / Display Symbols
23

ProMinent delta Specifications

General

Stroke rate	max. 180 strokes/min
Type	Diaphragm metering pump
Materials	PVDF, PTFE, stainless steel
Protection class	IP 65
Diaphragm material	PTFE
Drive	Solenoid
Power supply	230 V, 50/60 Hz
