ProMinent delta User Manual

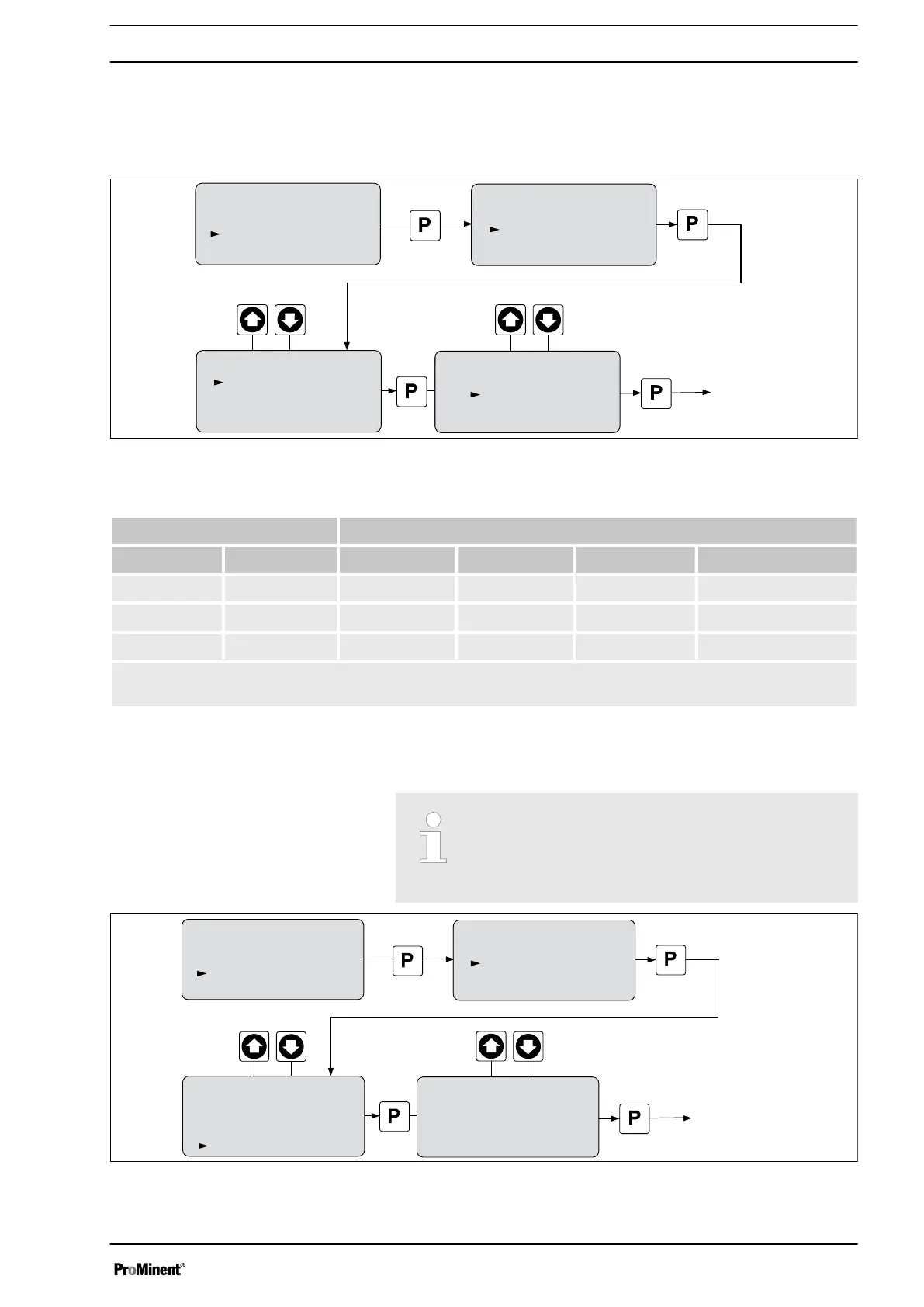

6.8 Setting the set value
You can set the set value via this menu. An
„S“ is put in front in the
display value for the set value is displayed in the continuous
display.
A0363
Clear
Main
proControl
Set
Controller
Set
Sensor calibr.
[ 500 ] mV
Setpoint
Concentration
Basic load
Controller
Setpoint
Limit value
Operation
Aux.
Parameter
Fig. 14: Setting the set value
Setting Possible values
Display Starting value Increment Lower value Upper value Remarks
mV 500 mV 1 mV 0 mV 999 mV Redox
pH 7.00 pH 0.01 pH 0.00 pH 14.00 pH
Chlorine 5.00 ppm 0.01 ppm 0 ppm 20 ppm
The upper and lower value can only be adjusted in the scope of the adjusted limit values, see Ä Chapter
6.6 „Setting the limit values“ on page 27 . The values in the table shows the maximum possible range.
6.9 Setting the checkout time
Monitoring of the controlled system
The checkout time monitors the controlled system.
Possible defective sensors may be detected via the
mechanism of the checkout time.
A0315
Clear
Main
proControl
Set
Controller
Set
Sensor calibr.
[120] min
Check out time
Concentration
Check out time
Controller
Limit value
Basic load
Operation
Aux.
Parameter
Fig. 15: Setting the checkout time
Operating Schematics / Display Symbols
29

ProMinent delta Specifications

General

Stroke rate	max. 180 strokes/min
Type	Diaphragm metering pump
Materials	PVDF, PTFE, stainless steel
Protection class	IP 65
Diaphragm material	PTFE
Drive	Solenoid
Power supply	230 V, 50/60 Hz
