3.2 Electrical interfaces
1.
2.
3.
I.
II.
III.
IV.
A0341
V.
VI.

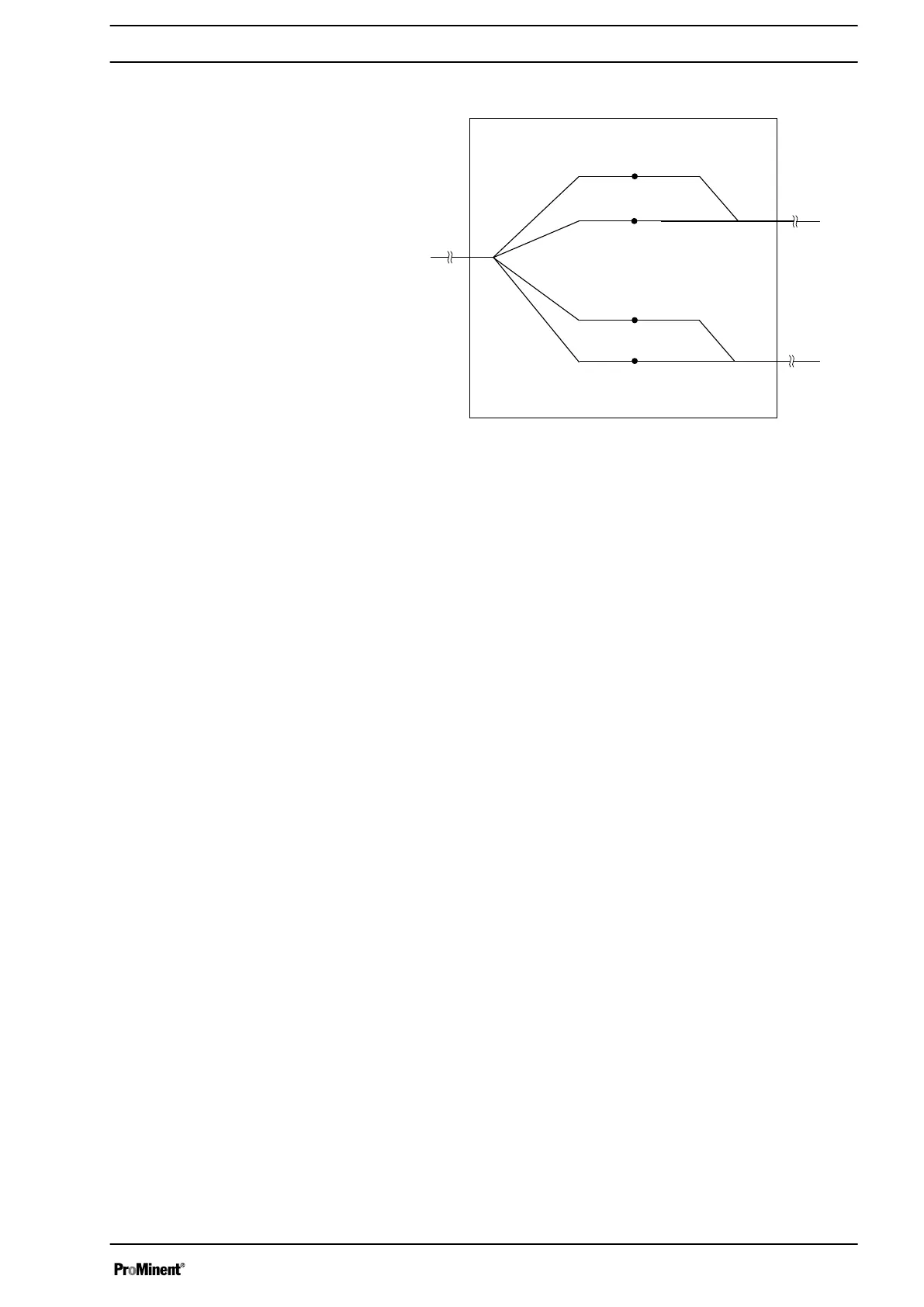

Fig. 3: Connection box 1 (IP 65)
1. Relay cable 4-pin
2. External cable for the second pump
3. Fault indicating relay = External overall alarm (max. load 24 V /
100 mA)
I. White (pacing pulse relay)
II Brown (pacing pulse relay)
III. Yellow (fault indicating relay)
IV. Green (fault indicating relay)
V. White
VI. Brown
Connection of the external pump via a 4-pin relay cable.
Functional description
