A0342

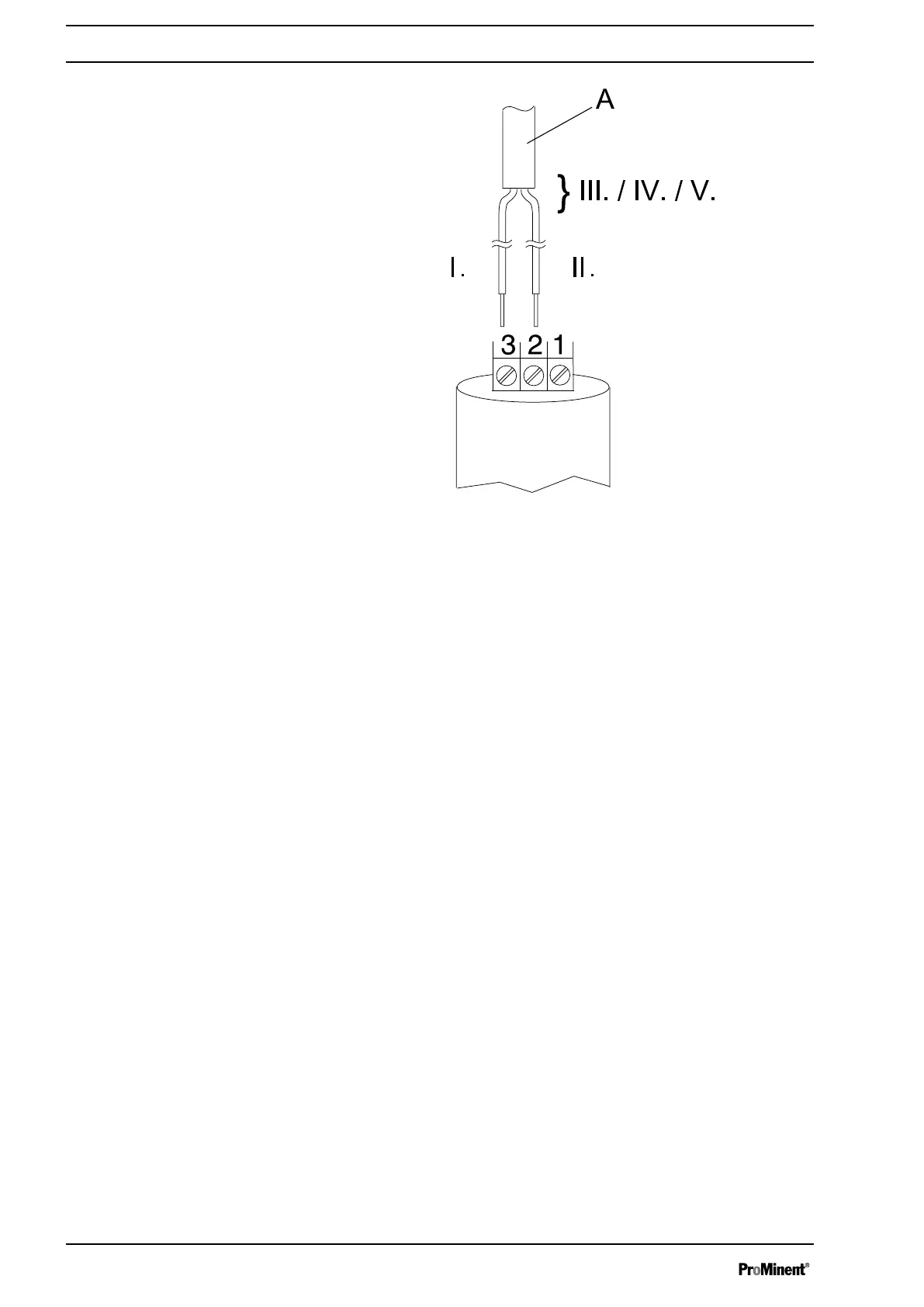

Fig. 4: Connection of the flow gauge
A. 5-pin universal cable
I. Black
II. Brown
III. Blue (not used)
IV. Grey (not used)
V. White (not used)
Functional description: As soon as the flow falls below the set
threshold, the contact is opened and the delta
®
solenoid metering
pump switches to
„PAUSE“
.
