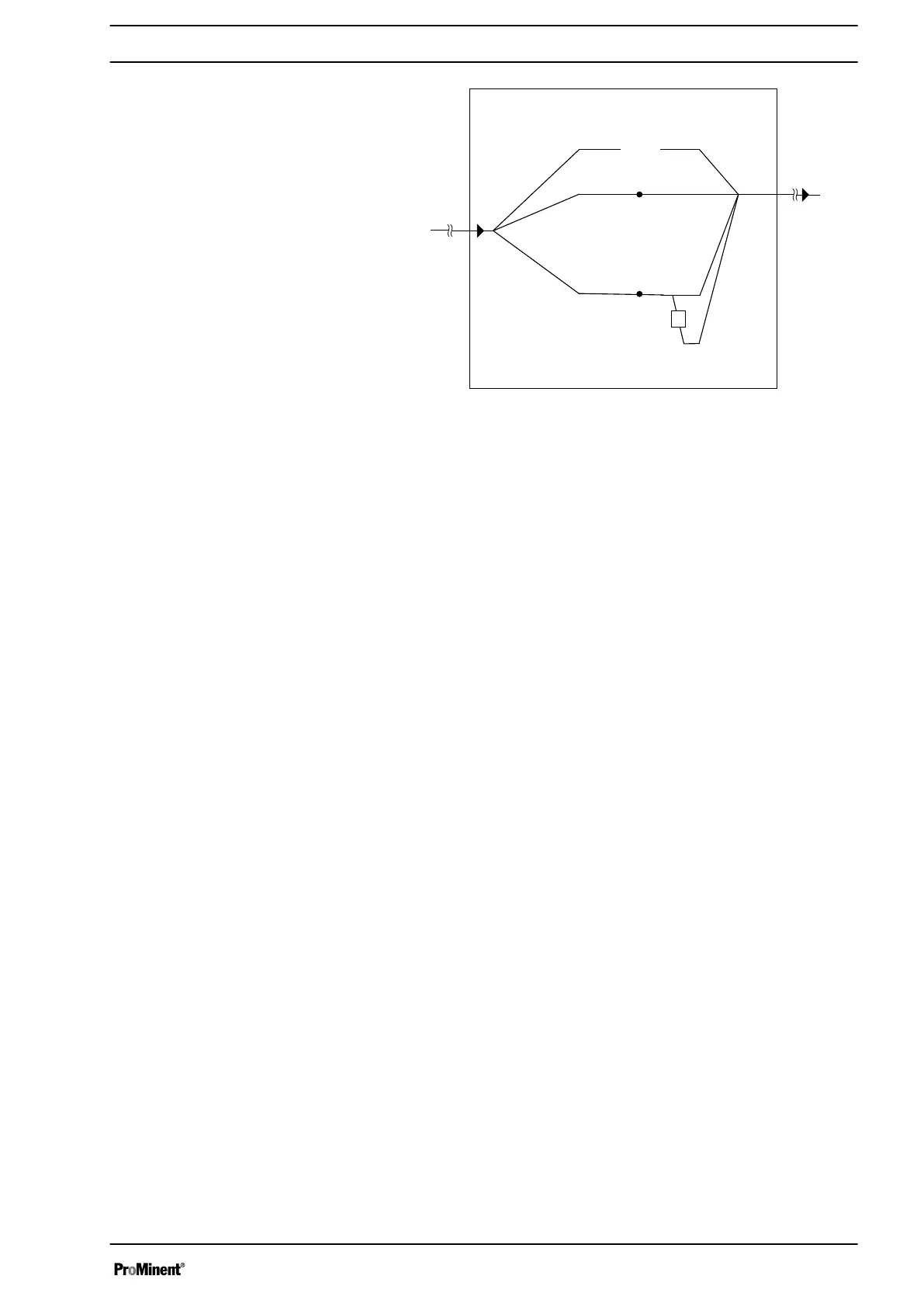

Fig. 5: Connection box 2 (IP 65)

1. Relay cable 3-pin Beta

2. Delta diaphragm rupture cable

3. Resistance 300 Ω

I. White (open)

II. Green (NC)

III. Brown (C)

IV. White (open)

V. Blue (signal)

VI. Black (ground)

VII. Brown (5 V)

Connecting the alarm relay of the external pump to the input of the

diaphragm rupture alarm of the delta

solenoid metering pump. As

soon as the external pump reports an error, this error is passed on

to the delta

via the input of the diaphragm rupture alarm. The

delta

solenoid metering pump stops and outputs a collective

alarm.

Functional description
