P_G_0078_SW

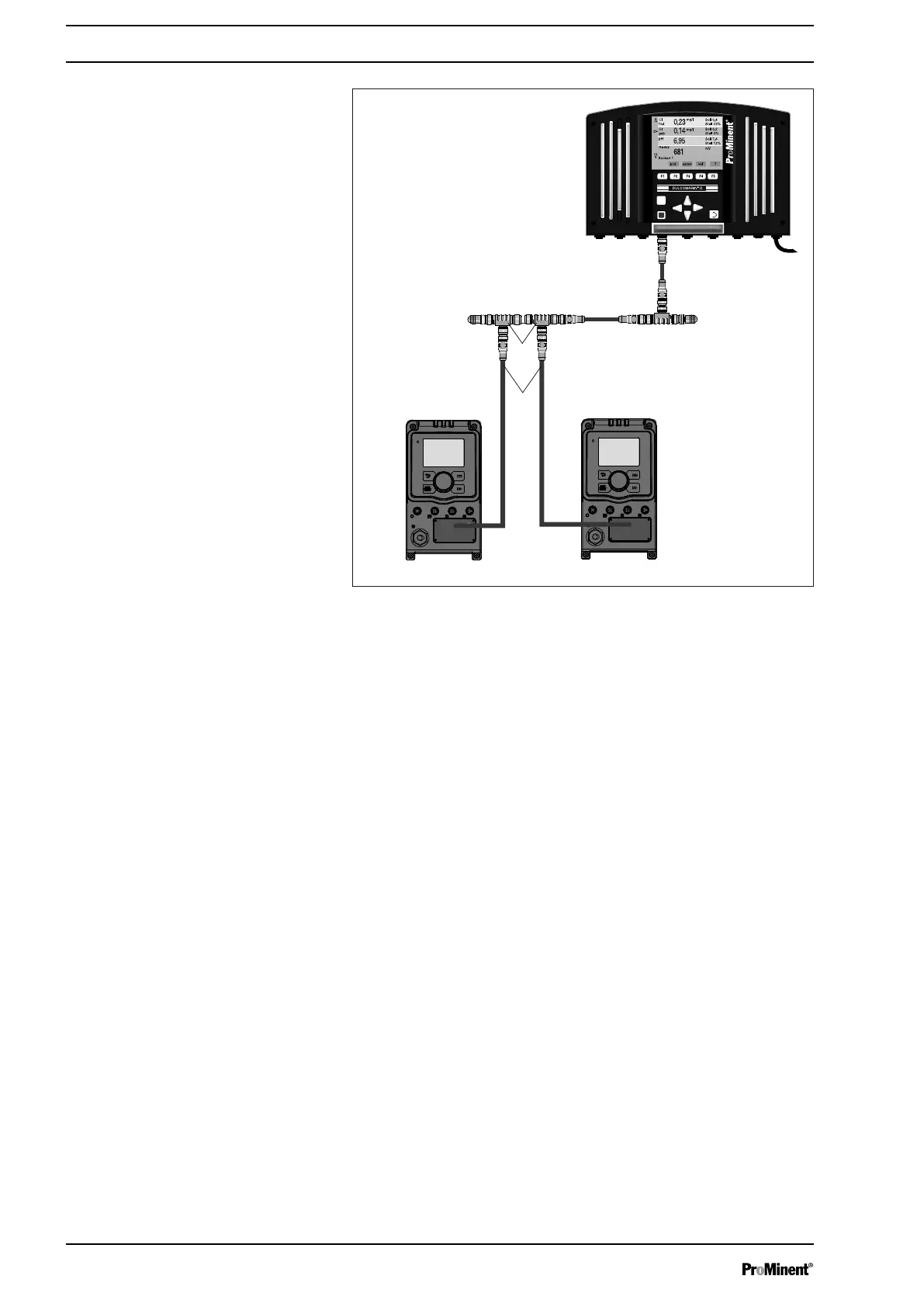

Fig. 2: CAN connector for metering pumps (Example: 2 DFXa with
Dulcomarin II used as the control)
5 T-distributor, M 12, 5-pin CAN
6 Terminating resistor M 12 coupling
7 Terminating resistor M 12 plug
8 CAN connecting cable CAN connecting cable
9 CAN connecting cable
13 CAN pump DFXa e.g. for acid
14 CAN pump DFXa e.g. for alkali
Supplementary operating instructions for CANopen
