ProMinent DULCO flex Control Supplementary Operating Instructions

CAUTION!
– IP 65 degree of protection applies only to a
plug-socket combination that has been
screwed together!
–
Cables with moulded M12 industrial connectors
must be used in ambient conditions requiring
protection against contact and moisture up to
IP 65.
– IP 65 degree of protection applies to an
unwired pump (with PROFIBUS
®
module) only
if IP 65-compliant covers are placed over the
M12 industrial sockets! The cover supplied
does not guarantee chemical resistance.

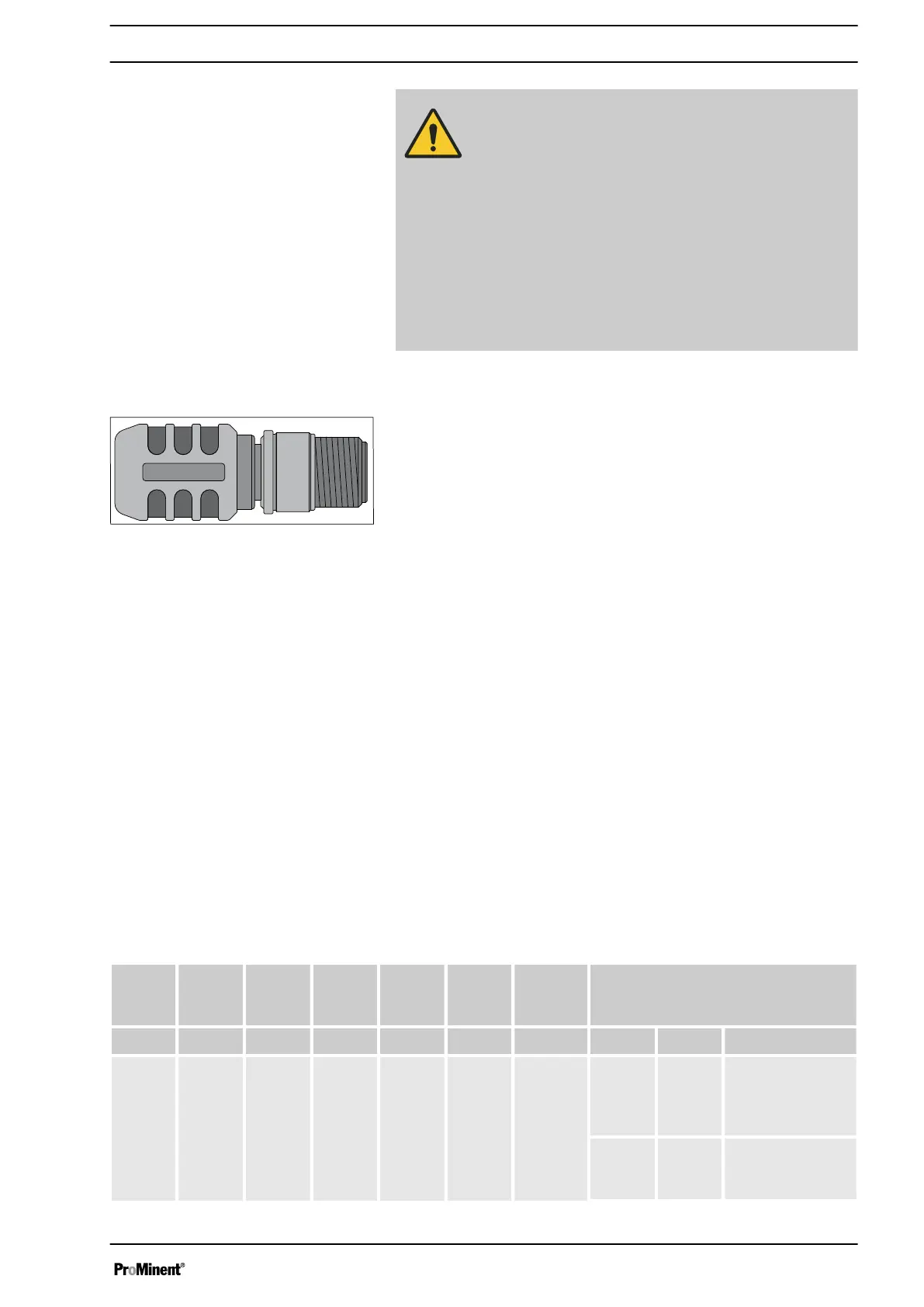

If the pump is the last bus device connected to the PROFIBUS
®
cable, it must be connected completely as a termination using the
plug-in PROFIBUS
®
terminating resistor (order no. 1036622) see
EN 50170. The PROFIBUS
®
terminating resistor has IP 65 protec‐
tion against contact and moisture.
3.5
Operation
3.5.1 General
Using the connected PROFIBUS
®
module, the PROFIBUS
®
pump
represents a device with slave functionality in conformity with DP-
V1. This means that the payload is transferred both cyclically and
acyclically.
3.5.2 GSD file
Use the GSD file to configure the master. The GSD file describes
all features of the pump in PROFIBUS
®
mode (keywords, diagnos‐
tics, modules, slots). The GSD file can be downloaded from the
PROFIBUS
®
website and from the ProMinent website. The file
name is unique: DFXA1137.GSD .
3.5.3 DULCO flex Control DFXa, DFXa data objects
Tab. 33: Status and control
Module
/ slot
Index Name Module
name
Identifi‐
cation
(hex)
Type Data
flow *
Description
bit Name Function
1 1 State Status 40.83 u32 R 0 Motor Motor state
0 = Motor idle,
1 = Motor running
1 System
Ready
Flag
1 = pump ready
to start
Terminal resistors
P_DE_0079_SW
Supplementary operating instructions for PROFIBUS
®
53
