1.2 Control elements
P_G_0087_SW
2
3
1

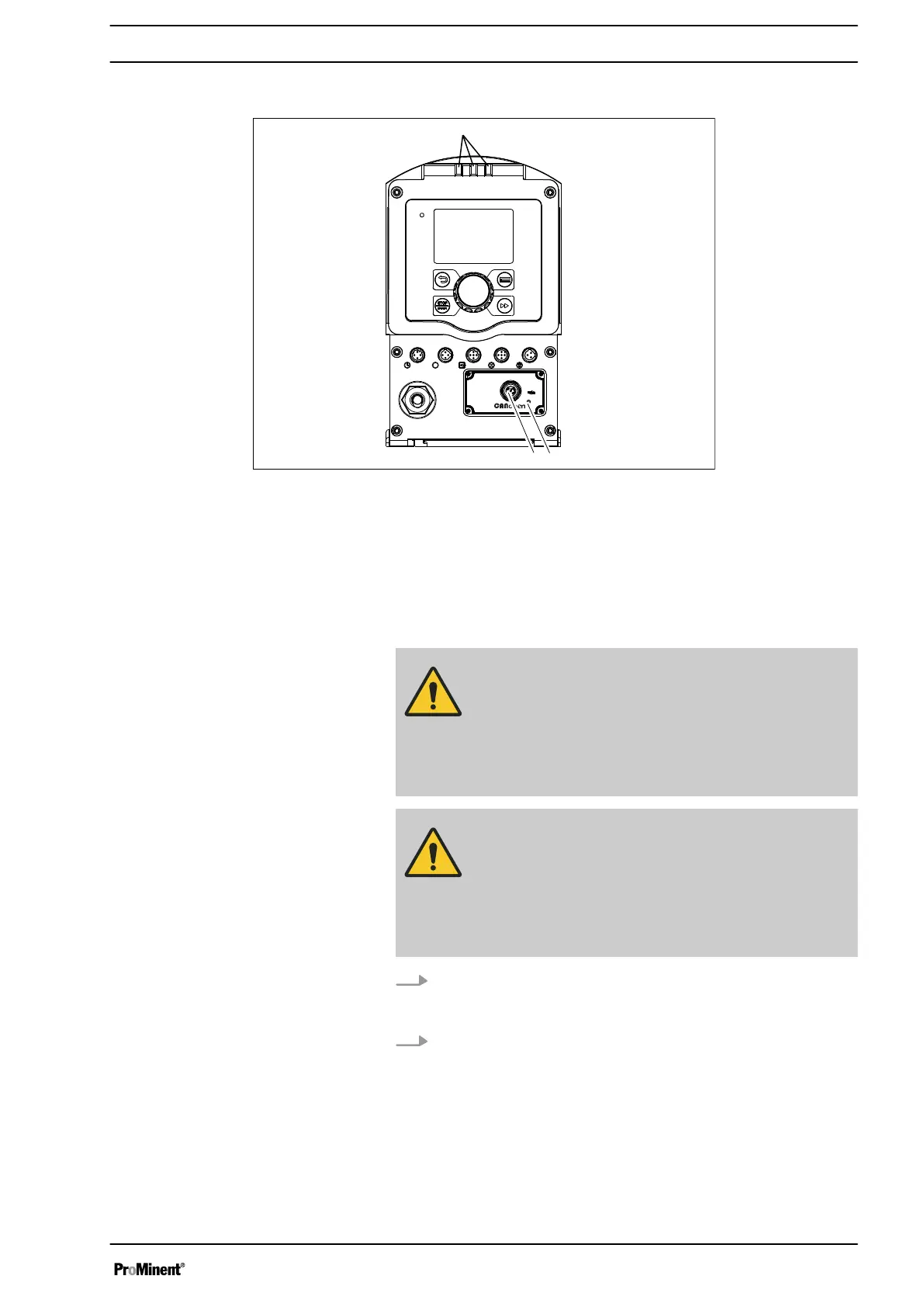

Fig. 1: DFXa control elements
1 CAN bus status LEDs
2 "CAN bus" socket
3 Device LEDs
1.3 Electrical installation
CAUTION!
Pump may be damaged.
IP65 degree of protection cannot be guaranteed if
the CAN cable is not correctly screwed in.
– Manually screw in the CAN cable threaded
connectors until they reach the stop.
CAUTION!
Pump may be damaged.
The panel plug on the housing may break off.
– Never connect a T-distributor directly to the
housing. Fit a cable between the pump and the
T-distributor.
1. Connect the CAN cable to the CANopen bus connector as
shown below – for more details, refer to the documentation
for your CANopen installation.
2. Insert the mains plug into the power socket - the metering
pump may possibly start to pump.
