P_G_0058_SW
40129864
Fig. 64
gamma/ X M70 gamma/ X M85
1602 1009 - 0708 0424 - 220 1604 0715 - 0414
ØA 70 90 90 70 90
B 77 74 76 77 76
C 92 89 91 92 91
D 33 24 24 33 24
E 189 199 199 189 199

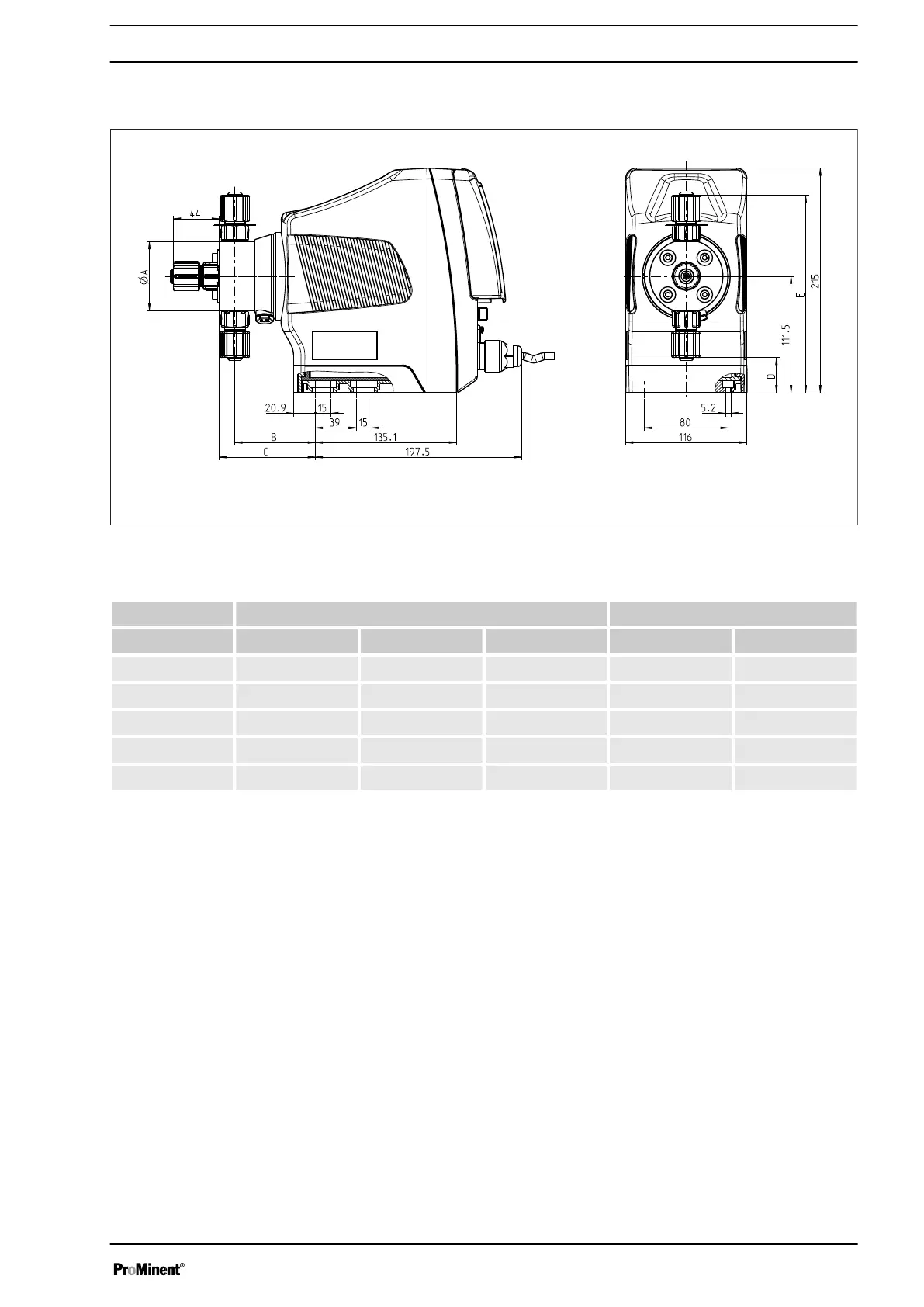

Dimensional drawing of gamma/ X, mate‐
rial version PPB SEK
Dimensional Drawings
123
