P_G_0059_SW
40129871
Fig. 65
gamma/ X M70 gamma/ X M85
1602 1009 - 0708 0424 - 220 1604 0715 - 0414
ØA 70 90 90 70 90
B 77 76 76 77 76
C 92 91 91 92 91
D 33 24 24 33 24
E 189 199 199 189 199

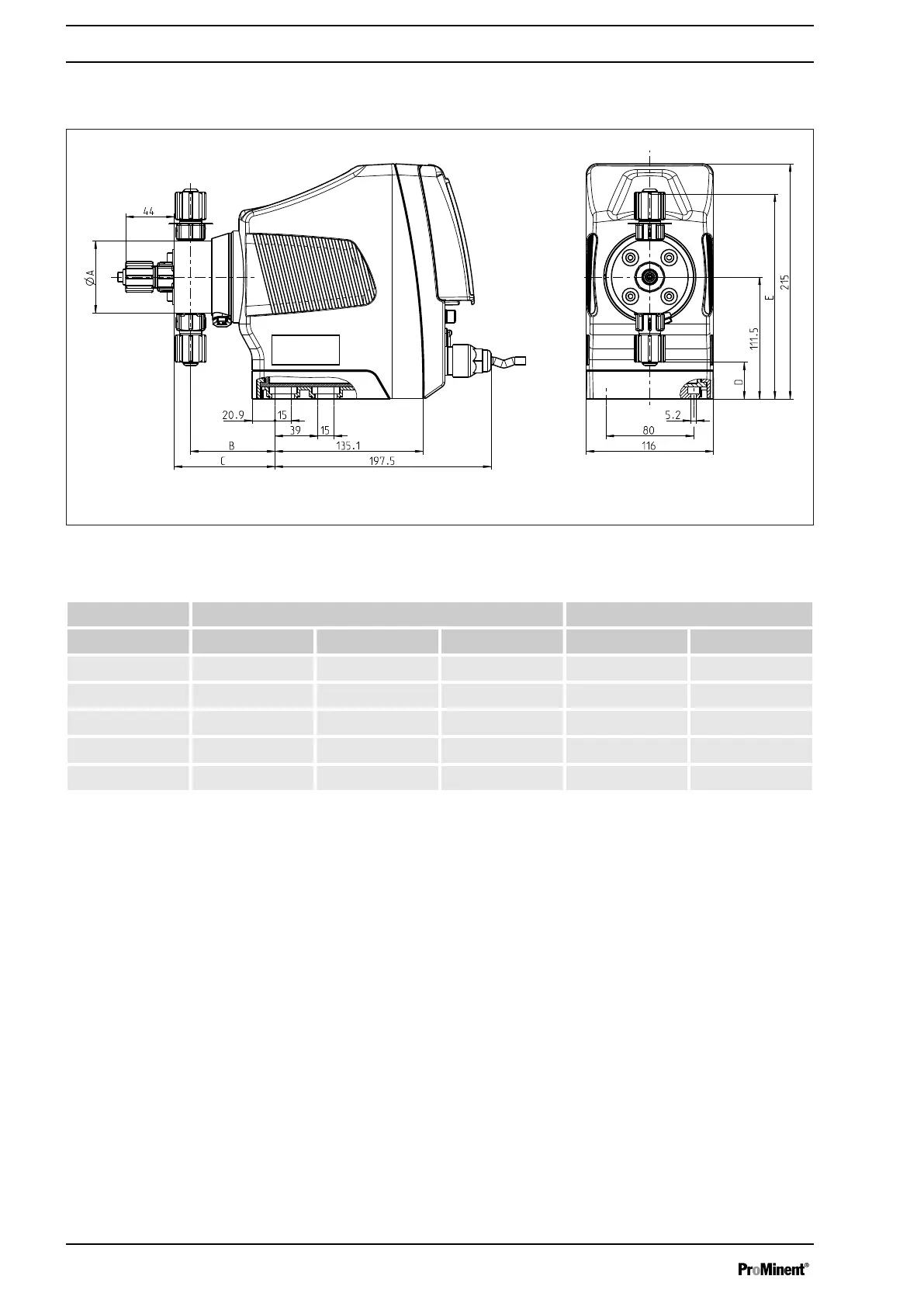

Dimensional drawing of gamma/ X, mate‐
rial version NPB SEK
Dimensional Drawings
