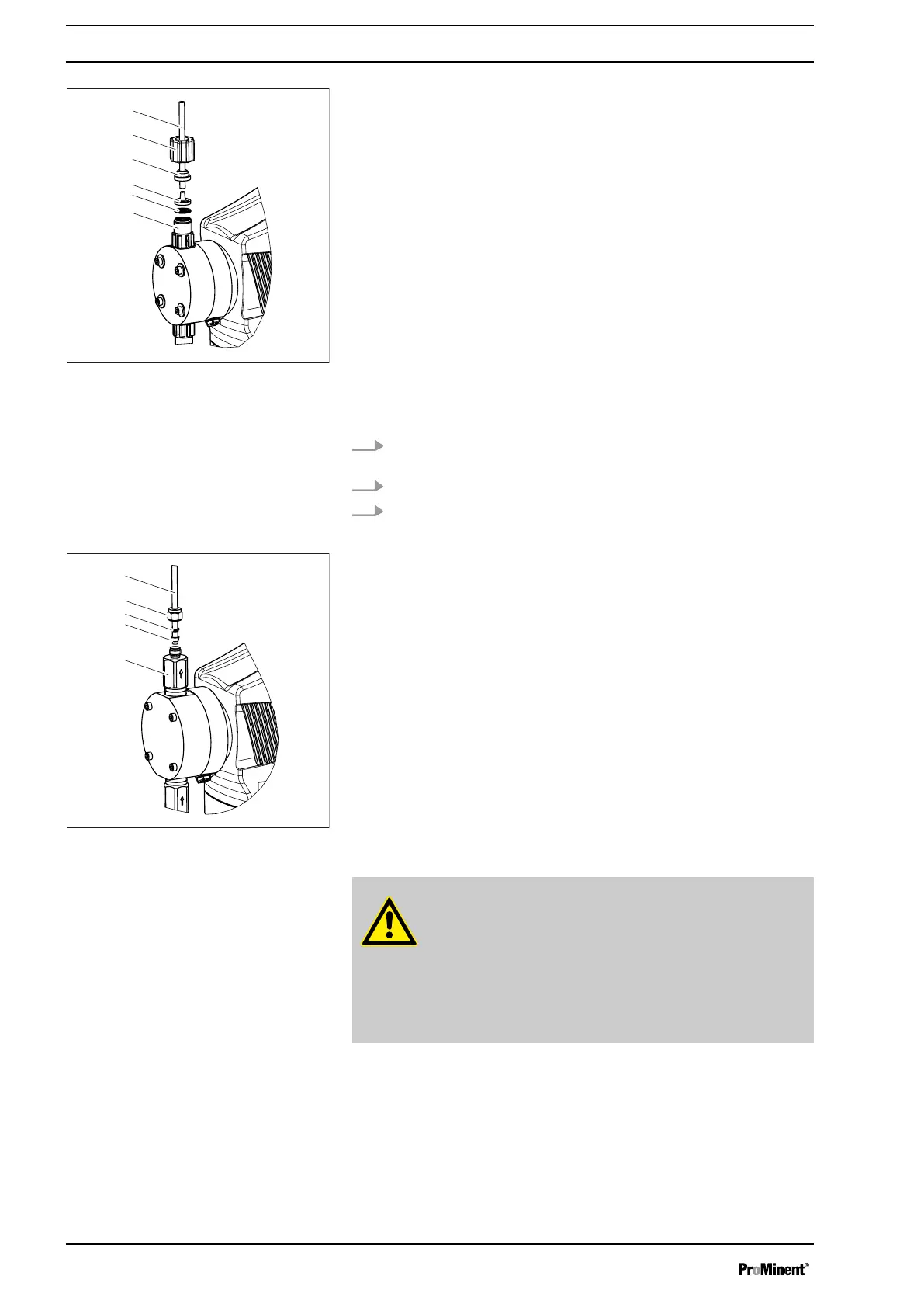

ProMinent gamma/ X User Manual

1 Hose
2 Union nut
3 Clamp ring
4 Nozzle
5 O-ring or flat seal
6 Valve
1. Pull the union nut (2) and clamp rings (3, 4) over the pipe (1) with
approx. 10 mm overhang - see
Fig. 11.
2. Insert the pipe (1) up to the stop in the valve (5).
3. Tighten the union nut (2).
1 Pipe
2 Union nut
3 Rear clamp ring
4 Front clamp ring
5 Valve
CAUTION!
Warning of feed chemical spraying around
Connections can come loose in the event that hose lines are
installed incorrectly on stainless steel valves.
– Only use PE or PTFE hose lines.
–
In addition, insert a stainless steel support insert into the
hose line.
1
2
1
3
4
5
6
P_G_0066_SW
Fig. 10: PP, NP, PV and TT designs
Installing stainless steel pipe - SS design
1
2
1
3
4
5
P_G_0067_SW
Fig. 11: SS design
Installing hose lines - SS design
Installation, hydraulic
30

ProMinent gamma/ X Specifications

General

Protection class	IP65
Max. Pressure	25 bar
Power supply	100-230 V, 50/60 Hz
Material of pump head	PVDF, Stainless steel
Temperature range	-10 °C to +45 °C
Type	Diaphragm dosing pump
Stroke length	Adjustable
Stroke frequency	max. 180 strokes/min
Materials in contact with the medium	PVDF, PTFE, stainless steel
Control	Manual, external control via contacts or 0/4-20 mA signal
Control Options	External, potential-free contacts, 0/4-20 mA
Dosing Accuracy	±2%
