Promise Technology SmartStor NS2300N User Manual

Chapter 3: Connecting to the SmartStor
33
3. Click the Forward button.

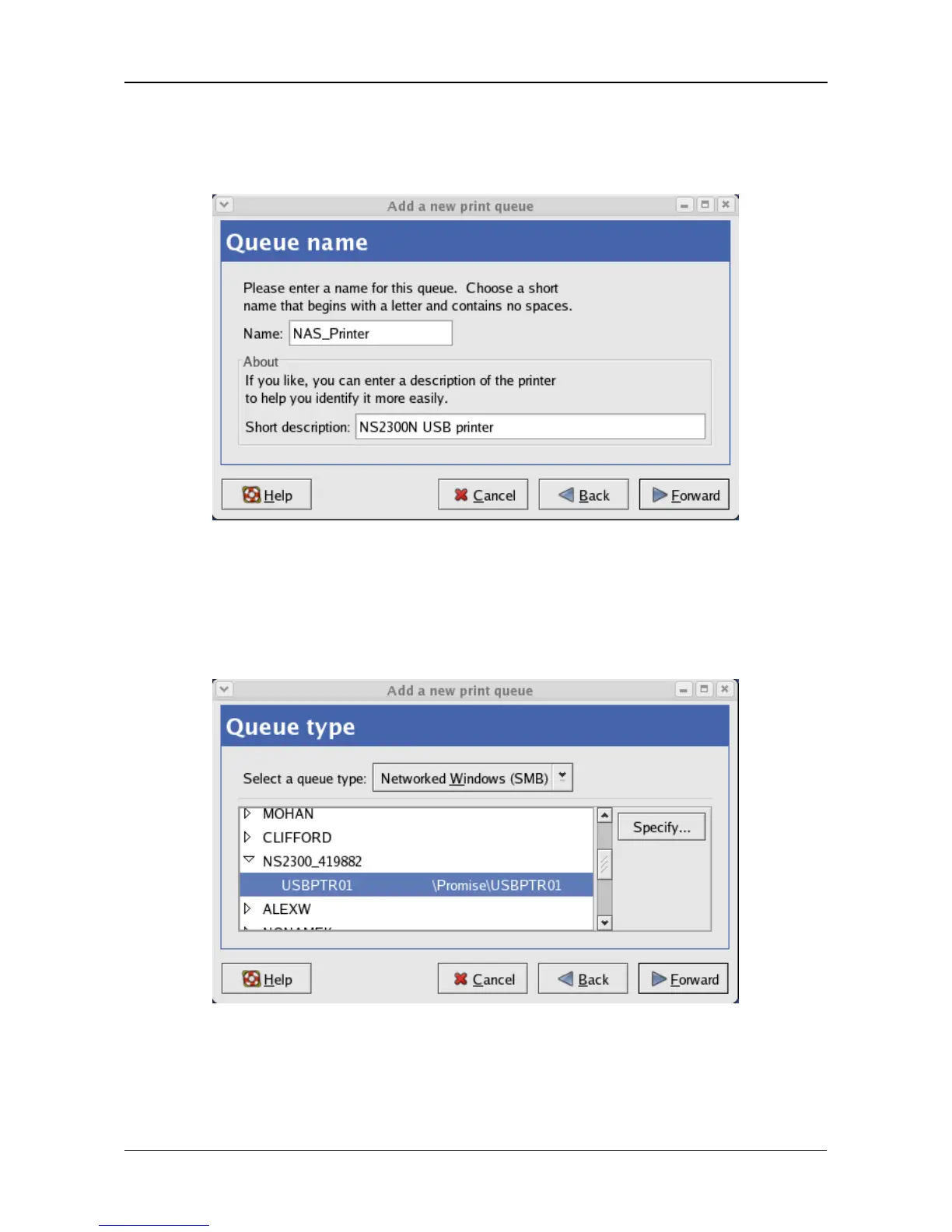

4. In the Name field, type a name for the printer, such as NAS_printer, a
description, and click the Forward button.
5. From the Select a queue type dropdown menu, choose Network Windows
(SMB).
6. Scroll the list and click the triangle icon beside NS2300.
USBPTR01 appears below NS2300. USBPTR01 represents the USB printer
connected to the SmartStor.
7. Highlight USBPTR01 and click the Forward button.
The Authentication dialog box opens.
In the User name and Password fields, type admin, then click the OK
button.
