6.4.5 Monitoring Data Values in the Module’s Database

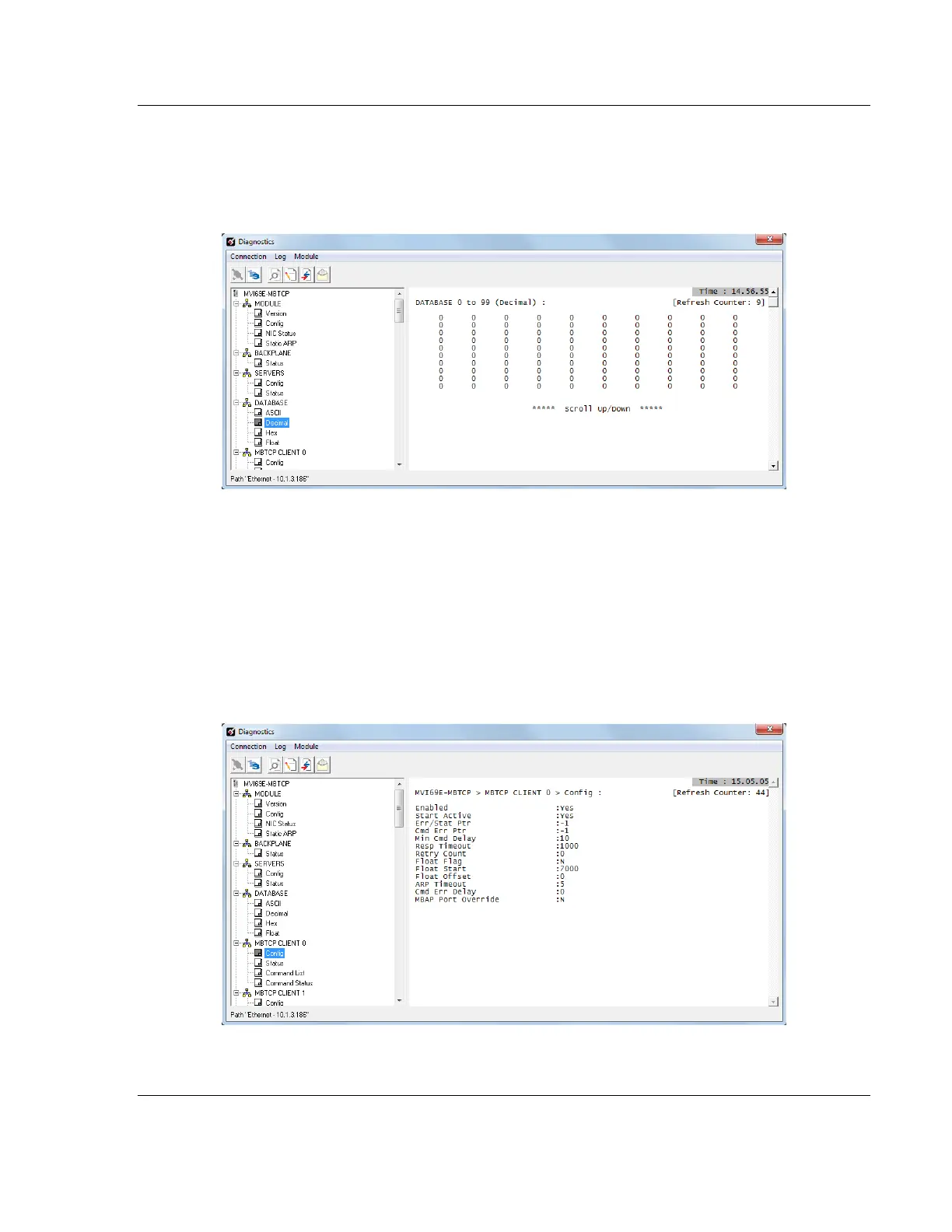

In the Diagnostics window in ProSoft Configuration Builder, click DATABASE
and then click DECIMAL to view the contents of the MVI69E-MBTCP internal
database. You can view data values in ASCII, Hexadecimal, and Float format.
6.4.6 Modbus Client Driver Information
In the Diagnostics window in ProSoft Configuration Builder, click MBTCP
CLIENT X to view Modbus Client driver information, where X is the number of the
Modbus Client. The Modbus Client Driver menus have four submenus:
 CLIENT X CONFIGURATION
 CLIENT X STATUS
 CLIENT X COMMAND LIST
 CLIENT X COMMAND STATUS
