2.3.2 Creating and Exporting the .L5X File
There are two parameters in the PCB configuration that affect the format of the
.L5X file that is exported. Before exporting the .L5X file to the PC/Laptop, check
the Block Transfer Size and Slot Number parameters.

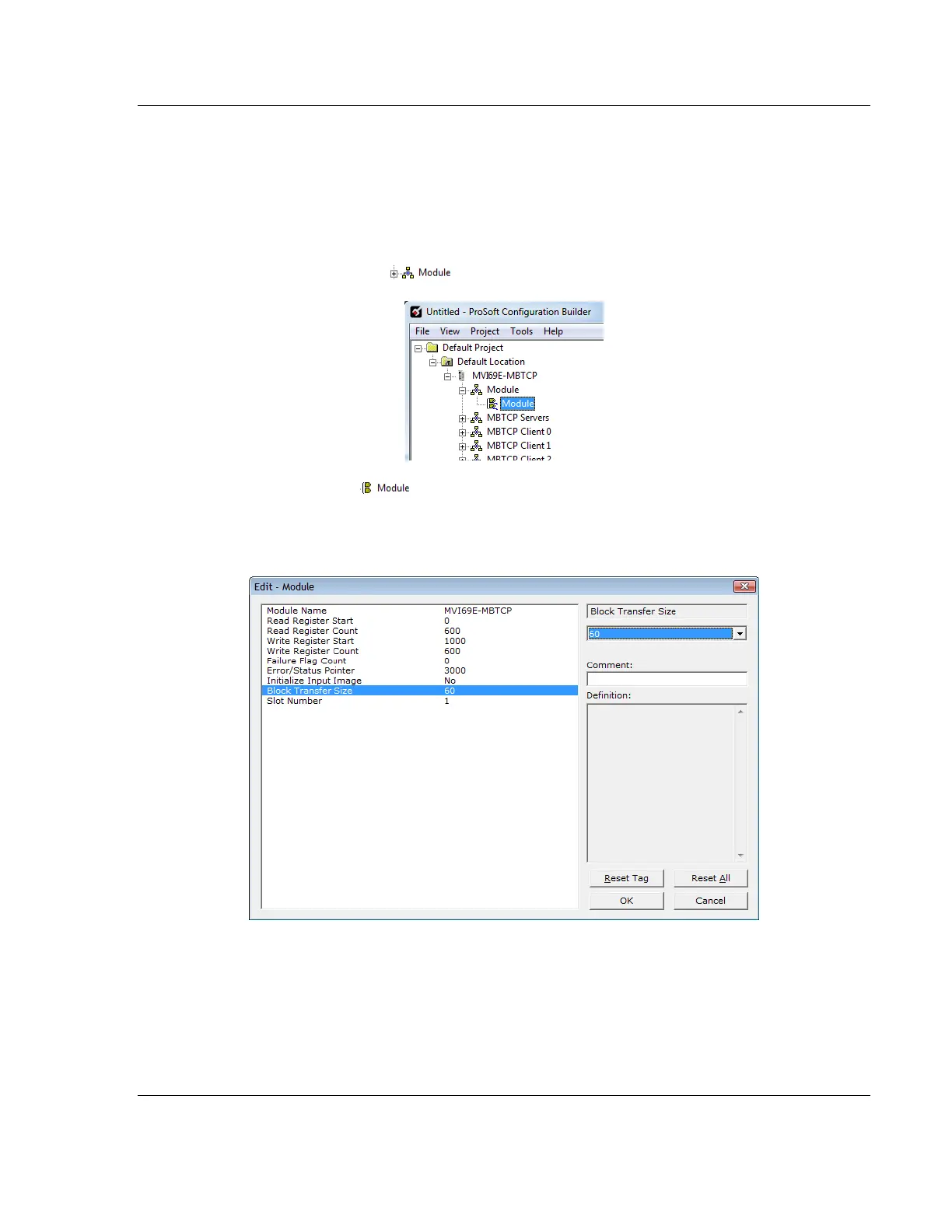

1 Expand the MVI69E-MBTCP icon by clicking the [+] symbol beside it.
Similarly, expand the icon.
2 Double-click the icon to open the Edit - Module dialog box.
3 Set the Block Transfer Size to the desired size of the data blocks transferred
between the module and processor (60, 120 or 240 words). You can find
block transfer size information starting in Normal Data Transfer (page 65).
