2.3 Generating the AOI (.L5X File) in ProSoft Configuration Builder
The following sections describe the steps required to set up a new configuration
project in ProSoft Configuration Builder (PCB), and to export the .L5X file for the
project.
2.3.1 Setting Up the Project in PCB
To begin, start PROSOFT CONFIGURATION BUILDER (PCB).
The PCB window consists of a tree view on the left, and an information pane and
a configuration pane on the right side of the window. The tree view consists of
folders for Default Project and Default Location, with a Default Module in the

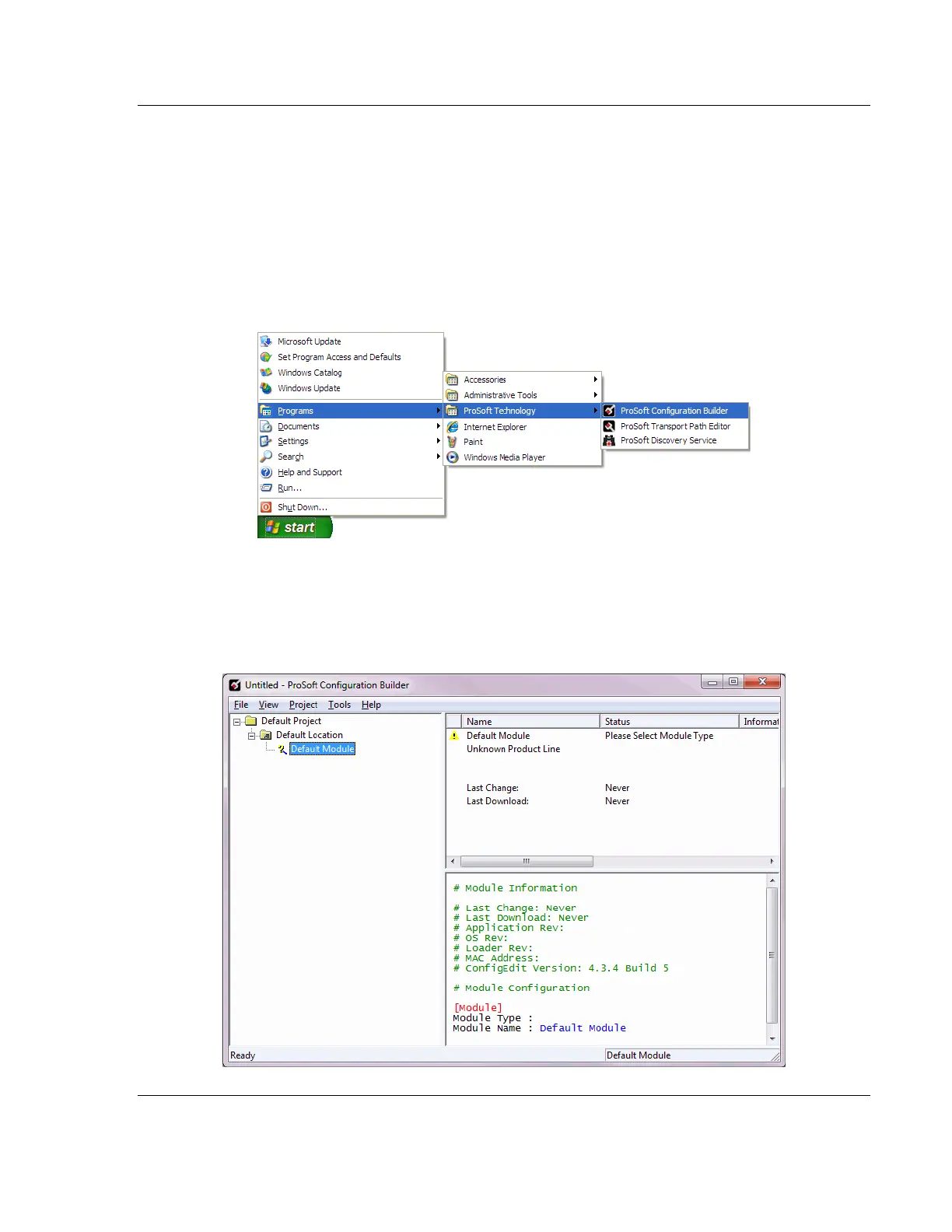

Default Location folder. The following illustration shows the PCB window with a
new project.
