MVI69E-MBTCP ♦ CompactLogix Platform Adding the Module to RSLogix
Modbus TCP/IP Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 21 of 150
June 28, 2017

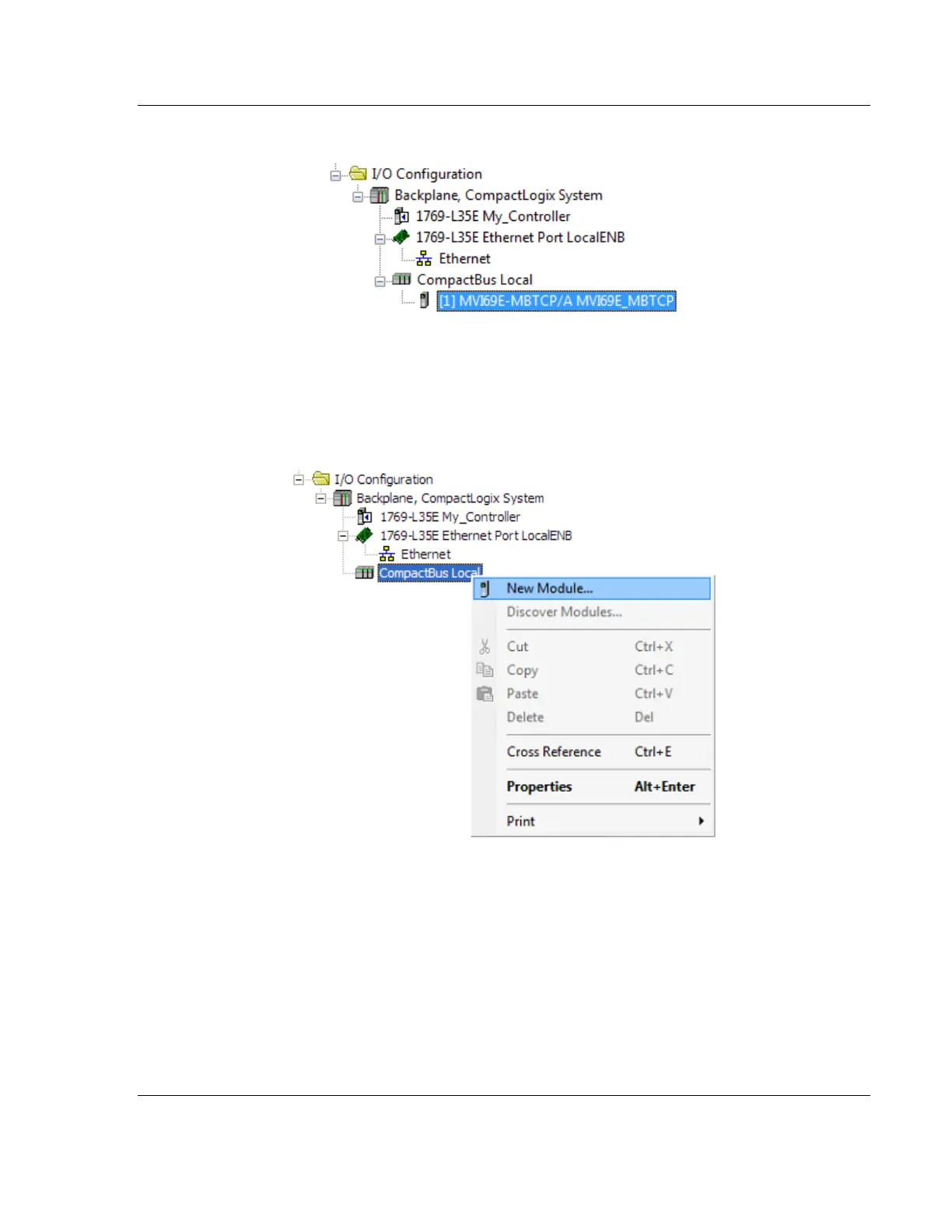

The MVI69E-MBTCP module is now visible in the I/O Configuration tree.
2.1.2 Creating a Module in the Project Using a Generic 1769 Module
Profile
1 Expand the I/O CONFIGURATION folder in the Project tree. Right-click the
appropriate communications bus and choose NEW MODULE.
This opens the Select Module Type dialog box.
