Adding the Module to RSLogix MVI69E-MBTCP ♦ CompactLogix Platform
User Manual Modbus TCP/IP Enhanced Communication Module
Page 22 of 150 ProSoft Technology, Inc.
June 28, 2017

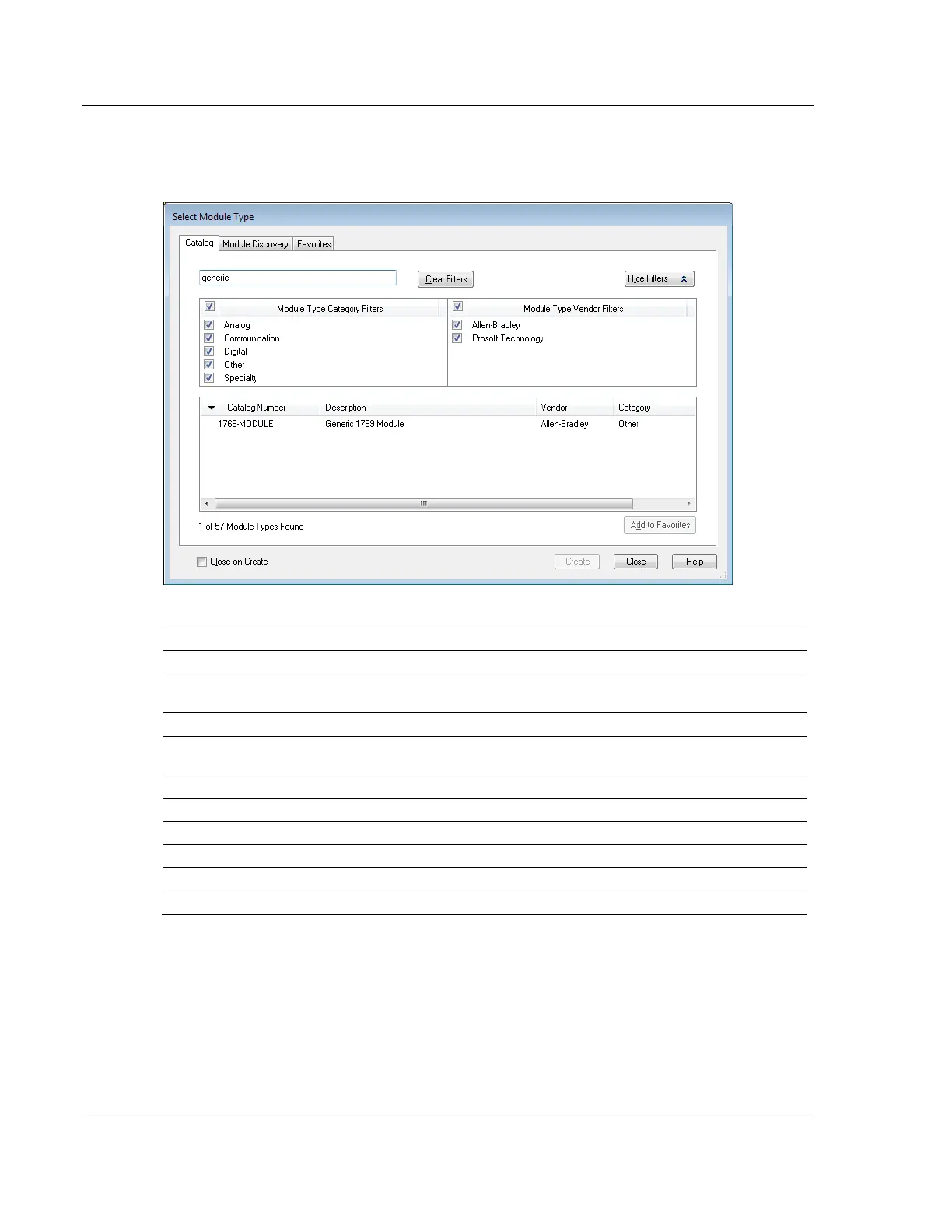

2 Enter GENERIC in the search text box and select the GENERIC 1769 MODULE. If
you're using an earlier version of RSLogix, expand OTHER in the Select
Module dialog box, and then select the GENERIC 1769 MODULE.
3 Set the Module Properties values as follows:
Parameter
Value
Name
Enter a module identification string. Example: MVI69E_MBTCP
Description
Enter a description for the module. Example: ProSoft
communication module for Serial Modbus communications.
Comm Format
Select DATA-INT
Slot
Enter the slot number in the rack where the MVI69E-MBTCP
module is installed.
Input Assembly Instance
101
Input Size
62 / 122 / 242
Output Assembly Instance
100
Output Size
61 / 121 / 241
Configuration Assembly Instance
102
Configuration Size
0
