MVI69E-MBTCP ♦ CompactLogix Platform Adding the Module to RSLogix
Modbus TCP/IP Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 23 of 150
June 28, 2017

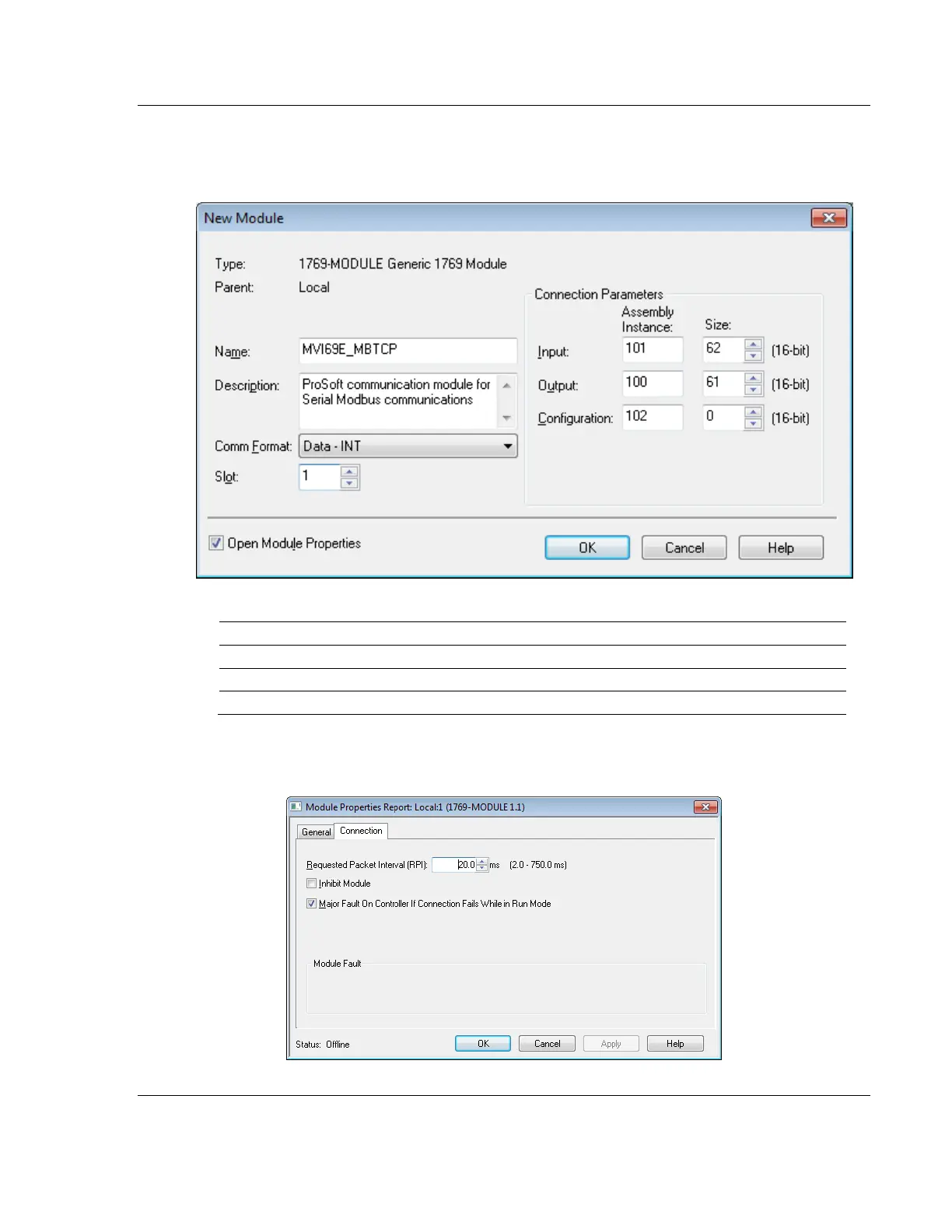

The following illustration shows an example where the module was
configured for a block transfer size of 60 words (input block size = 62 words,
output block size = 61 words):
The following options are available:
Block Transfer Size
Input Block Size
Output Block Size
60
62
61
120
122
121
240
242
241
4 On the Connection tab, set the REQUESTED PACKET INTERVAL value for your
project and click OK.
