Adding the Module to RSLogix MVI69E-MBTCP ♦ CompactLogix Platform
User Manual Modbus TCP/IP Enhanced Communication Module
Page 28 of 150 ProSoft Technology, Inc.
June 28, 2017

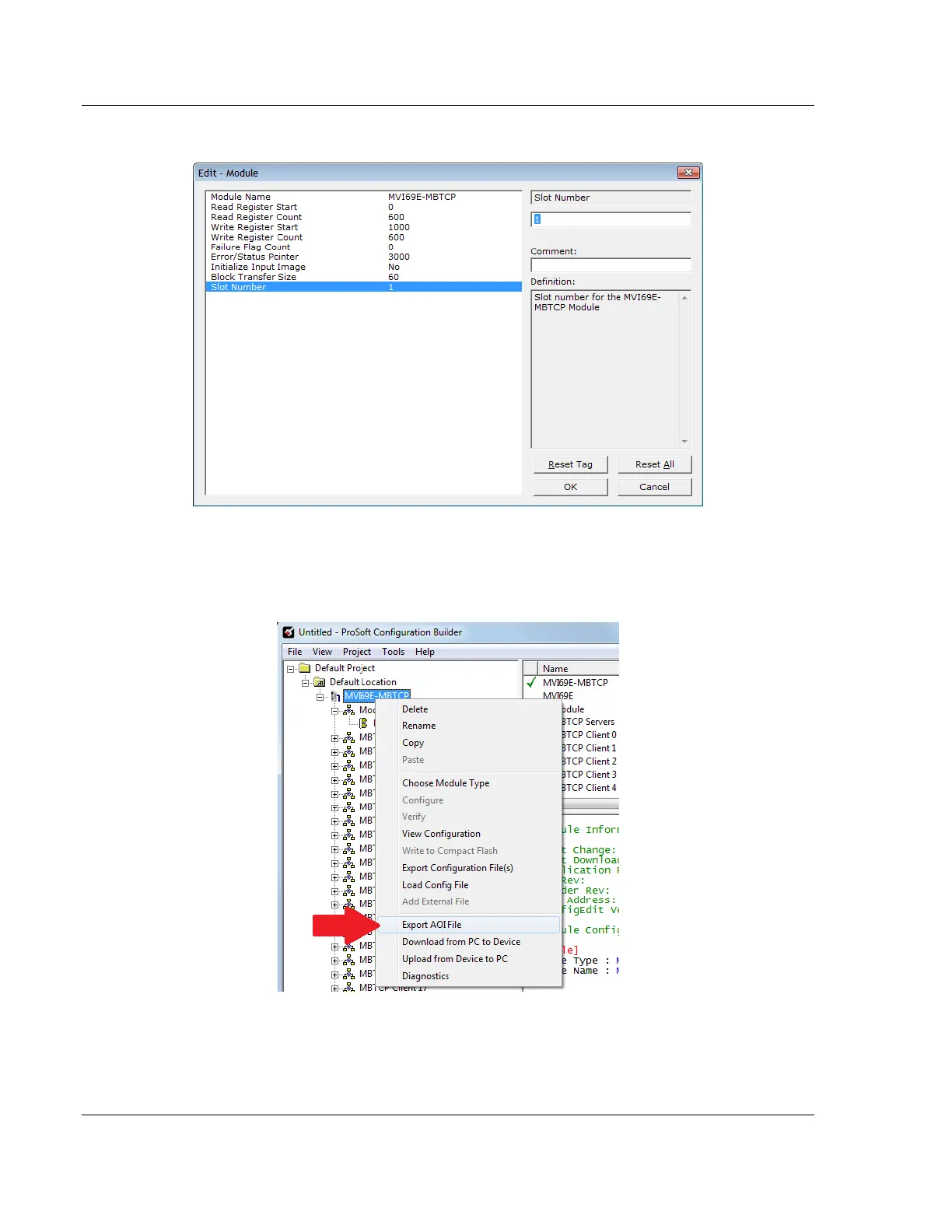

4 Edit the Slot Number indicating where the module is located in the 1769 bus.
5 Click OK to close the Edit – Module dialog box. The .L5X file is now ready to
export to the PC/Laptop.
6 Right-click the MVI69E-MBTCP icon in the project tree and choose EXPORT
AOI FILE.
