MVI69E-MBTCP ♦ CompactLogix Platform Configuring the MVI69E-MBTCP Using PCB
Modbus TCP/IP Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 59 of 150
June 28, 2017

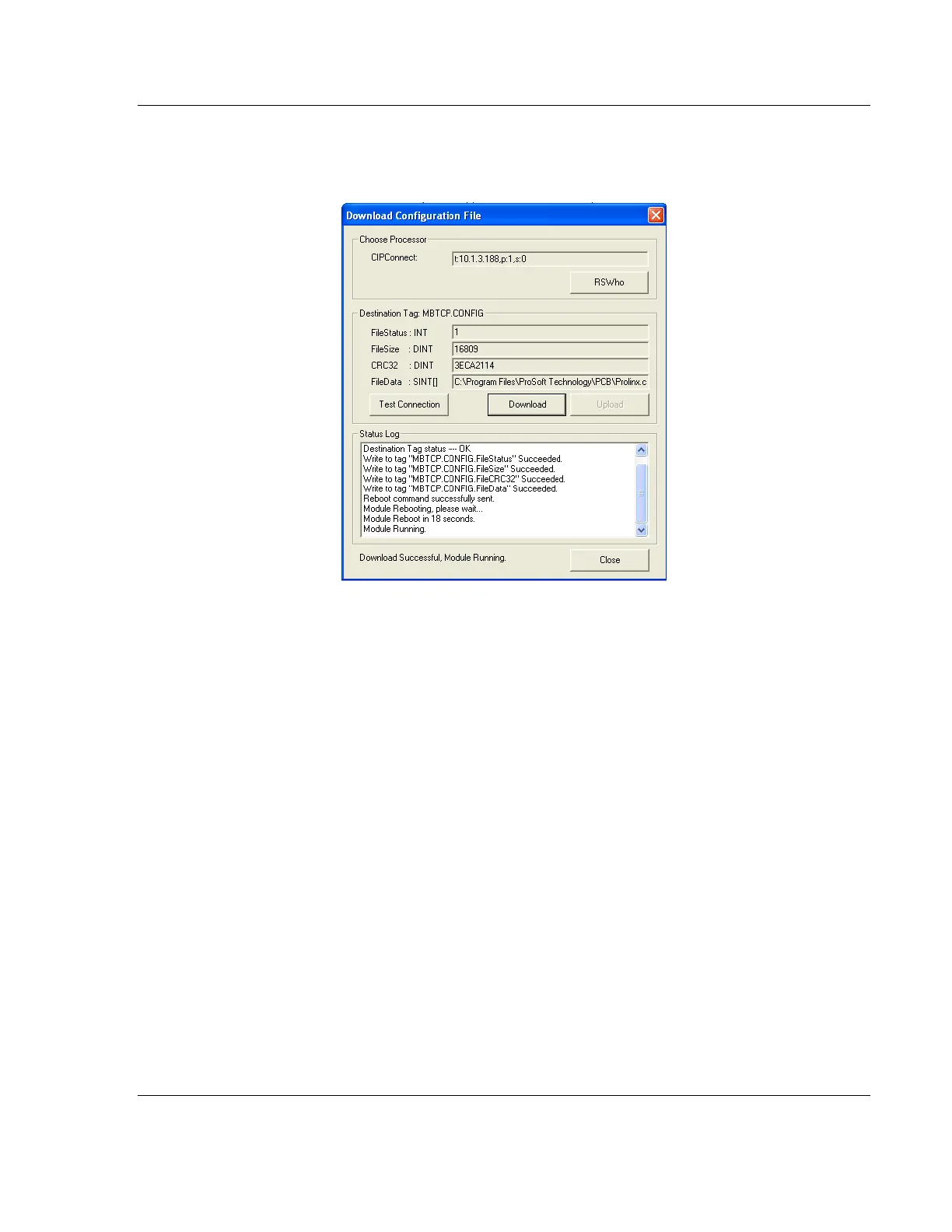

5 When ready, click DOWNLOAD to download the configuration file to the
processor. Following the download process, the module is automatically
rebooted.
6 After rebooting, the ladder logic sends the configuration data from the
processor to the module. When that is complete, the module starts Modbus
communications.
