MVI69E-MBTCP Backplane Data Exchange MVI69E-MBTCP ♦ CompactLogix Platform
User Manual Modbus TCP/IP Enhanced Communication Module
Page 68 of 150 ProSoft Technology, Inc.
June 28, 2017

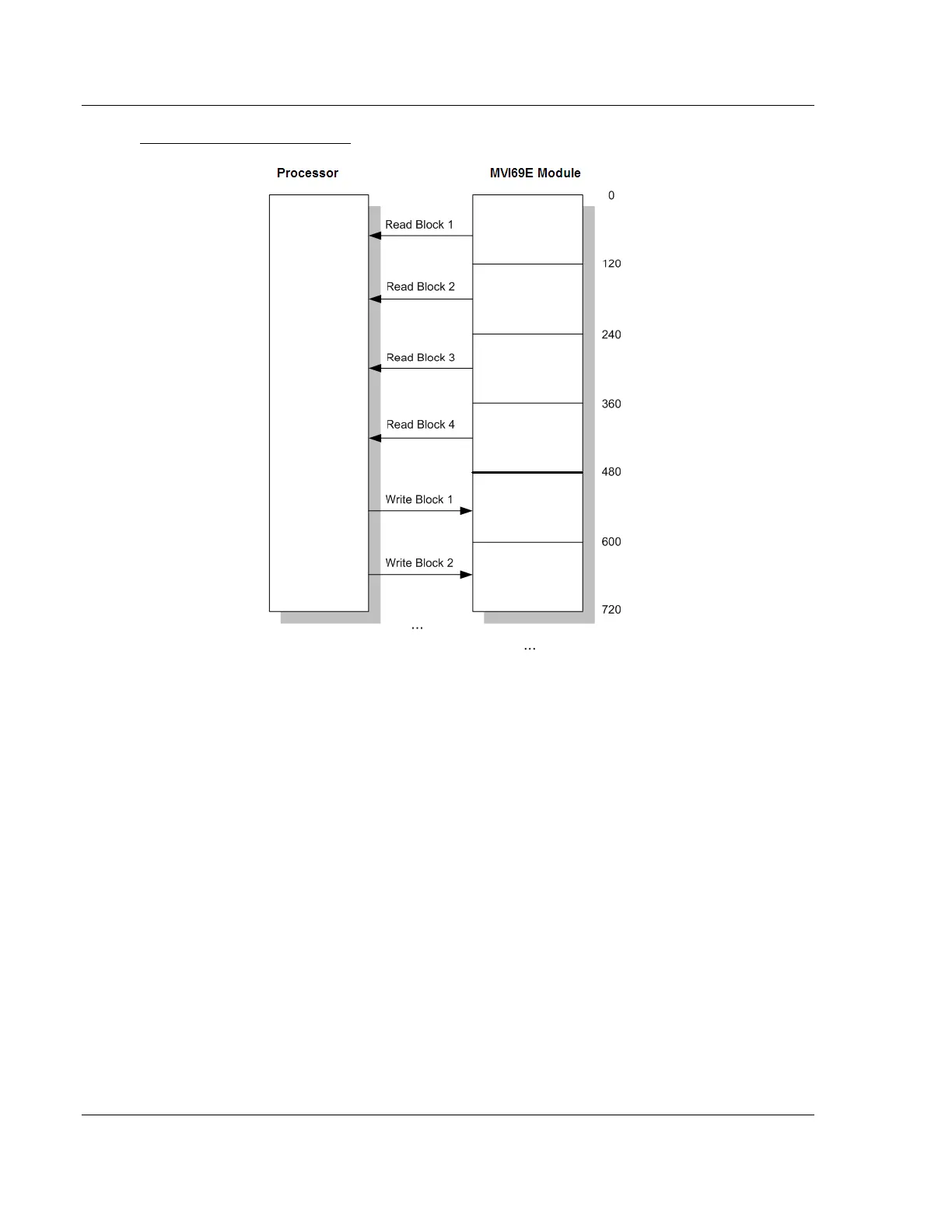

If Block Transfer Size = 120

Table of Contents

Questions and Answers:

ProSoft Technology MVI69E-MBTCP Specifications

General IconGeneral
VendorProSoft Technology
Product TypeControl Unit
ProtocolModbus TCP/IP
Ports1 Ethernet port
Operating Temperature0 to 60°C (32 to 140°F)
Storage Temperature-40 to 85°C
Relative Humidity5% to 95% (non-condensing)
CompatibilityCompatible with Rockwell Automation CompactLogix and MicroLogix Controllers
Power Supply24 VDC nominal
