ProSoft Technology MVI69E-MBTCP User Manual

MVI69E-MBTCP ♦ CompactLogix Platform Diagnostics and Troubleshooting
Modbus TCP/IP Enhanced Communication Module User Manual
ProSoft Technology, Inc. Page 99 of 150
June 28, 2017

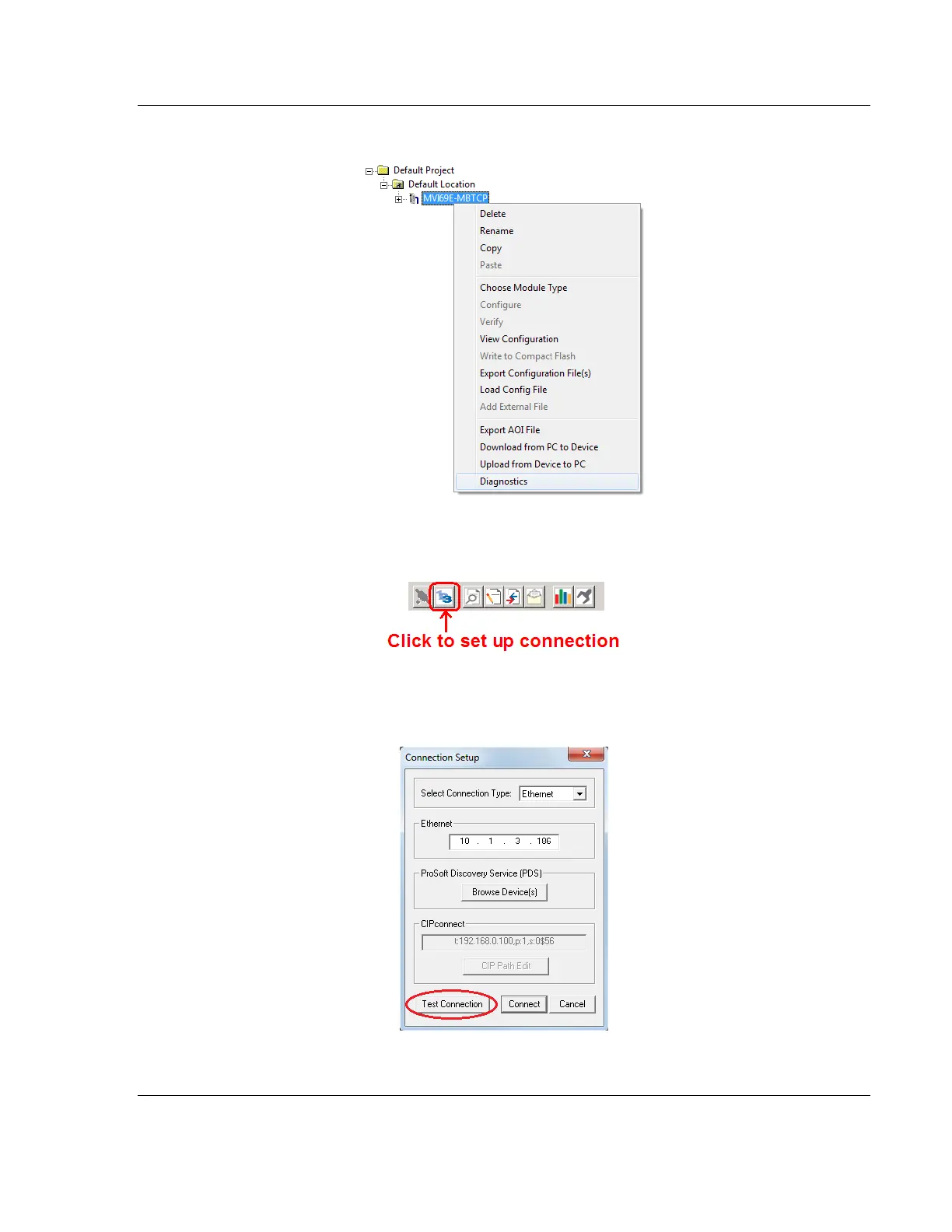

2 Right-click the module and choose DIAGNOSTICS.
3 After the Diagnostics window opens, click the SETUP CONNECTION button to
browse for the module’s IP address.
4 In the Ethernet field of the Connection Setup dialog box, enter the current IP
address, whether it is temporary or permanent. Click TEST CONNECTION to
verify that the module is accessible with the current settings.

ProSoft Technology MVI69E-MBTCP Specifications

General

Brand	ProSoft Technology
Model	MVI69E-MBTCP
Category	Control Unit
Language	English
