The second byte of DB1.DBW0 is the same as DB1.DBB1, and is the same as
the first byte of DB1.DBW1.

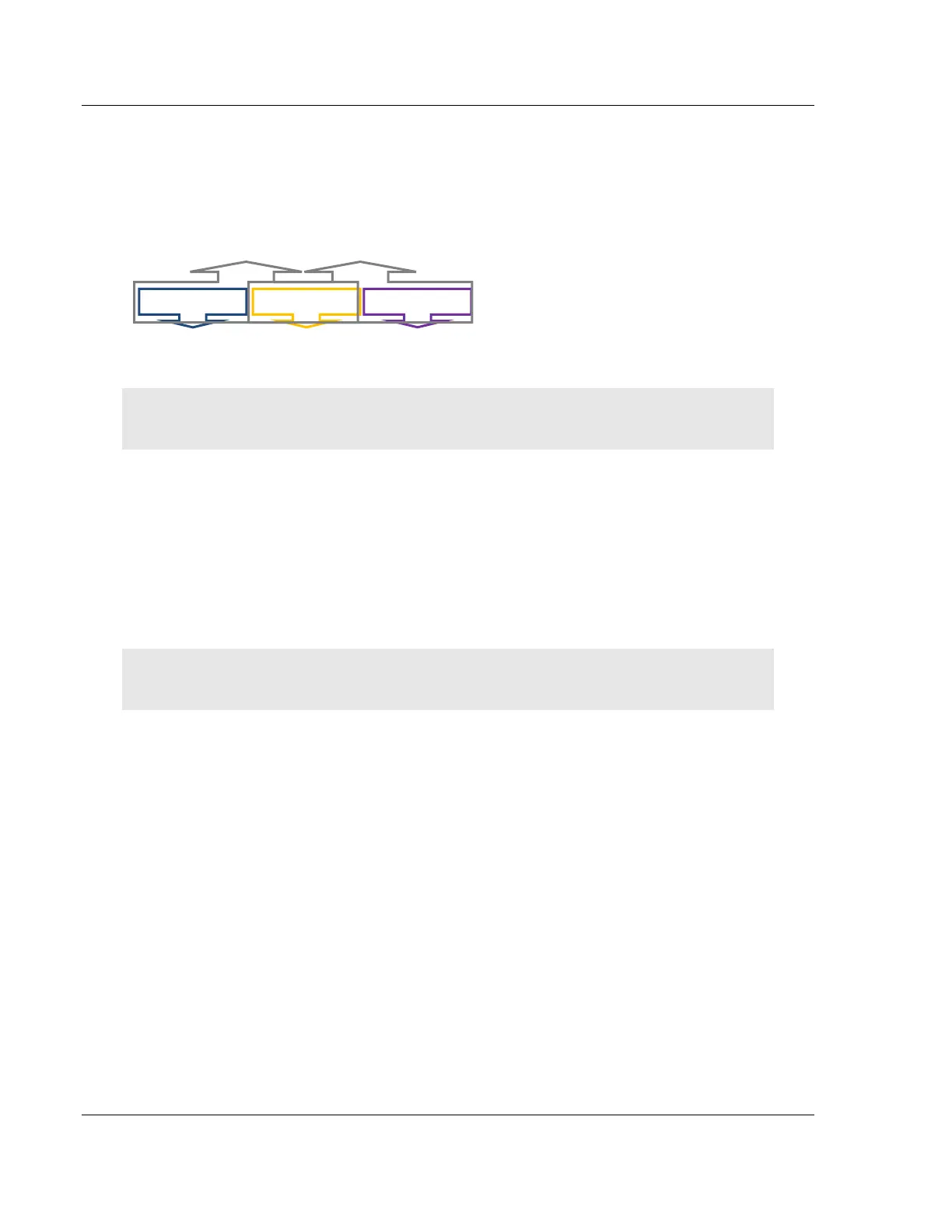

In reality, the memory space looks like below:
DB1.DBW0 DB1.DBW1
2#0010_1101 2#1101_0101 2#0101_0111
DB1.DBB0 DB1.DBB1 DB1.DBB2
Note: To access the first address of Data Block, Flag, Input, Output, Timer, and Counter memory
locations in the S7-300 and S7-1200 processors, use the following address syntax.
Data Block -> DB1.DBB0, DB1.DBW0, DB1.DBD0
Flag -> MB0, MW0, MD0
Input -> IB0, IW0, ID0
Output -> QB0, QW0, QD0
Timers -> T0 – T65535
Counters -> C0 – C65535
Note: To access the first address of Data Block, Flag, Input and Output memory locations in the
S7-200 processor, use the following address syntax.
Data Block -> VB0, VW0, VD0
Flag -> MB0, MW0, MD0
Input -> IB0, IW0, ID0
Output -> QB0, QW0, QD0
