10.3 Step 7 Configuration
This procedure describes the tasks required to set up the module with Siemens
Step 7. It is important to note that the configuration parameters used during PCB
Configuration and download to the module must match parameters configured
here within this procedure.

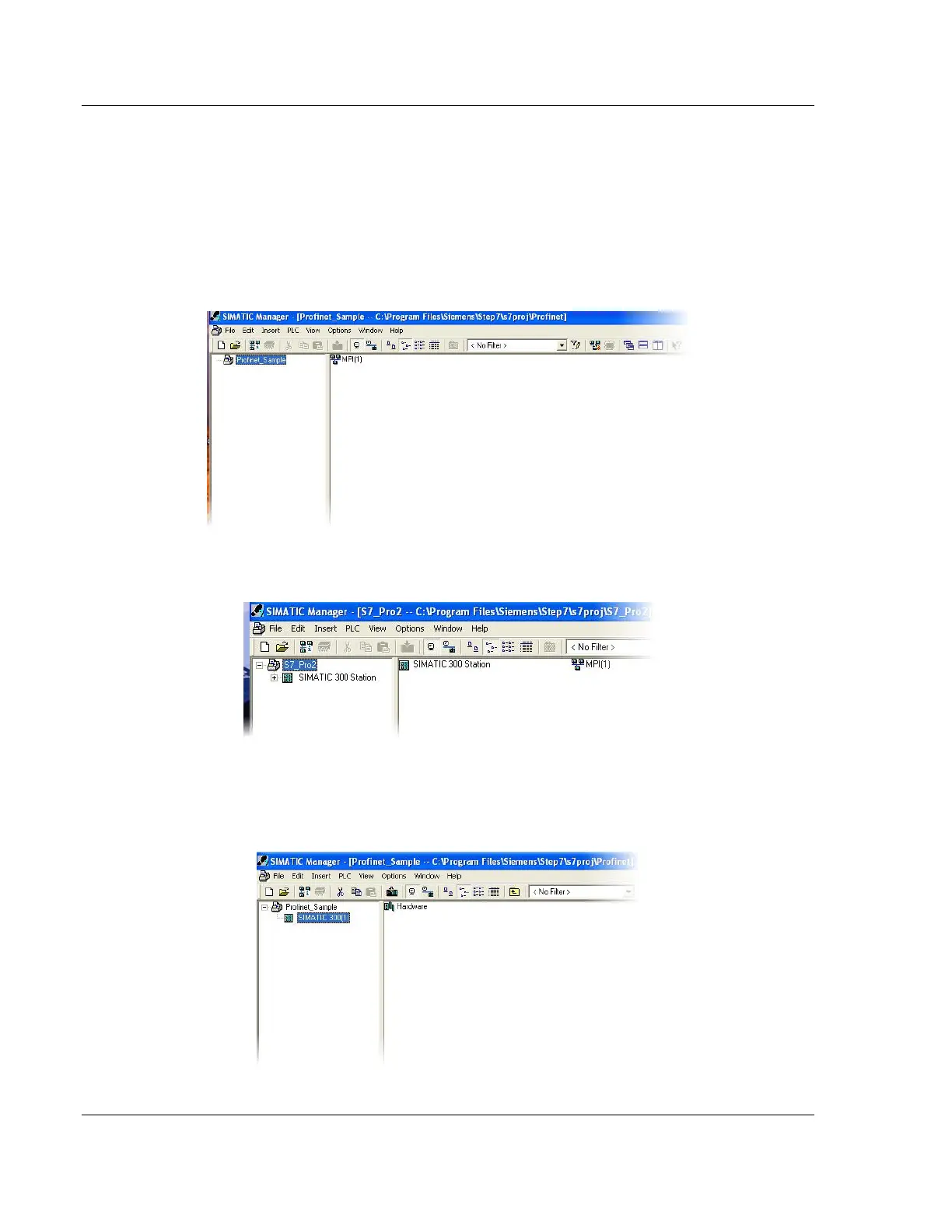

1 Start Step 7 software.
2 Create a new project. For example, Profinet_Sample.
3 Add a station to the project in which the network will be configured.
4 Click on the SIMATIC 300 station.
5 Configure the station by double-clicking the hardware icon under SIMATIC
300.
