PLX3x Series EIP Protocol
Ethernet and Serial Gateways User Manual
ProSoft Technology, Inc. Page 77 of 218
May 26, 2016
5.4 EIP Reference
5.4.1 SLC and MicroLogix Specifics
Messaging from a SLC 5/05
The gateway can be used to receive messages from a SLC 5/05 containing an
Ethernet interface. The gateway supports both read and write commands. A
discussion of each operation is provided in the following topics.
SLC5/05 Write Commands

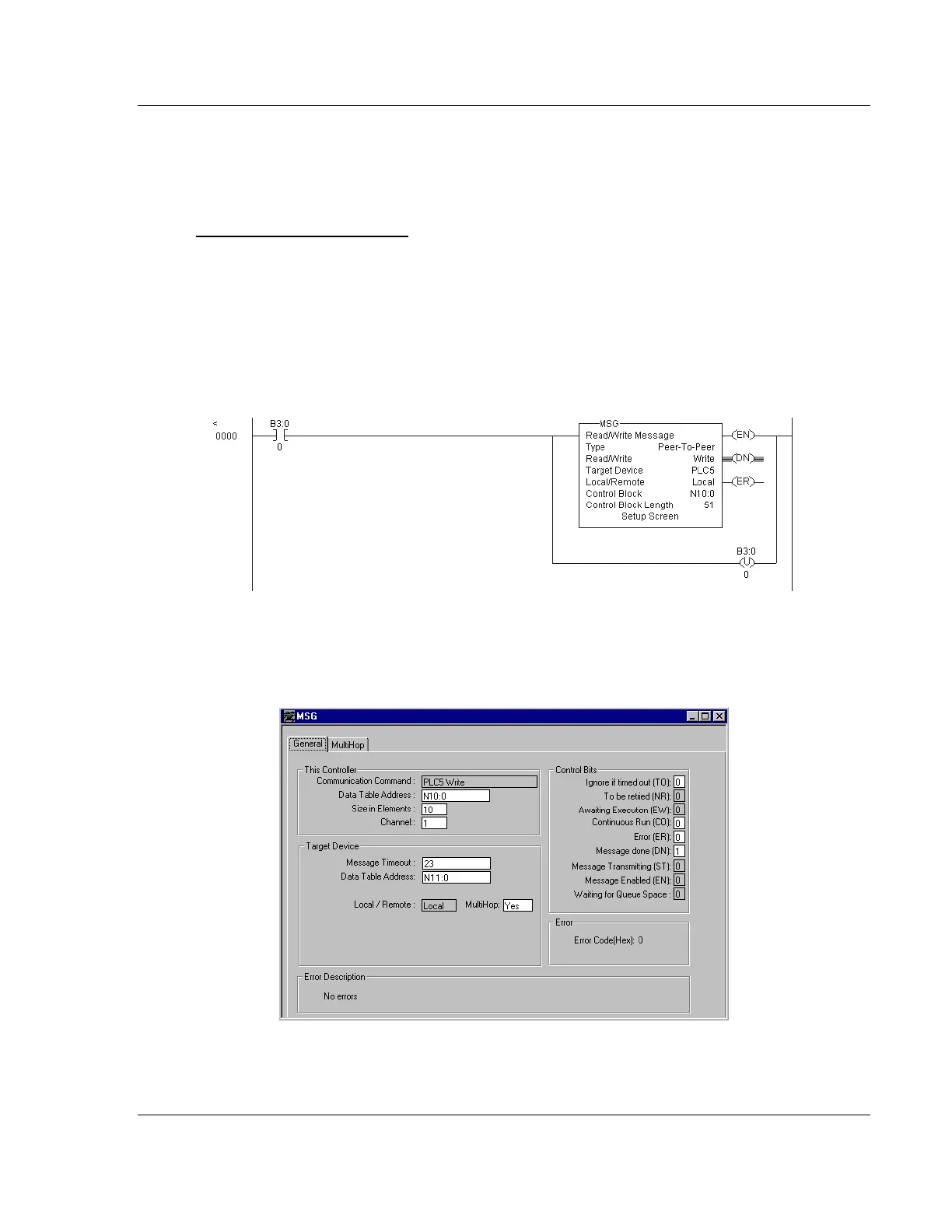

Write commands transfer data from the SLC processor to the gateway. An
example rung used to execute a write command is shown in the following
diagram:
Set the READ/WRITE parameter to WRITE. The gateway supports a TARGET
DEVICE parameter value of 500CPU or PLC5. In order to complete the
configuration of the MSG instruction, select the SETUP SCREEN area of the
MSG object. This displays the following dialog box.
