EIP Protocol PLX3x Series
User Manual Ethernet and Serial Gateways
Page 78 of 218 ProSoft Technology, Inc.
May 26, 2016

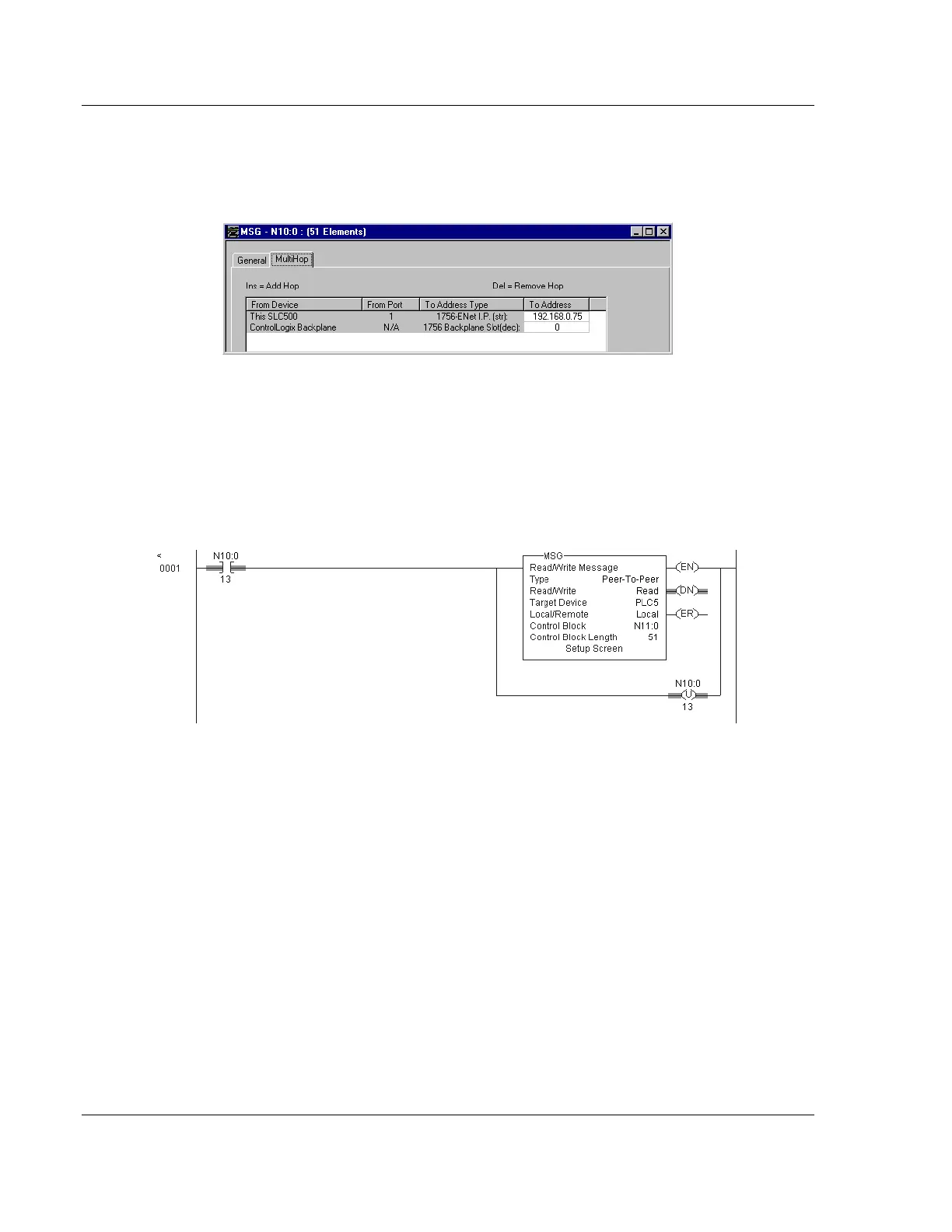

The TARGET DEVICE DATA TABLE ADDRESS must be set to a valid file
element (such as, N11:0) for SLC and PLC5 messages. The MULTIHOP option
must be set to YES. The MULTIHOP tab portion of the dialog box must be
completed as displayed in the following window:
Set the IP address value to the gateway’s Ethernet IP address. The "Insert" key
must be pressed to add the second line for ControlLogix Backplane and set the
slot number to zero.
SLC5/05 Read Commands
Read commands transfer data to the SLC processor from the gateway. An
example rung used to execute a read command is shown in the following
diagram:
