ProSoft Technology PLX3 Series User Manual

PLX3x Series PND Protocol
Ethernet and Serial Gateways User Manual
ProSoft Technology, Inc. Page 195 of 218
May 26, 2016

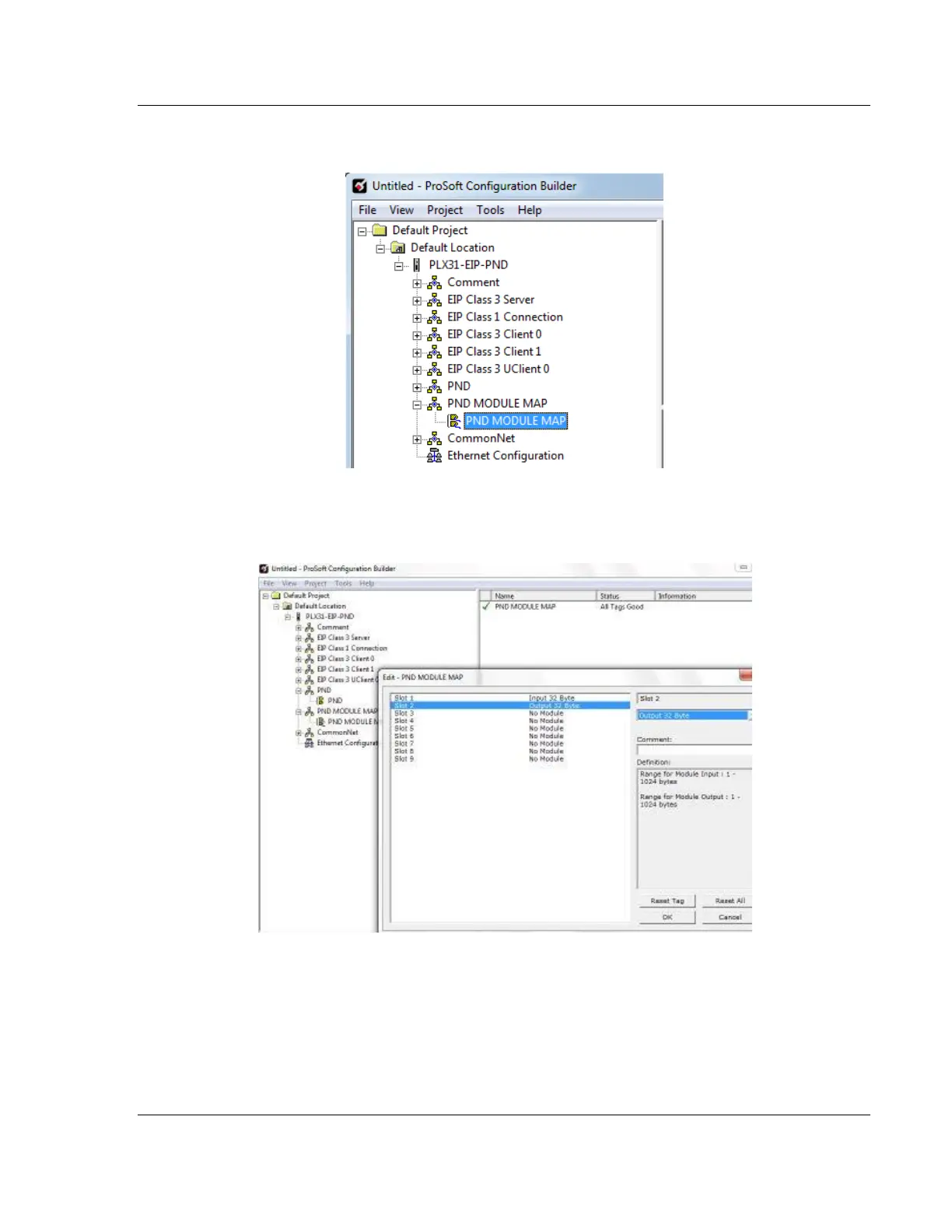

4. Expand PND MODULE MAP and double-click PND MODULE MAP to edit.
5. In this example, 32-bytes of input and 32-bytes of output will be used (a drop-
down list provides the range that could be used in each slot).
6. Select Slot 1.
7. Select the number of input bytes. In this example, select Input 32 Byte
from the drop down list.
