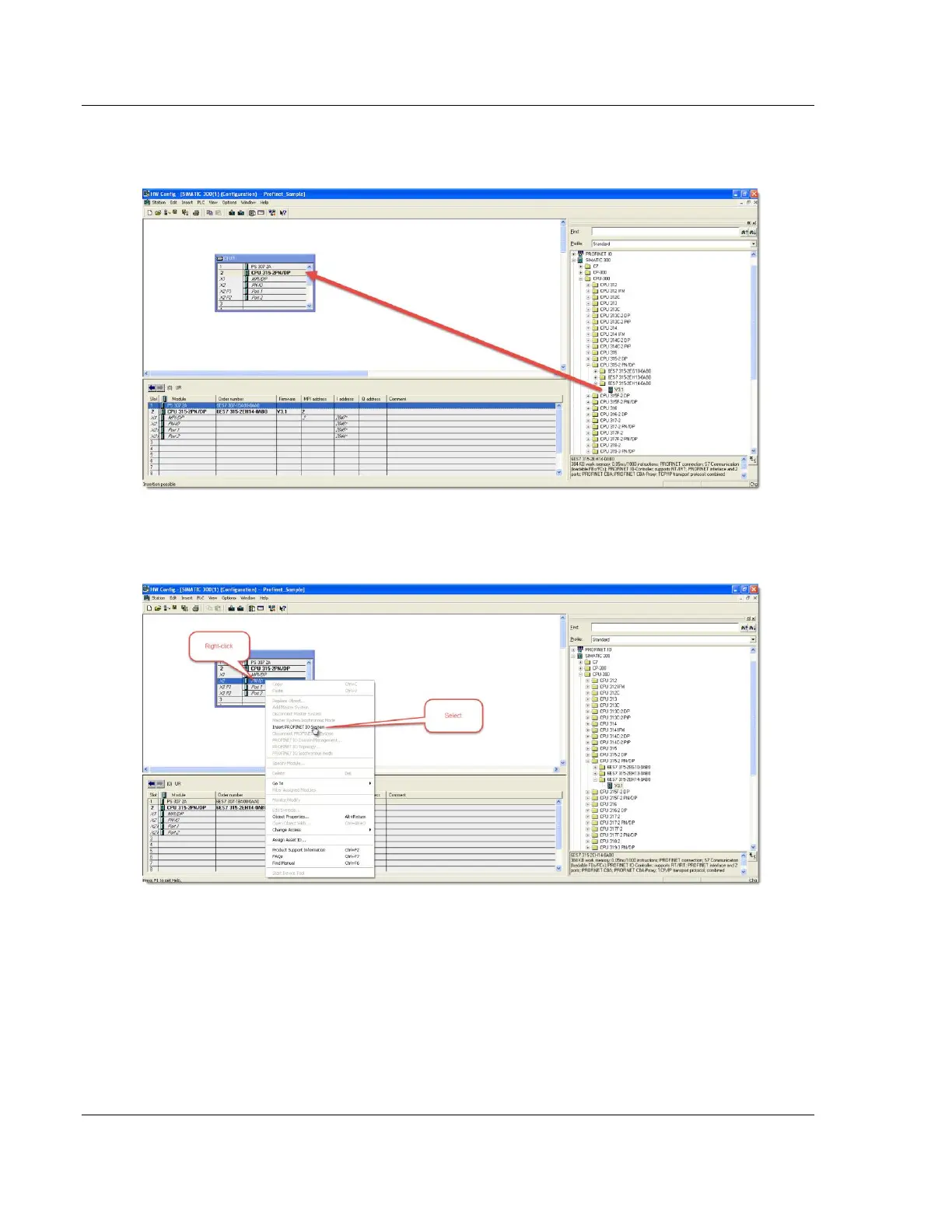

11 Drag and drop the processor to be used in the network. The example uses
315-2 PN/DP.
12 Right-click on the PN-IO option and select Insert PROFINET IO System.
