PLX3x Series PND Protocol
Ethernet and Serial Gateways User Manual
ProSoft Technology, Inc. Page 205 of 218
May 26, 2016

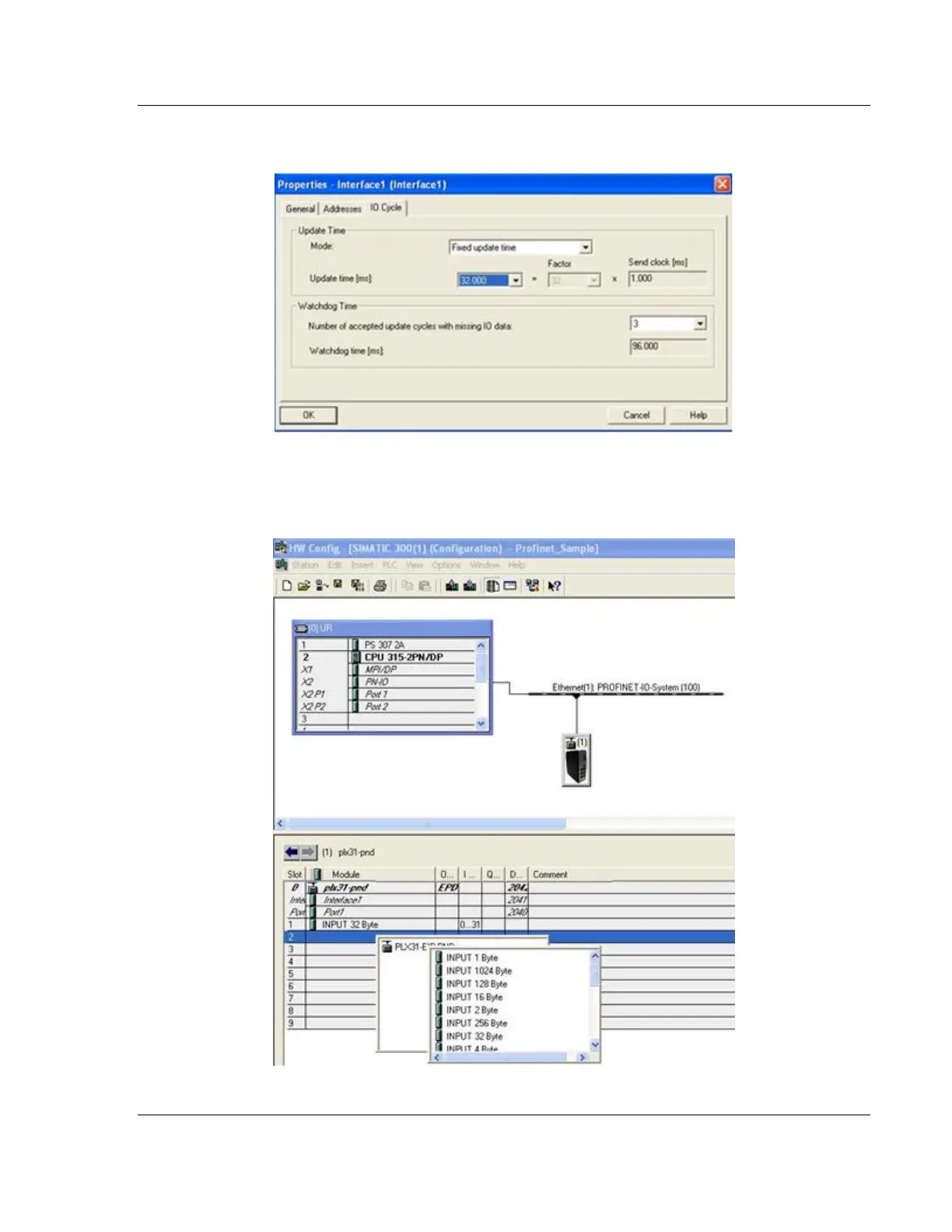

17 Configure the interface port for the ProSoft module as shown.
18 Configure the inputs and outputs to match the PCB configuration. The
example uses 32 inputs and 32 outputs.
