Appendix 3 Digilite® DL500 Control PCB Housing

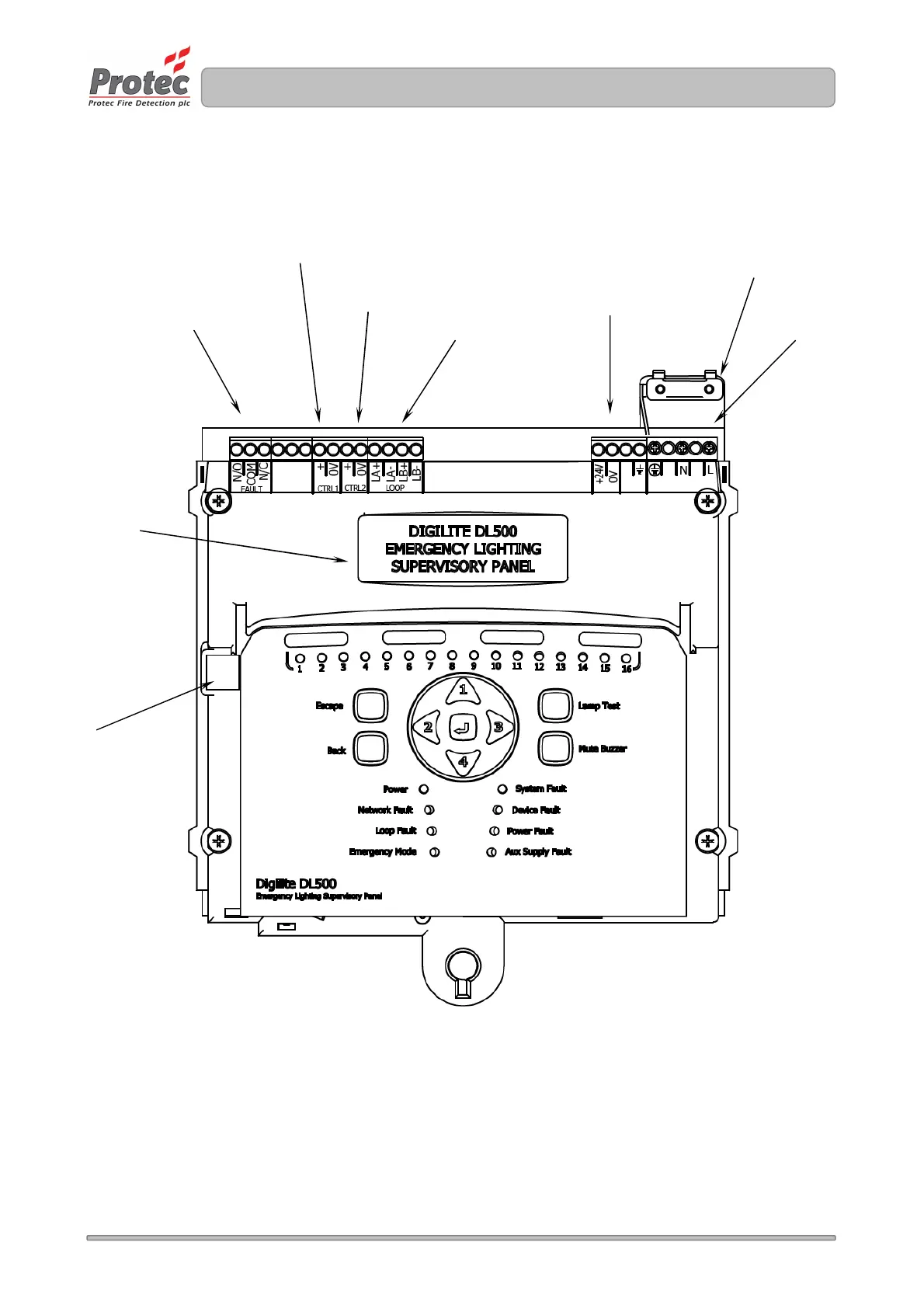

The diagram below shows the Digilite® DL500 Control PCB housing and highlights the main connections
and controls.
ac mains input
supply connections
Monitored
Auxiliary 24V
output
Addressable loop
connections
Control Input 2
Control input 1
Global fault
contacts
USB connection
for PC upload
and download
Mains cable
restraint
Multifunction
display
