Chapter 2 System Configuration
PA-6225 SERIES USER MANUAL
Page 19

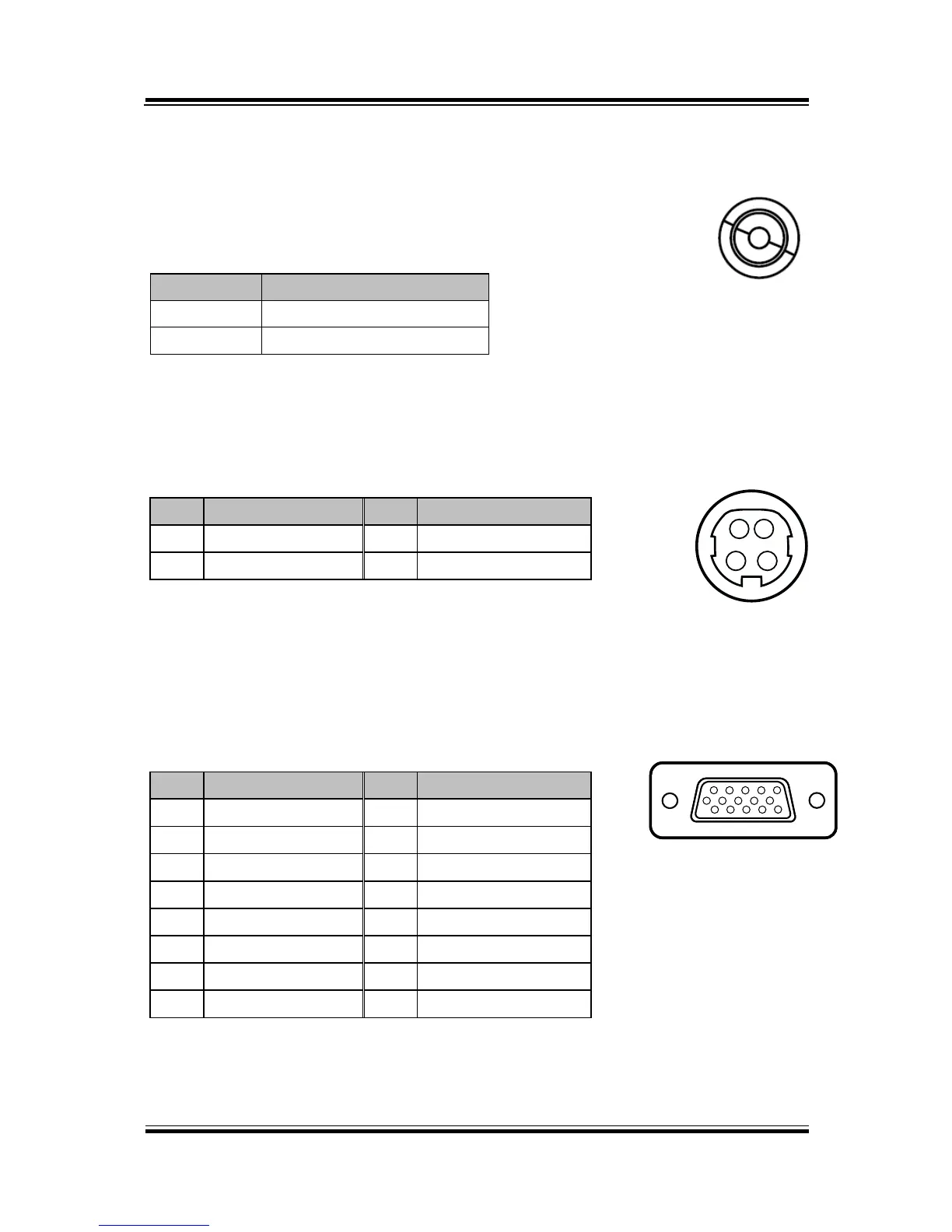

2-2. Power Button, Ports, Connectors and Jumpers
2-2-1. Power Button
To turn on the system, press the power button on the side
of the system briefly.
ACTION
ASSIGNMENT
Press
0V
Release
+3.3V
2-2-2. DC-IN Port
DC-IN: DC Power-In Port (rear I/O)
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
GND
2
GND
3
+24V
4
+24V
2-2-3. VGA Port
VGA1: VGA Port, D-Sub 15-pin (rear I/O)
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
RED
9
+5V
2
GREEN
10
GND
3
BLUE
11
NC
4
NC
12
DDCA DATA
5
GND
13
HSYNC
6
GND
14
VSYNC
7
GND
15
DDCA CLK
8
GND
-
-
3 4
1 2
DC-IN
Power
Button
1 5
6 10
11 15
VGA1
