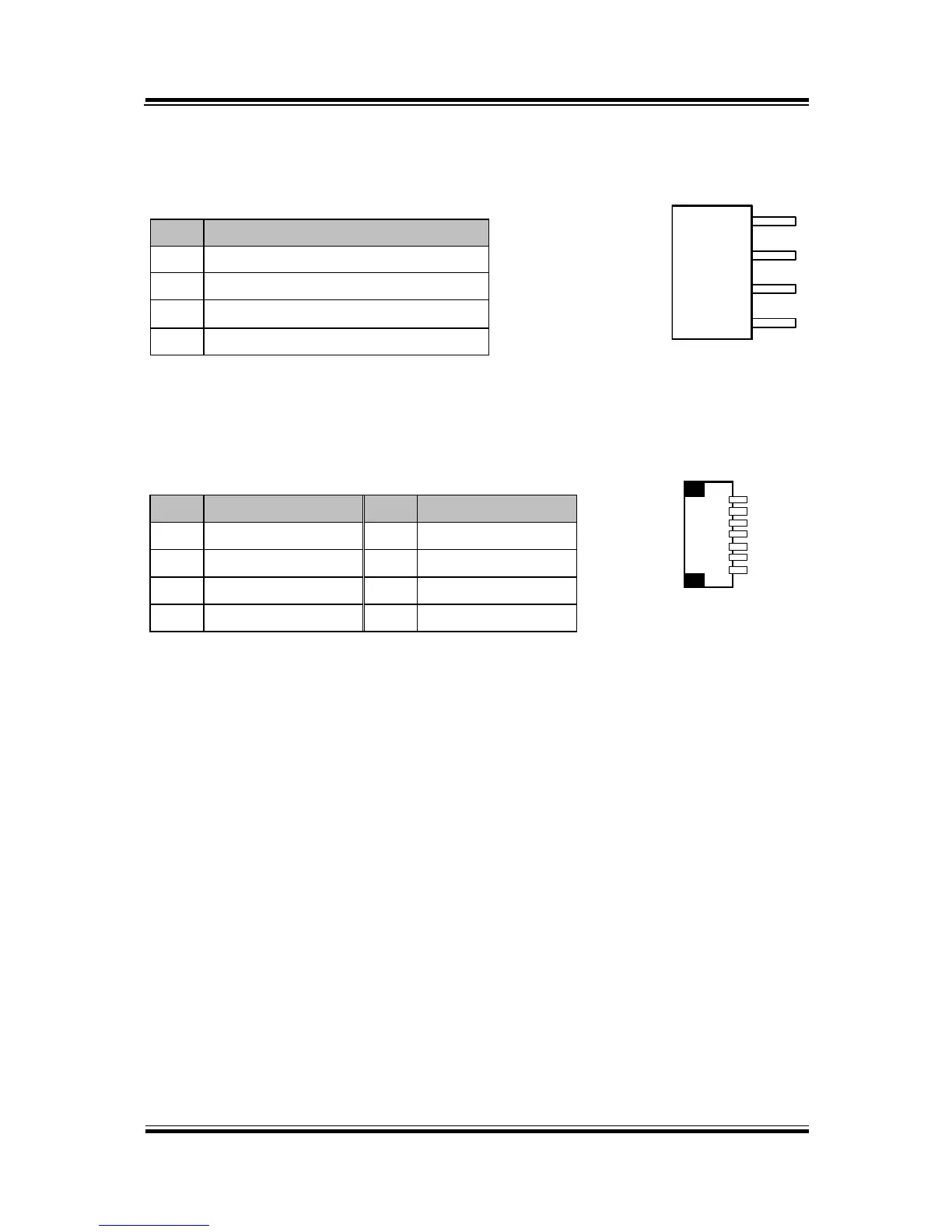

2-5-1-1. Power Supply Connector
CN1: Power supply wafer
PIN
ASSIGNMENT
1
+24V
2
+24V
3
GND
4
GND
2-5-1-2. RS-232 Interface Connector
CN7: RS-232 interface connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
TXD
5
DTR
2
RXD
6
DSR
3
RTS
7
GND
4
CTS
-
-
4
1
CN1
1
7
CN7
