protech PA-6225 User Manual

Chapter 2 System Configuration
PA-6225 SERIES USER MANUAL
Page 21

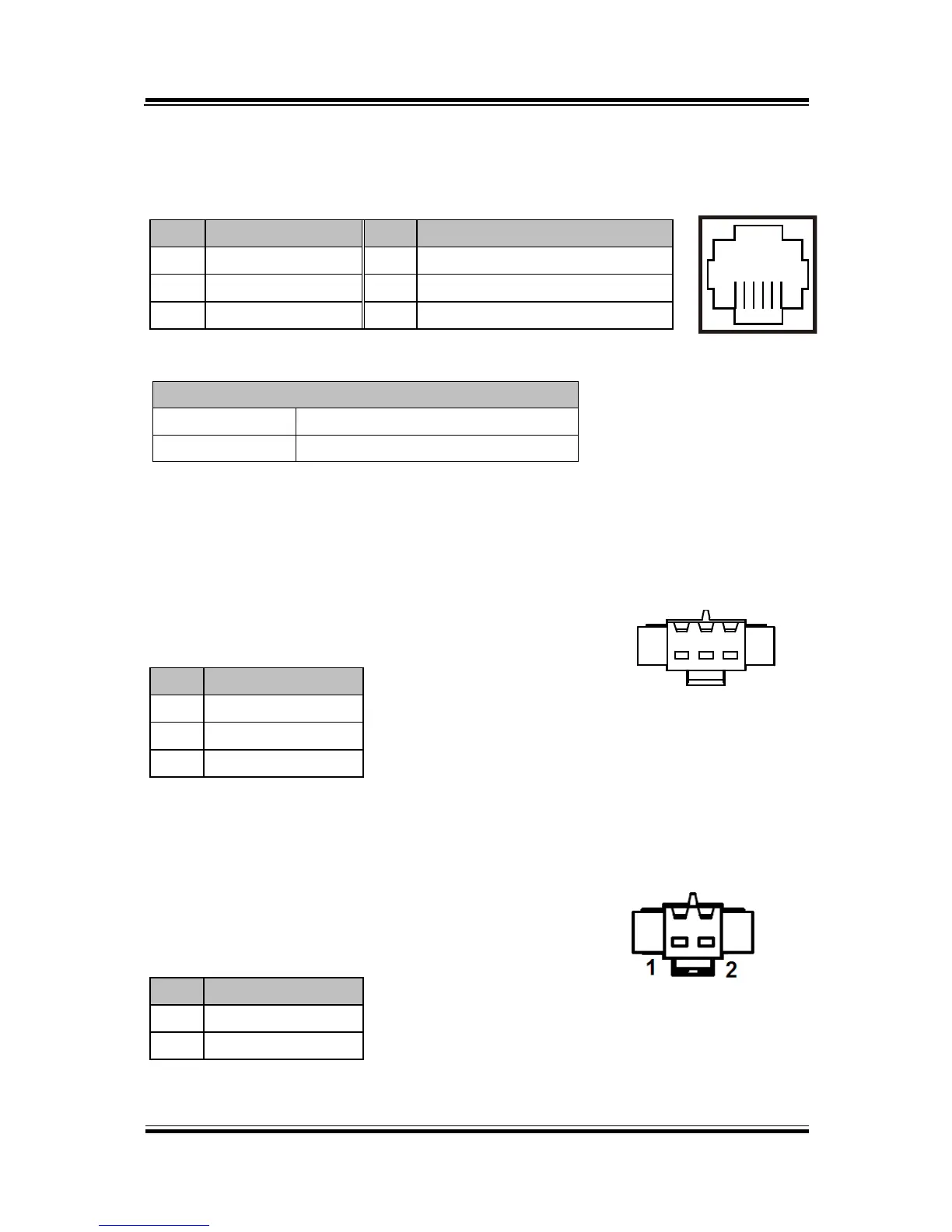

2-2-6. Cash Drawer Port
DRW1, DRW1-1, DRW1-2: Signal from M/B GPIO (rear I/O)
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
GND
4
+12V/+24V (Max. current: 1A)
2
Drawer Open
5
NC
3
Drawer Sense
6
GND
SIO Address
Cash drawer 1
LDN 06, 0x91 bit 1
Cash drawer 2
LDN 06, 0x91 bit 3
2-2-7. 2
ND
Display Power Port (Optional)
DIS PWR: Second Display Power port (Rear I/O)
PIN
ASSIGNMENT
1
+12V
2
GND
3
+12V
2-2-8. RAID Power Port (Optional)
RAID PWR: RAID Power port (Rear I/O)
PIN
ASSIGNMENT
1
GND
2
+5V
16
DRW1
1 3
DIS PWR
RAID PWR
