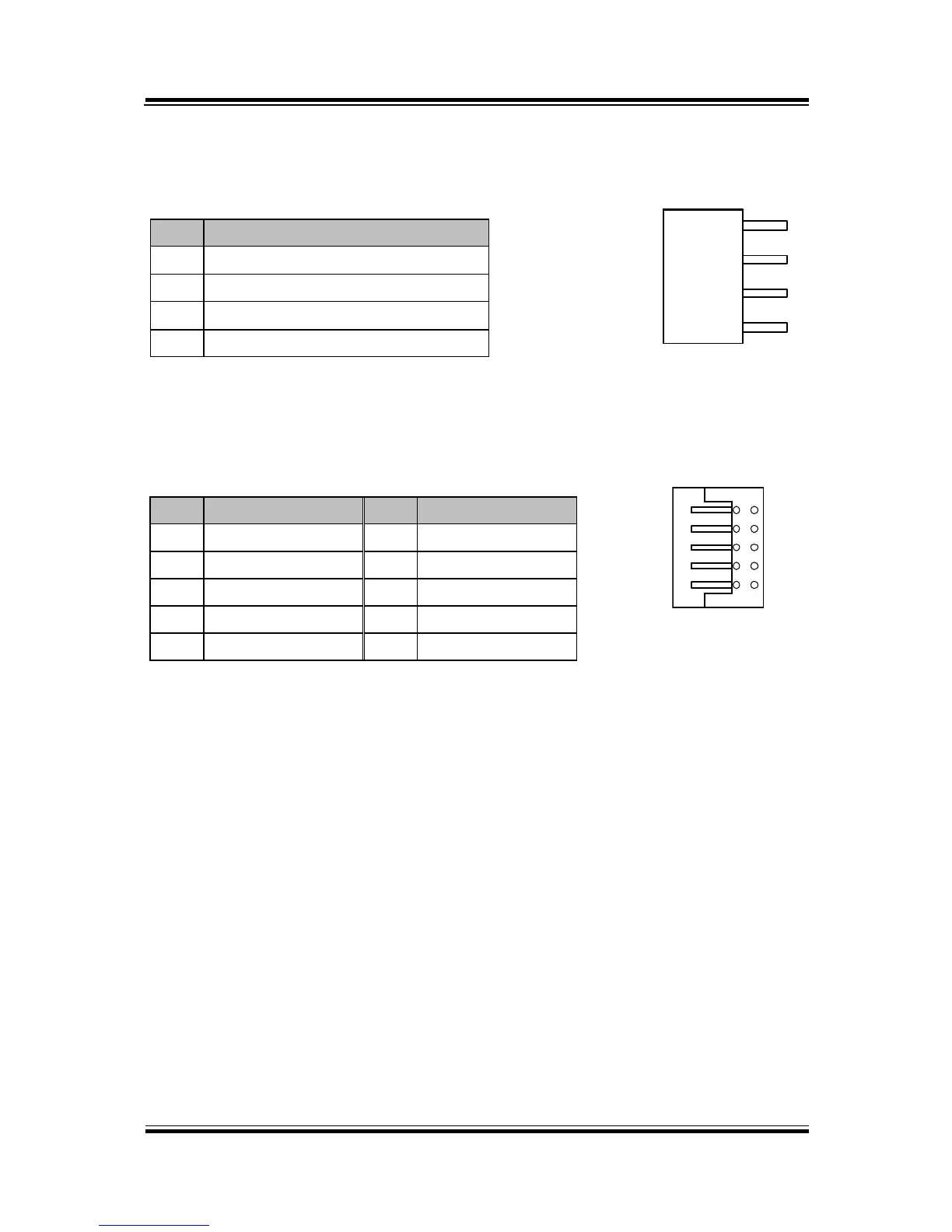

Chapter
2
System
Configuration
PA
-6225
SERIES
US
ER MANUAL
Page
49
2-5-2-
1.
Power Supply Connector
24V_
CN1
:
Power Supply Wafer
PIN
ASSIGNMENT
1
GND
2
GND
3
+
24V
4
+
24V
2-5-2-
2.
RS
-
232 I
nterface Connector
COM
1:
RS
-232
Interface Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
NC
6
DSR /CTS
2
RXD
7
RTS
3
TXD
8
CTS
4
DTR /RT
S
9
NC
5
GND
10
NC
4
1
24V_CN1
1
9
10
2
COM1
55
57
Table of Contents
Default Chapter
4
Table of Contents
4
Chapter 1 Introduction
9
About this Manual
9
POS System Specification
10
System Specifications
15
Safety Precautions
23
Chapter 2 System Configuration
25
System External I/O Port & Pin Assignment
25
Power Button, Ports, Connectors and Jumpers
26
Power Button
26
DC-IN Port
26
VGA Port
26
COM Ports
27
LAN Port
27
Cash Drawer Port (Optional)
28
2Nd Display Power Port (Optional)
28
RAID Power Port (Optional)
28
USB Ports
29
Printer Power Port (Optional)
29
UPS Power Port (Optional)
29
Mainboard Component Locations & Jumper Settings
30
How to Set Jumpers
31
COM Port RI & Voltage Selection
33
COM Connectors
34
I-Button Connector
34
I-Button Function Selection
34
Cash Drawer Control Selection
35
Cash Drawer Power Selection
39
USB Connectors
40
LED Connectors
40
Power for Thermal Printer Connector
40
Power Connectors
41
External Speaker Connectors
41
Inverter Connectors
41
Power Button Connectors
42
LED Backlight Power Control Selection
42
LED Backlight Power Connector
43
Panel Resolution Selection
43
LVDS Connector
44
Touch Panel Connectors
44
Touch Panel Signal Interface Selection
45
Clear CMOS Data Selection
45
Msr/Card Reader Connectors
46
SATA & SATA Power Connectors
46
Printer Connector
47
Mini-Pcie / Msata Connector
48
Printer Board Component Locations & Pin Assignment
49
Printer Board: PDAC-3100
49
Power Supply Connector
50
Interface Connector
50
Auto-Cutter Connector
51
USB Connector
51
Thermal Head/Motor/Sensor Connector
52
Terminal Assignment Connector
54
Printer Board: MB-1030
55
Power Supply Connector
56
Interface Connector
56
Thermal Head/Motor/Sensor Connector
57
Auto-Cutter Connector
59
Paper-Near-END Sensor Connector
59
USB Interface Connector
60
Terminal Assignment Connector
60
Printer Board: MB-1011 & MB-1013
61
Power Supply Connector
62
Interface Connector
62
Thermal Head/Motor/Sensor Connector
63
Auto-Cutter Connector
65
USB Interface Connector
65
Terminal Assignment Connector
66
VFD Board Component Locations & Pin Assignment
67
VFD Board: MB-4103, LD720
67
Power Switch Selection
68
Serial Interface Connector
68
MSR Board Component Locations & Pin Assignment
69
ID-Tech
69
Main Connector
69
Sysking
70
Main Connector
70
Mb-3012
71
Information Button Reader
71
Output Connector
71
Chapter 3 Software Utilities
73
Driver
73
Introduction
73
Intel® Chipset Software Installation Utility
74
VGA Driver Utility
75
LAN Driver Utility
75
Sound Driver Utility
76
Touchscreen Driver Utility
76
Fingerprint Driver Utility
77
RFID Module Driver Utility (Optional)
77
Wireless Module Driver Utility (Optional)
78
For Intel Trusted Execution Engine Interface (TXE)
78
Peripheral Devices
79
Printer Board: MB-1030
79
Commands List
82
Vfd: Mb-4103 (Rs-232)
134
MSR: MB-301X (USB)
140
Msr: Giga-Tms Mjr243 (Rs-232)
148
Api
151
API Package Content
151
API Procedure
152
Sample Code
154
Cash Drawer
157
API Function
158
Cash Drawer Function
159
BIOS Operation
160
Introduction
160
Accessing Setup Utility
162
Main
165
Advanced
167
Chipset
192
Security
199
Boot
200
Save & Exit
203
Watchdog Timer Configuration
205
BIOS Update Instructions
208
System Resource Map
212
Chapter 4 System Diagrams
227
Exploded Diagrams for Panel PC
228
Exploded Diagrams for Stand
241
Exploded Diagrams for Peripheral Devices
273
Exploded Diagrams for Packing
279
