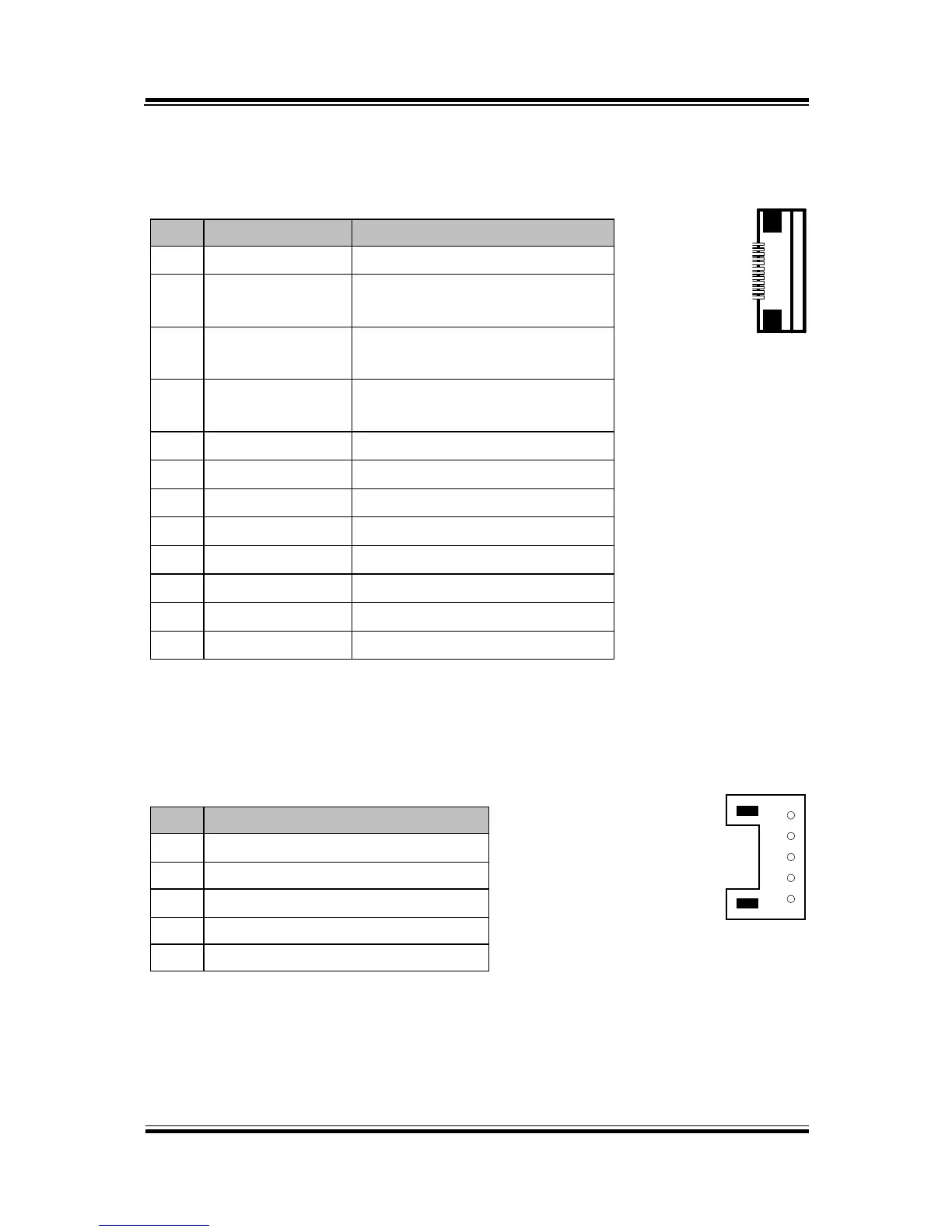

2-5-3-4. Auto-Cutter Connector
CN3: Auto-cutter Connector
PIN
ASSIGNMENT
FUNCTION
1
NC
Unused
2
Vcs
Power supply of the Home
position sensor
3
GND
GND of the Home position
sensor
4
CUTS
Signal of the Home position
sensor
5
2B-1
Auto-cutter motor drive signal
6
2B-2
Auto-cutter motor drive signal
7
2A-1
Auto-cutter motor drive signal
8
2A-2
Auto-cutter motor drive signal
9
1B-1
Auto-cutter motor drive signal
10
1B-2
Auto-cutter motor drive signal
11
1A-1
Auto-cutter motor drive signal
12
1A-2
Auto-cutter motor drive signal
2-5-3-5. USB Interface Connector
CN8: USB interface connector
PIN
ASSIGNMENT
1
Vbus
2
D-
3
D+
4
GND
5
GND
12
1
CN3
1
5
CN8
