protech PA-6225 User Manual

Chapter 2 System Configuration
PA-6225 SERIES USER MANUAL
Page 36

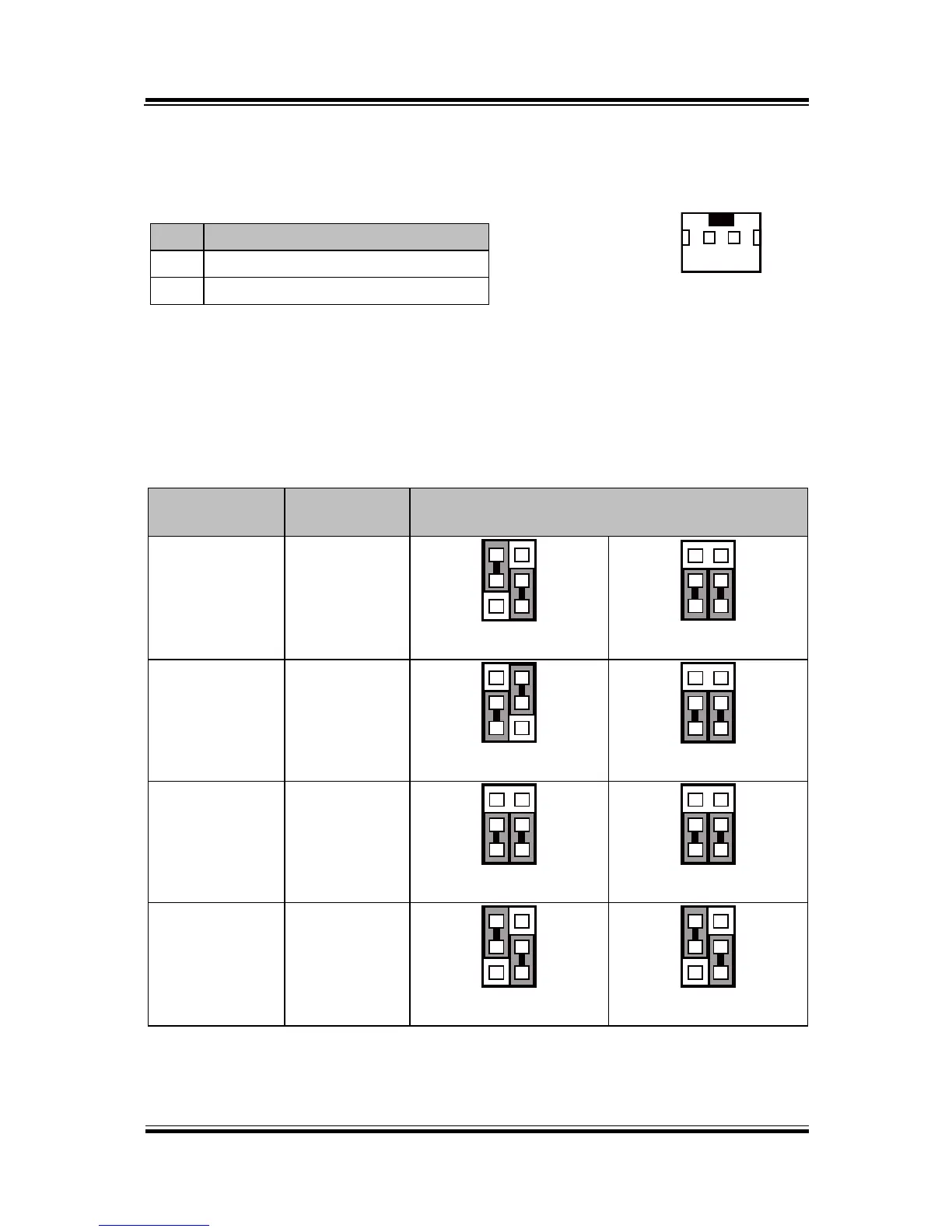

2-4-15. LED Backlight Power Connector
JINVDRV1: LED backlight power connector
PIN
ASSIGNMENT
1
VCC
2
GND
2-4-16. Panel Resolution Selection
JP8, JP9: Panel resolution control connectors
SELECTION
JUMPER
SETTING
JUMPER ILLUSTRATION
15”
1024 x 768
(24 bit)
JP8: 1-3, 4-6
JP9: 3-5, 4-6
21
65
JP8
21
65
JP9
10.4”
1024 x 768
(18 bit)
JP8: 3-5, 2-4
JP9:3-5, 4-6
21
65
JP8
21
65
JP9
10.4”
800 x 600
(18bit)
JP8: 3-5, 4-6
JP9: 3-5, 4-6
21
65
JP8
21
65
JP9
17”
1280 x 1024
(24bit Dual)
(Default)
JP8: 1-3, 4-6
JP9: 1-3, 4-6
21
65
JP8
21
65
JP9
12
JINVDRV1
