[2] To select the Manual scanning mode press the following key sequence:

(Select the Scan menu) (Select Manual Scan mode)

[3] The center frequency, Span, Step Frequency and reception mode are displayed in the lower

part of the LCD.

Note: The frequency span is not displayed in the 2 channel difference, Single or counter modes.

[4] To enter the Center/Market frequency the unit must not be Scanning (Run icon not highlighted)

(See pages 12 and 13)

[5] When the scanning is stopped the Market frequency indicator may be positioned over a

signal level of interest by pressing the keys or rotating the dial knob.

The position of the market may be moved by up to 160 channels.

(+80 channels to –80 channels)

[6] Pressing the key will highlight the RUN icon and scanning will start from left to right.

In the 2-channel mode the market/center frequency and the difference frequency are scanned

and displayed.

Note: Scanning is not available in the signal channel or counter mode.

[7] You can save 10 displays of up to 160 channels and their setups by storing them in the Data

and setup memory. These may be selected from the main menu.

(see pages 32 through 38)

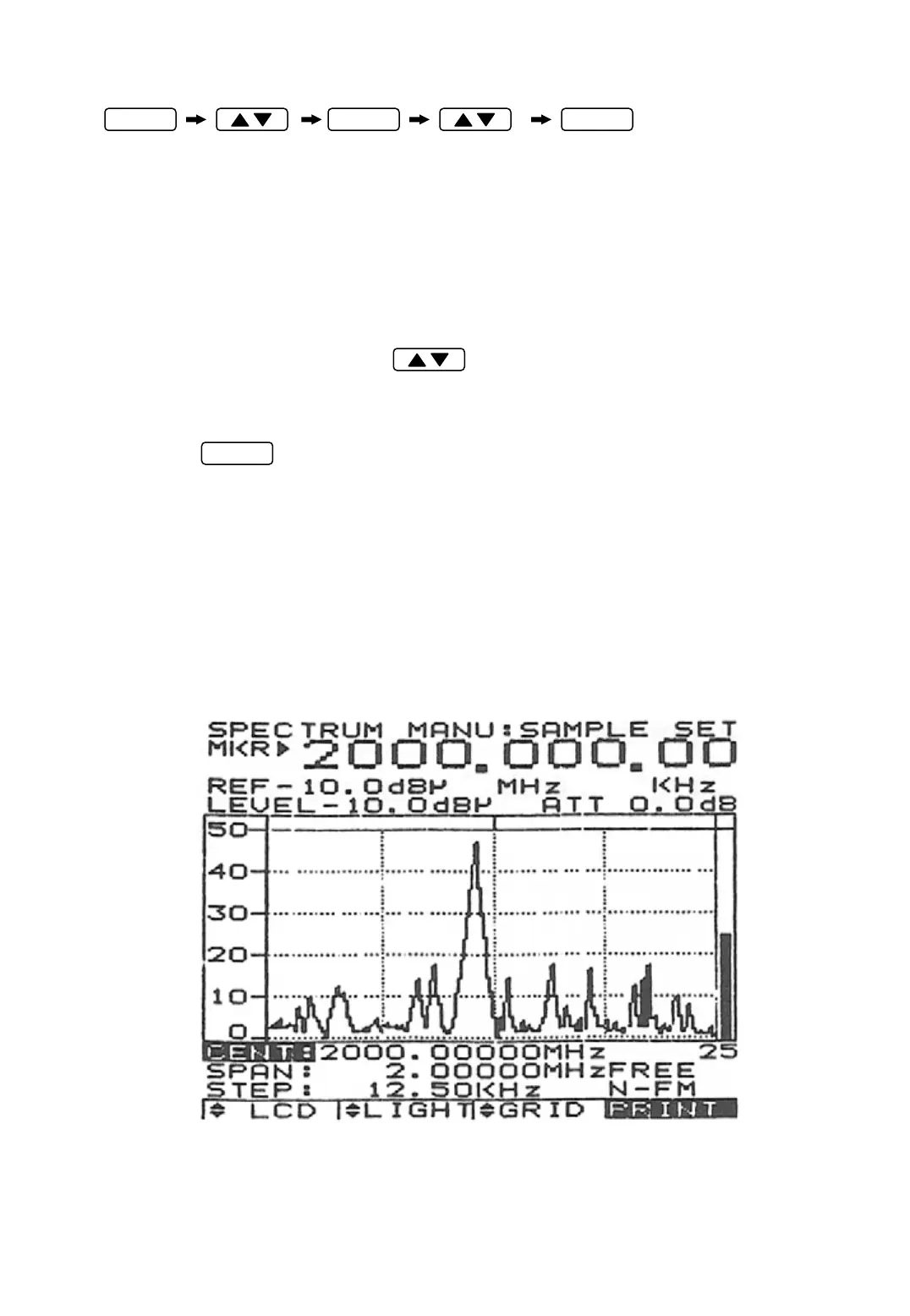

[8] Example of a manual scan display

MENU ENTER ENTER
