Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s
5
The gauge will send 3 strings in the following sequence to the Zebra ZM400 printer:
 String no.1: Reel number
 String no.2: Length
 String no.3: Average speed

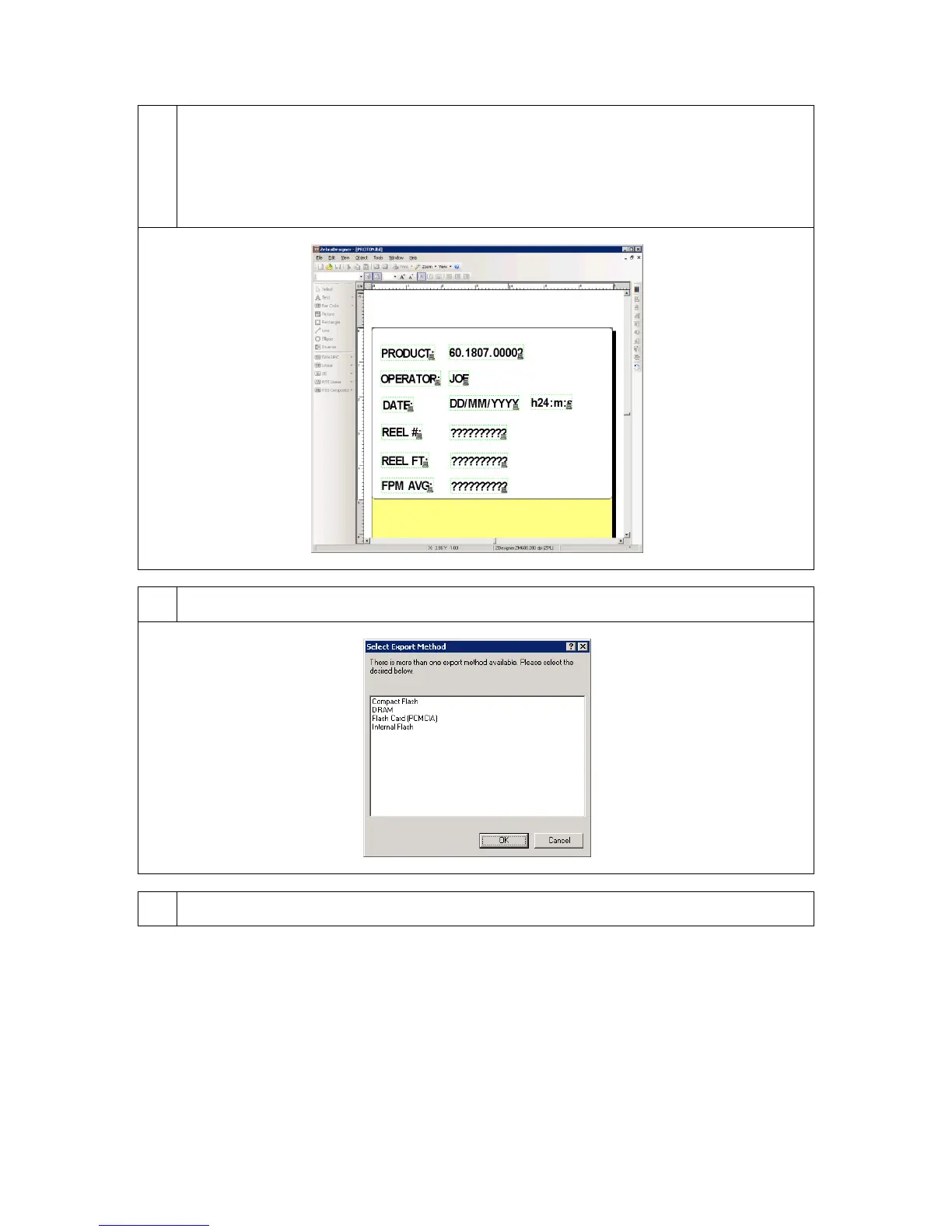

The label layout must be designed to accommodate the above 3 strings in sequence:
6
Export the “PROTON.lbl” file to the Zebra ZM400 printer by clicking “File → Export to Printer” in
the “Zebra Designer” software and then selecting “Internal Flash” and clicking the “OK” button:
7
The Zebra ZM400 printer may be triggered to print a ticket by activating the “End of Reel” logic
input on the SL / SLR mini gauge.
