Proton Products SL mini and SLR mini Series Speed and Length Gauges Instruction Manual - issue 1s
3

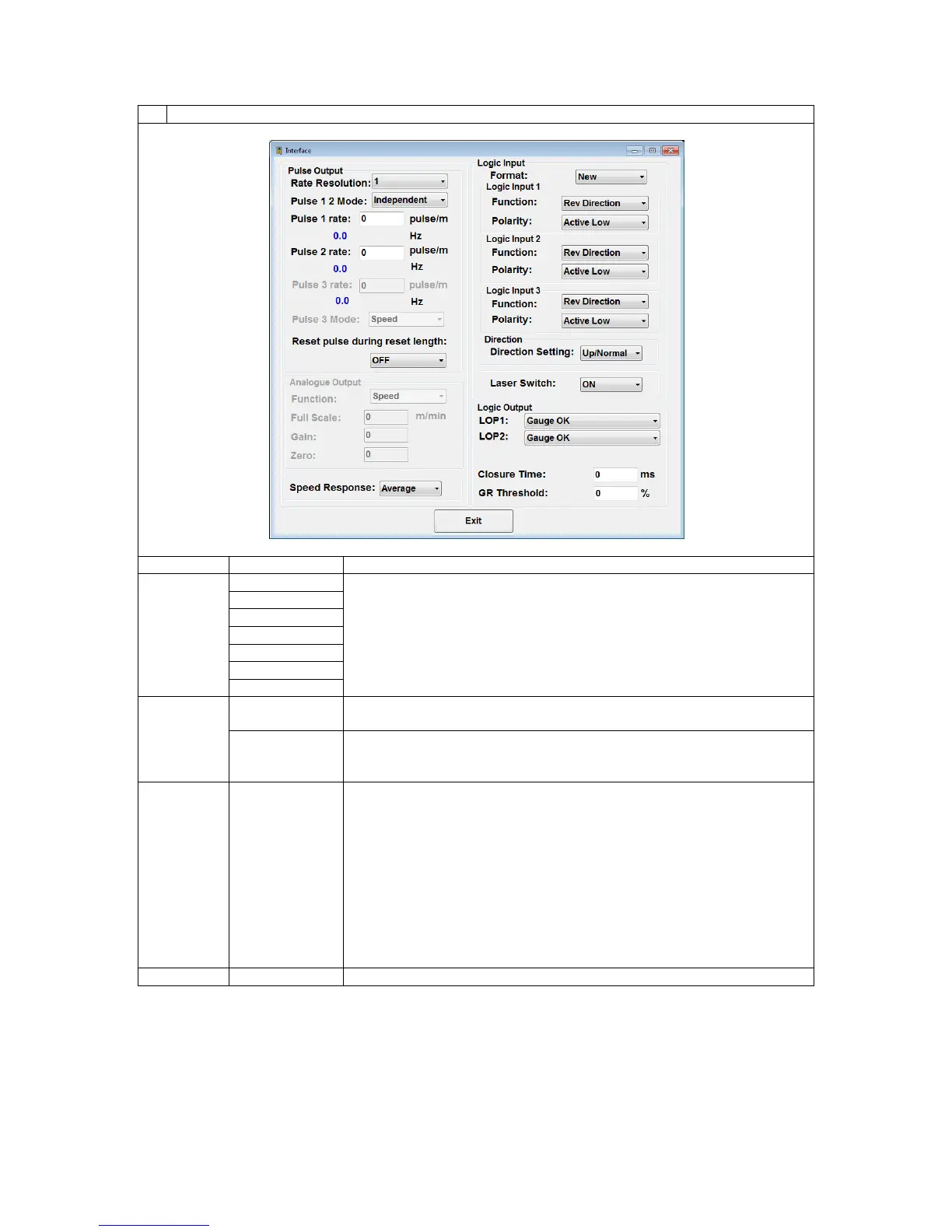

Configure the pulse output interface as required and click the “Exit” button when complete:
Label
Value*
Description
Pulse
Resolution
1000
Set the required pulse output resolution in pulses/ unit, where the unit
is the “Measurement unit” (metres, feet, inch or yards) set on the
“Measurement” page.
100
10
[1]
0.1
0.01
0.001
Pulse 1 2
Mode
[Independent]
Select “Independent” mode to configure “Pulse output 1” and “Pulse
output β” with separate and independent pulse rates.
Quadrature
Select “Quadrature” mode to couple together “Pulse output 1” and
“Pulse output β” as a quadrature pair, with pulse rate set under “Pulse
1 rate”.
Pulse 1
rate
1 ~
[1000]
~ 65535
Set the required pulse rate for “Pulse output 1” in pulses/unit, where
the unit is the “Measurement unit” (metres, feet, inch or yards) set on
the “Measurement” page.
Note: If the “Pulse Resolution” setting above is not suitable for the
pulse rate entered here, then the pulse rate will be automatically
rounded up or down.
When “Pulse 1 β Mode” is set to “Quadrature”, this parameter sets the
rate for the quadrature pulse output across both “Pulse output 1” and
“Pulse output β”.
