Page 10
Terminal Connection Details
Terminal Connection DetailsTerminal Connection Details
Terminal Connection Details

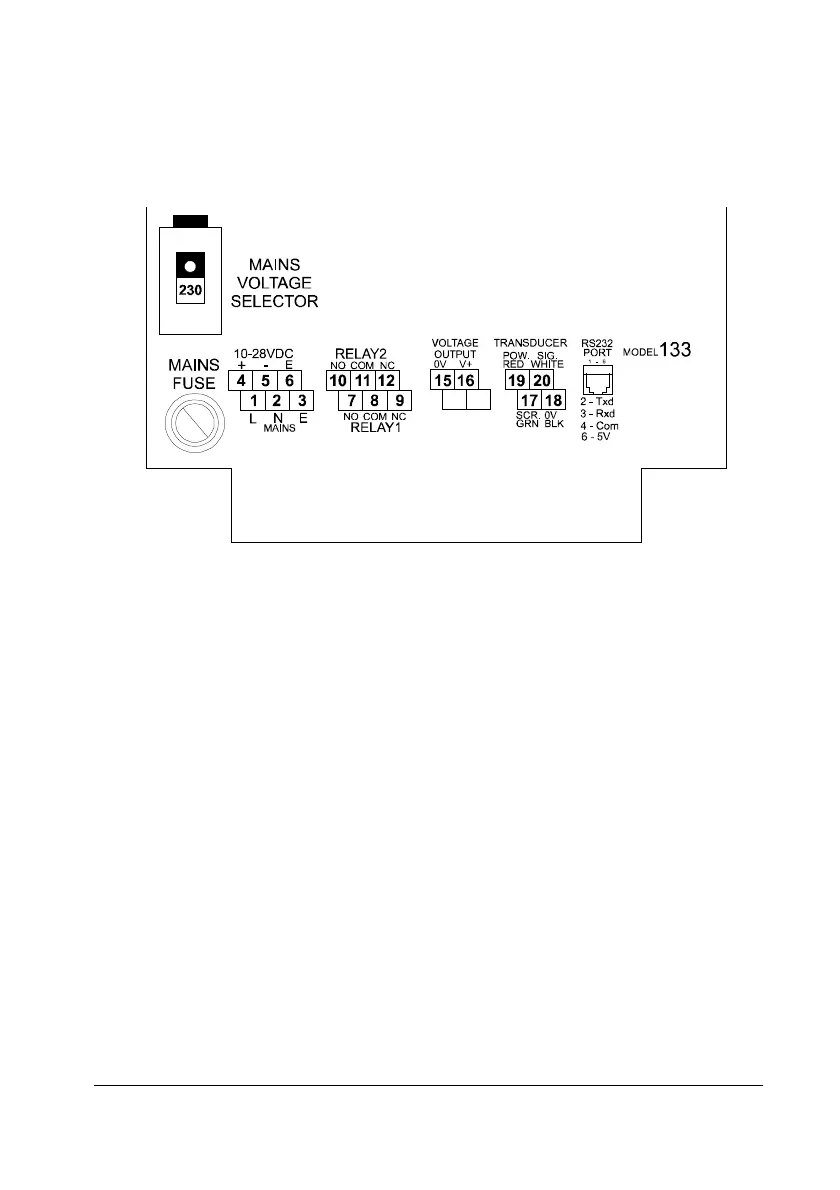

The terminal strip is as detailed below. There is also a wiring diagram
attached to the board directly underneath the terminal strip.
