Pulsar Blackbox User Manual

Page 16
Communication Port Configuration
If the PC Handheld Programmer fails to connect to the blackbox unit you may
need to change the communications port that is being used, to do this ‘right click’
on the PC Handheld Programmer keypad and a ‘pop up’ menu will appear
allowing you to select the appropriate communications port.
Handheld Communicator (Op
Handheld Communicator (OpHandheld Communicator (Op

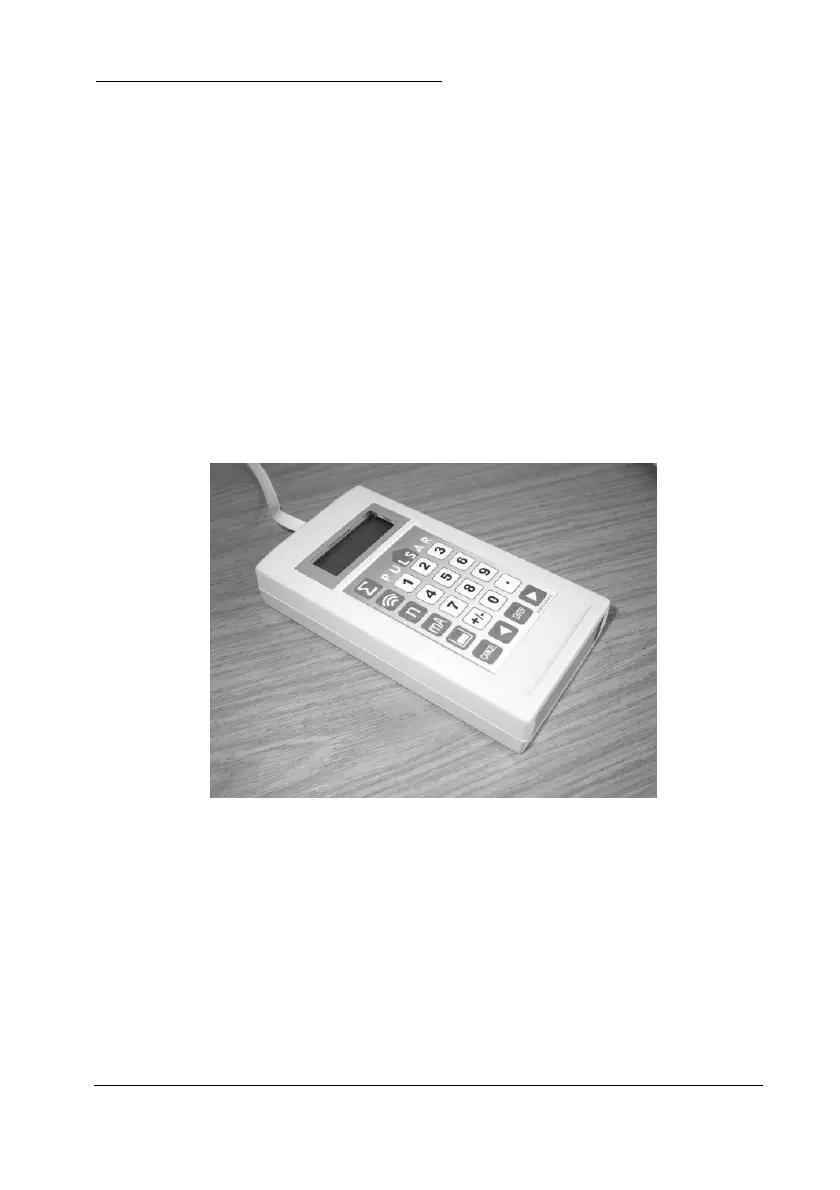

Handheld Communicator (Optional)
tional)tional)
tional)
The optional Handheld communicator can be used to programme any
number of blackbox units and works in a similar way to the PC Software.
Connect the Handheld Communicator, with the cable supplied, to the RS232
interface via the RJ11 connector located on the terminal connector, inside
the blackbox enclosure. Once connected you will briefly see a message,
similar to that as seen when using the PC Software which, after connecting
successfully, will then change to display the current measurement,
dependent on mode and measurement unit's chosen.
