DFM 6.1 INSTRUCTION MANUAL
38

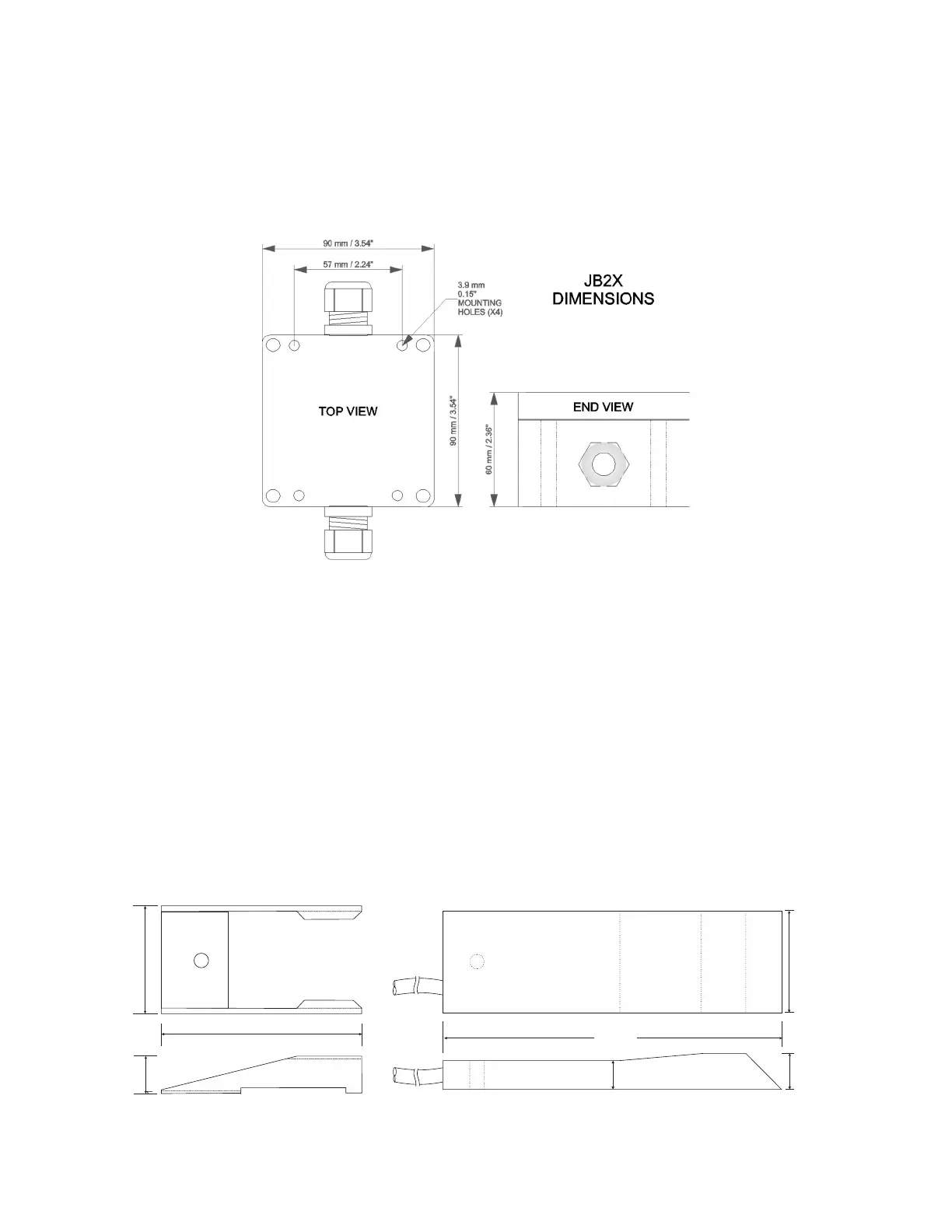

SENSOR CABLE JUNCTION BOX
(OPTION JB2X)
Optional Watertight steel NEMA4 Junction Boxes with terminal strips are available from Pulsar Measurement.
Velocity Sensor QZ02L-B (Optional)
Minimum Velocity: 0.1 ft/sec (0.03 m/sec)
Maximum Velocity: 20 ft/sec (6.2 m/sec)
Operating Temperature: 5 to 150°F (-15 to 65°C)
Exposed Materials: 316SS
Sensor Cable: 25 ft. (7.6 m) submersible polyurethane jacket, shielded, 3 coaxial
Hazardous Rating: CSA rated Intrinsically Safe Class I, Groups C,D, Class II, Groups E,F,G with
optional Intrinsic Safety Barrier
QZ02L-B VELOCITY SENSOR
25 ft (7.6 m)
Sensor Cable
5.0 0”
127 mm
1.50 "
38.1 mm
0.63"
16 mm
SIDE VIEW
0.50"
12.7 mm
1.62"
41.2 mm
0.56"
1
4.2 mm
3.00"
76.2 mm
MB-QZ - MOUNTING BRACKET
