PYE OLYMPIC M201 - Page 20

LEGEND
NOTE: 
These indicator numbers apply to all drawings shown in this
Installation Procedure
1.
Main Unit
7.
Microphone and Lead Assy.
2.
Antenna and Feeder Cable
(Includes Strain Relief Clamp)
3.
Loudspeaker Assy.
8.
Microphone Rest
4.
2-Way Connector Block
9.
Cradle Assy.
5. Fuse Box
10.
Cradle Extractor
6.
Vehicle Battery
11.
Blanking Plate (or Facility Module)
12.
Loudspeaker Lead

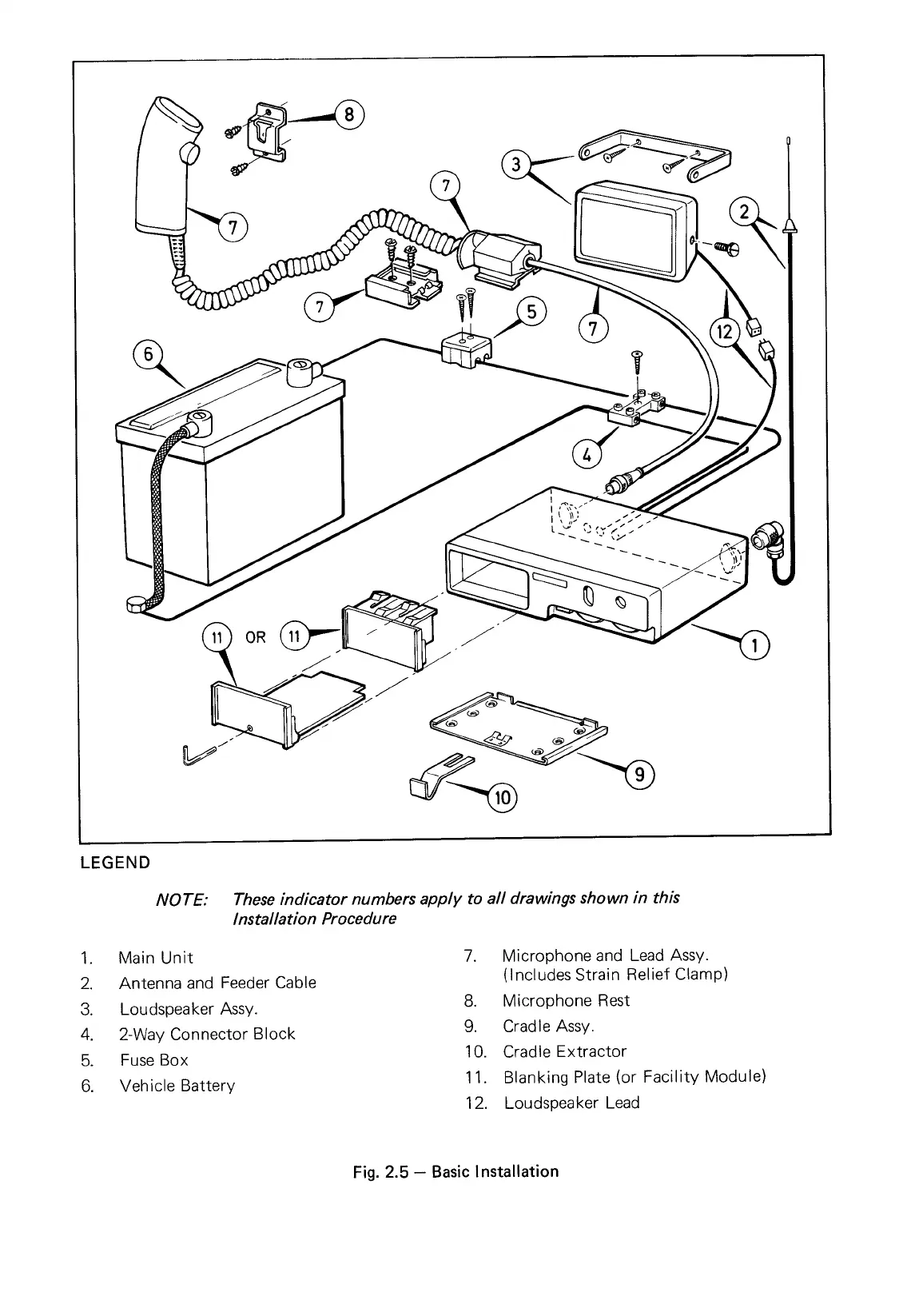

Fig. 2.5 — Basic Installation
