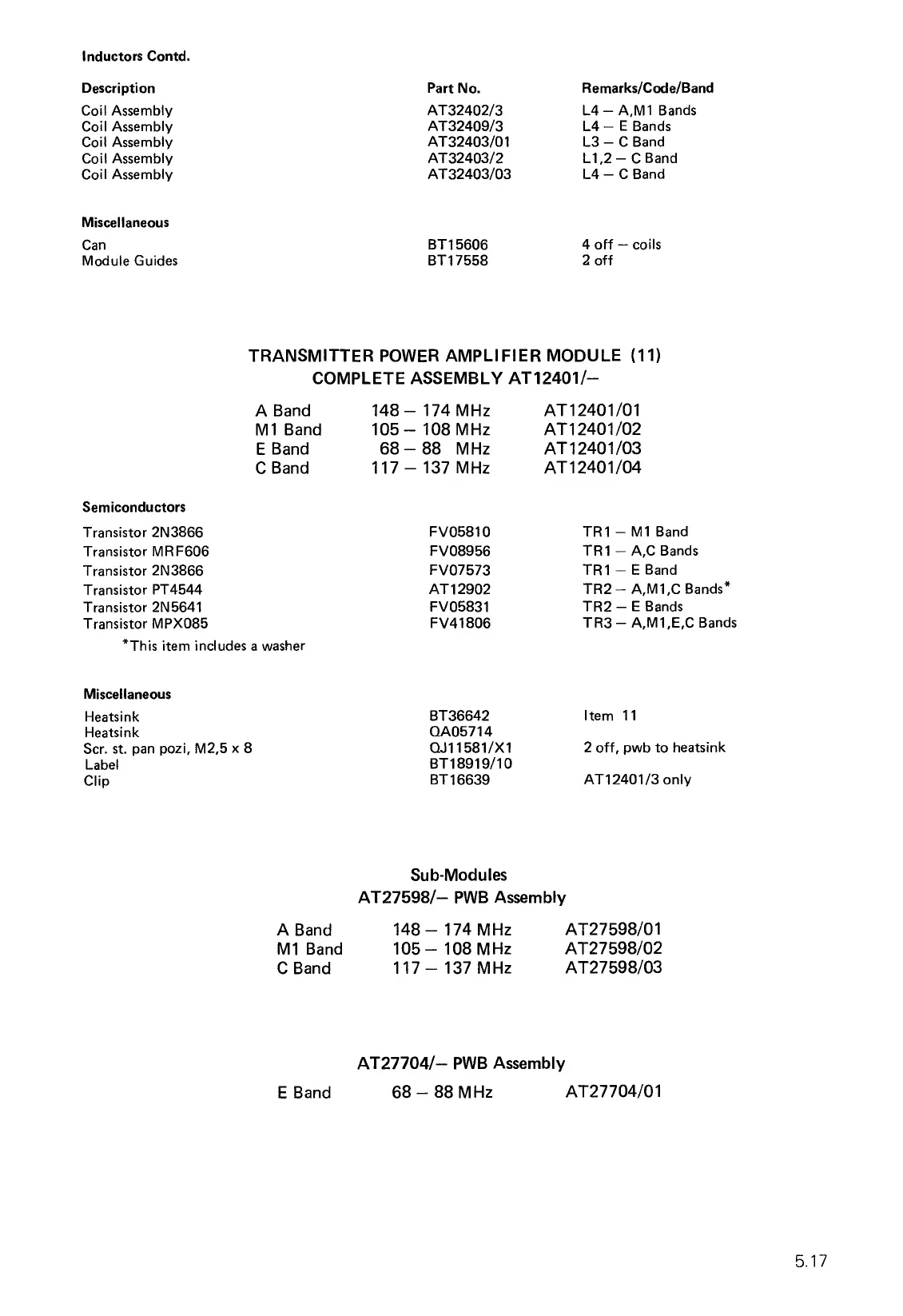

PYE OLYMPIC M201 - Page 82

Inductors Contd.
Description
Coil Assembly
Coil Assembly
Coil Assembly
Coil Assembly
Coil Assembly
Miscellaneous
Can
Module Guides
Part No.
AT3240
2 / 3
AT3240
9 / 3
AT32403/01
AT3240
3 / 2
AT32403/03
BT15606
BT17558
Remarks/Code/Band
L4 — A,M1 Bands
L4 — E Bands
L3 — C Band
L1,2 — C Band
L4 — C Band
4 off — coils
2 off
TRANSMITTER POWER AMPLIFIER MODULE (11)
COMPLETE ASSEMBLY AT12401/—
A Band
M1 Band
E Band
C Band
Semiconductors
Transistor 2N3866
Transistor MRF606
Transistor 2N3866
Transistor PT4544
Transistor 2N5641
Transistor MPX085
*This item includes a washer
Miscellaneous
Heatsink
Heatsink
Scr. st. pan pozi, M2,5 x 8
Label
Clip
148 — 174 MHz
105 — 108 MHz
68 — 88 MHz
117 — 137 MHz
FV05810
FV08956
FV07573
AT12902
FV05831
FV41806
BT36642
QA05714
QJ11581/X1
BT18919/10
BT16639
AT12401/01
AT12401/02
AT 12401/03
AT12401/04
TR1 — M1 Band
TR1 — A,C Bands
TR1 — E Band
TR2 — A,M1,C Bands*
TR2 — E Bands
TR3 — A,M1,E,C Bands
Item 11
2 off, pwb to heatsink
AT12401/3 only
Sub-Modules
AT27598/— PWB Assembly
A Band

148 — 174 MHz

AT27598/01
M1 Band

105— 108 MHz

AT27598/02
C Band

117 — 137 MHz

AT27598/03
AT27704/— PWB Assembly
E Band 
68 — 88 MHz

AT27704/01
5.17
