PYE OLYMPIC M201 - Page 83

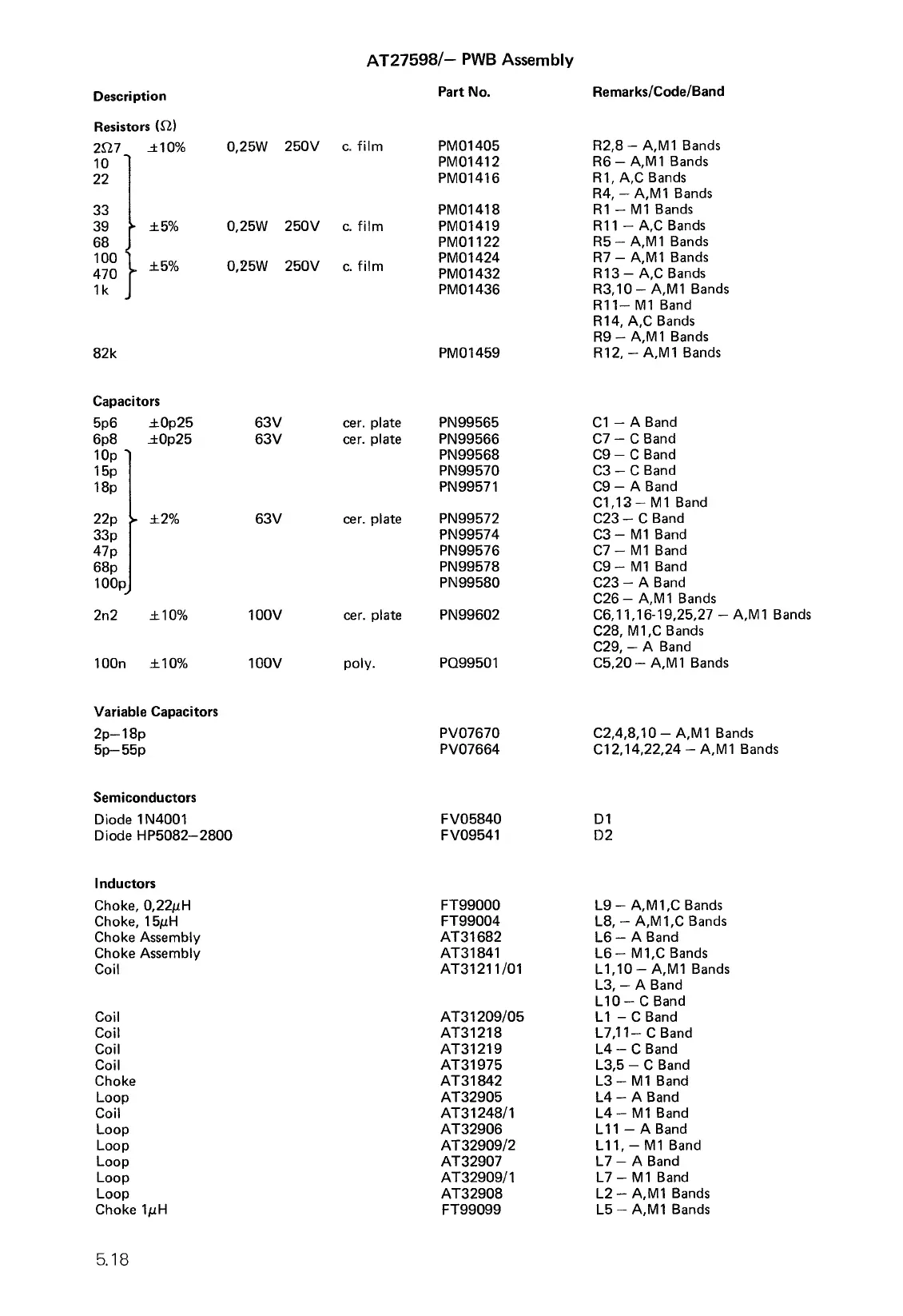

AT27598/- PWB Assembly
Description
Resistors (12)
Part No. Remarks/Code/Band
227 
10% 
0,25W
250V
c. film PM01405
R2,8 - A,M1 Bands
10
PM01412
R6 - A,M1 Bands
22
PM01416
R1, A,C Bands
R4, - A,M1 Bands
33
PM01418
R1 - M1 Bands
39
±5 % 
0,25W 250V c. film PM01419
R11 - A,C Bands
68
PM01122
R5 - A,M1 Bands
100
470
±5%  0,25W 250V c. film
PM01424
PM01432
R7 - A,M1 Bands
R13 - A,C Bands
1k PM01436
R3,10 - A,M1 Bands
R11- M1 Band
R14, A,C Bands
R9 - A,M1 Bands
82k
PM01459
R12, - A,M1 Bands
Capacitors
5p6 
±0p25  63V
cer. plate
PN99565 C1 - A Band
6p8  _.±0p25  63V cer. plate PN99566
C7 - C Band
10p
PN99568 C9 - C Band
15p
PN99570
C3 - C Band
18p
PN99571 C9 - A Band
C1,13- M1 Band
22p ±2%  63V cer. plate
PN99572 C23 - C Band
33p
PN99574
C3 - M1 Band
47p
PN99576
C7 - M1 Band
68p
PN99578
C9 - M1 Band
100p
PN99580
C23 - A Band
C26- A,M1 Bands
2n2  ±10%  100V
cer. plate PN99602
C6,11,16-19,25,27 - A,M1 Bands
C28, M1,C Bands
C29, - A Band
100n  ±10%  100V
poly. PQ99501
C5,20- A,M1 Bands
Variable Capacitors
2p-18p
PV07670 C2,4,8,10 - A,M1 Bands
5p-55p
PV07664 C12,14,22,24 - A,M1 Bands
Semiconductors
Diode 1N4001
FV05840 D1
Diode HP5082-2800
FV09541 D2
Inductors
Choke, 0,22pH
FT99000 L9 - A,M1,C Bands
Choke, 150 FT99004 L8, - A,M1,C Bands
Choke Assembly
AT31682
L6 - A Band
Choke Assembly AT31841 L6- M1,C Bands
Coil
AT31211/01 L1,10 - A,M1 Bands
L3, - A Band
L10 - C Band
Coil AT31209/05 L1 - C Band
Coil
AT31218 L7,11- C Band
Coil AT31219
L4 - C Band
Coil
AT31975 L3,5 - C Band
Choke AT31842 L3 - M1 Band
Loop
AT32905 L4 - A Band
Coil AT31248/1
L4 - M1 Band
Loop AT32906
L11 - A Band
Loop AT32909/2
L11, - M1 Band
Loop AT32907
L7 - A Band
Loop AT32909/1
L7 - M1 Band
Loop AT32908
L2 - A,M1 Bands
Choke 1pH
FT99099
L5 - A,M1 Bands
5.18
